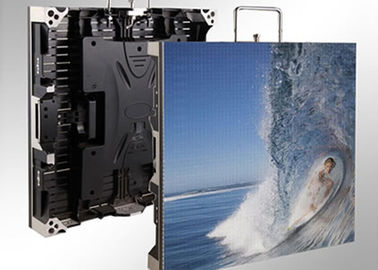

Custom RGB LED Screen P6.25 Dance Floor LED Display Board 2 Years Warranty

Custom RGB LED Screen P6.25 Dance Floor LED Display Board 2 Years Warranty

Custom RGB LED Screen P6.25 Dance Floor LED Display Board 2 Years Warranty
Custom RGB LED Screen P6.25 Dance Floor LED Display Board 2 Years Warranty
Custom RGB LED Screen P6.25 Dance Floor LED Display Board 2 Years Warranty
Product Details:
Place of Origin: China (mainland)
Brand Name: kailite
Certification: CE, FCC, ROHS,ISO
Model Number: p6.25
Payment & Shipping Terms:
Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden Case; Flight Case
Delivery Time: 7-21 work days
Payment Terms: T/T
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Pixel Pitch: 6.25mm Module Size: 250mm*250mm
Physical Density: 25600dots/sqm Usage: Indoor
Function: Video Cabinet Size: 500mm*500mm
Driving Method: 1/10 Scan Refresh Rate: 1400Hz
Warranty: 2 Years Life Time: >100,000 Hours
High Light:

rgb led panel

,

led panel rgb

HOT SALE dancing custom made P4.81 led dance floor LED display screen led videowall large video screens board



Quick Detail



1. New technical for video function led screen



2. It's a new styal of modensociety for all area indoor displays



3. Standard Cabinet 512*512mm(the specifucation is according to the module size)



4. For smd It has a wide viewing angel with a good light, good color mixing and the advantages of high contrast



5.Generally it's use the wooden case to package





Description



1. For p4 indoor rgb led screen with high definition and soft brightness not do harm to eyes



2.  The scope of application: shopping malls, businesses, schools, arena, banking, securities, public security, transport, industry and commerce, electricity, customs, hospitals, parks, airports, stations, stadiums, and other fields.





Product Features

1. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

2. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

3. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

4. Line-Double technology is adopted for the picture adjustment.

5. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.





Specifications



Item P6.25
Main parameters Technical parameters UNIT parameters values









Module Parameters

Pixel pitch MM 6.25
Panel size MM L250*H250
Physical density /㎡ 25600Dots
Pixel Configuration R/G/B 1,1,1
Driving method   Constan current 1/10 scan
LED Encapsulotion SMD 3528
Display resulotion Dots 40*40
Moduel Power W 20























Display Parameters

Viewing Angle Deg H120V120
Option Distance M 4-28
Maximum Power W 860
Cabinet Size MM L500*H500
Frame Frequency Hz ≥60
Refresh Frequency Hz ≥1200
Equilibrium Brightness CD ≥1200
Operation Temperatuer
/Humidity
-30~+45/
10%~95%
Input Voltage VAC 220V±10%/110V±10%
Ingress Protection   IP43
Gray Scale/Color   ≥16.7M color
Brightness Contral   Manual/Automatic
Input Signal   RF/S-Video/RFB/etc
Contral Systerm   PCTV+DVI video
card+control
card+fiber
MTBF HOURS >5000
Life Time HOURS >100,000
Lamp Failure Frequency   <0.0001





P4 LED screen
