| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P2.5 P3 P4 P5 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton/ wooden case/fight case |
| Delivery Time: | about 22 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Western Union |
| Supply Ability: | 9000 square meters per month |
| Usage: | Indoor | Warranty: | 2 Years |
|---|---|---|---|
| Module Size: | 320*160mm | Life Span: | 100000hours |
| Color: | 1R1G1B | Led Type: | SMD2020 |
| Refresh Rate: | 1920Hz-3840Hz | ||
| High Light: | Bankable Curved Soft Flexible LED Module,SMD2020 Front Service Led Display,Bankable Wall Mounted Led Screen |
||
Bankable Curved Soft Flexible LED Module Indoor Advertising Use
Indoor Advertising Bankable Curved Soft LED Display P2.5,P3,P4,P5 Flexible LED Module Full Color Led Screen
Description of soft led module
This module has high flexibility.It is specialized design for special architecture.Great waterproof, reached IP43. it can also keep high brightness and ultra high definition.
Specifications of soft led module
| Item | P2.5 | P3 | P4 | P5 |
| Pixel pitch | 2.5mm | 3mm | 4mm | 5mm |
| Module size | 320*160mm | 240*120mm | 320*160mm | 320*160mm |
| Module size | 128*64 | 80*40 | 80*40 | 64*32 |
| Physical density | 160000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ | 40000 dots/㎡ |
| LED type | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Module power | 18w | 18w | 18w | 18w |
| Best viewing distance | ≥2.5m | ≥3m | ≥4m | ≥5m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/32 Scan | 1/20 Scan | 1/20 Scan | 1/16 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 | IP43 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of soft led module
1) High flexibility.Flex for any irregular shaped screens.
2) Ultra light definition with more than 3840Hz
3) Low power consumption and noise.

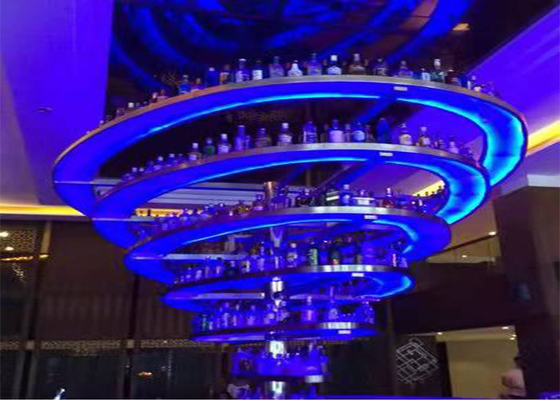

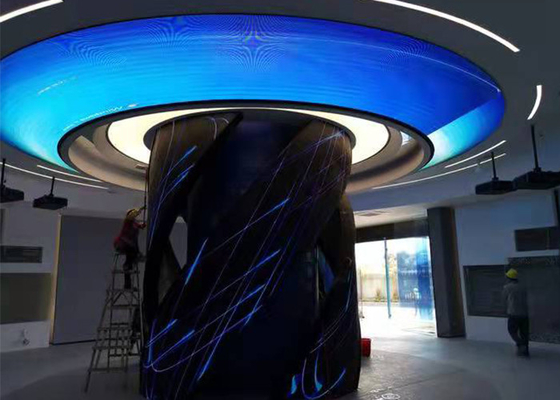

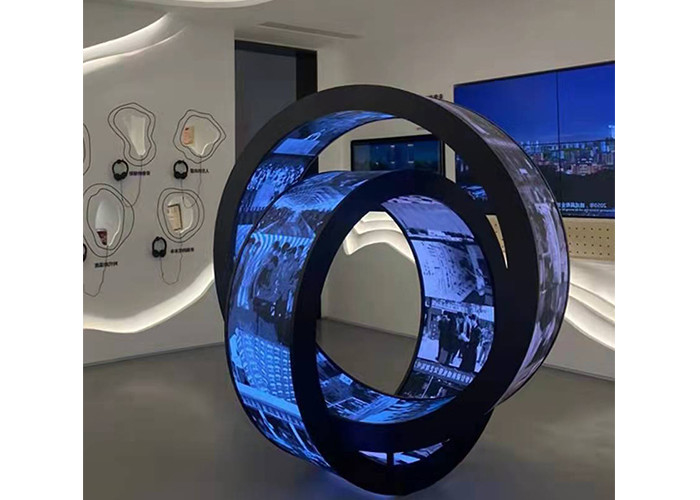

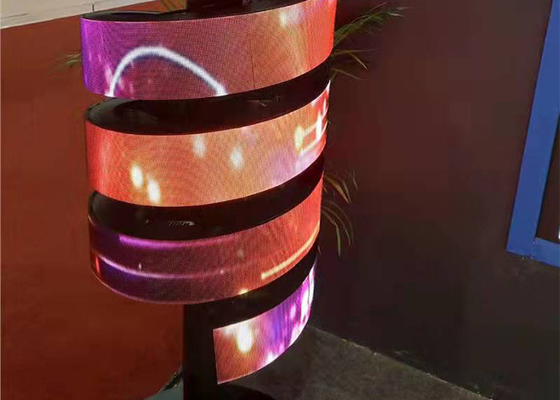

Application of soft led module
This modules has high flexibility. Not limited by direction, size and building shape.Soft led screen is widely used in shopping mall, musueum, college and medical treatment.
Why choose KAILITE?
1. We have 14 years exprience in led screen area. We specialist in this area.
2.We put quality frist.We will conduct product inspection before,during,after production.
3. Fast response. we are online 24 hours, welcome to consult.
4. Same product , lower price and ensure high quality.
After-sell Service:
1) 2 years quality guarantee period for all parts. If there any product problems during the period, please send them for repair.
2) providing free frame structure drawing, as well as power and data cables wiring diagram.
easy for your to set up the led screen.
3) If you need remote control debuggine serice, we will provide this service for you for free.
4) we will reponse you anytime in 7*24 houres if you have any question about the led screen.
5) Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again
6) Free technical training for how to use and handle the software.
FAQ:
1. A sample is available?
Sure, free feel to contact us!
2. How long is the warranty?
We offer 2 year warranty and liftime maintenance.
4. How can we guarantee quality?
We have through this certificate IOS9001 , IOS2000,FCC,RoHS,CE,CCC Always product a pre-production sample before mass production and do finalinspection before shipment for every order.
5. How long will it take to receive the goods?
About 22-24 days.
Contact Person: Carry
Tel: +8615675424311
