Small Pitch flexible lED display screen SMD2020 Novastar System

Small Pitch flexible lED display screen SMD2020 Novastar System

Small Pitch flexible lED display screen SMD2020 Novastar System
Small Pitch flexible lED display screen SMD2020 Novastar System
Small Pitch flexible lED display screen SMD2020 Novastar System
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE UL FCC CCC RoHS ISO9001
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case/Carton
Delivery Time: about 22-24 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P2.5 Flexible Display Screen Pixel Pitch: 2.5mm
Physical Density: 160000 Dots/㎡ LED Type: SMD2020
Power Supply: G-energy/YouYi/Meanwell/Rong Electric Life Span: >100000 Hours
High Light:

Novastar Flexible LED Display Screen

,

Novastar System LED Flexible Display

,

SMD2020 Flexible Led Screen

Small Pitch Flexible LED Display Screen SMD2020 Novastar System



Small Pitch P2.5 P3 LED Flexible Display Screen Novastar System



Quick details of P2.5 LED Flexible Display Screen



1. Module size: 320*160mm



2. Screen size: customized



3. Best viewing angle: H: 160°; V:160°



4. Video frame rate: ≥60 Hz



5. Defective rate: <0.0002





Product Parameters:



Item P2.5 P3 P4 P5
Pixel pitch 2.5mm 3mm 4mm 5mm
Module size 320*160mm 240*120mm 320*160mm 320*160mm
Module size 128*64 80*40 80*40 64*32
Physical density 160000 dots/㎡ 111111 dots/㎡ 62500 dots/㎡ 40000 dots/㎡
LED type SMD2020 SMD2020 SMD2020 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥2.5m ≥3m ≥4m ≥5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/32 Scan 1/20 Scan 1/20 Scan 1/16 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002





Advantages:



1. Shape and size can be customized, could be fixed on different design structure.



2. Small pixel pitch, high definition, look beautiful and vivid.



3. Module with magnets, easy to replace and assemble.



4. Strict QC tests for all parts before shipment.



5. Our company focus on LED screen production for 14 years, we have professional engineers and technicians to solve problems.

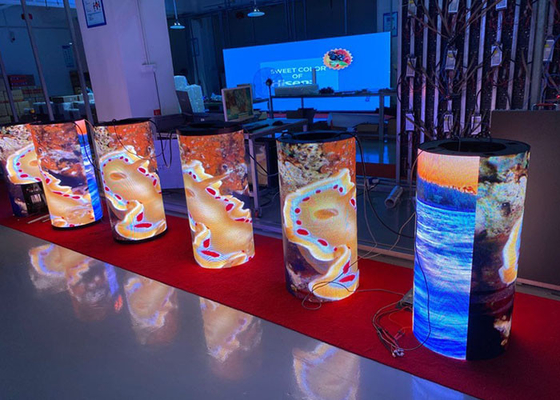

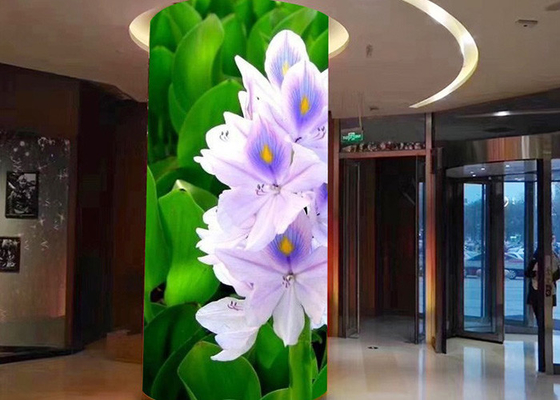

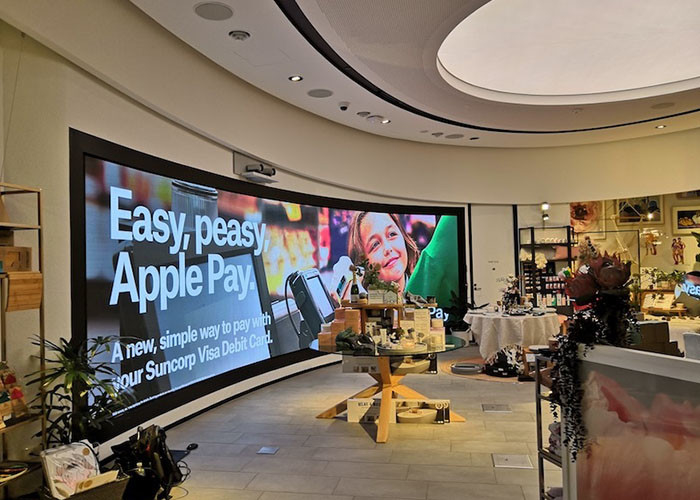

Applications of LED Flexible Display Screen



With the features of high definition and customized shape&size, LED flexible display screen are designed to used in many places or company&organization. such as parks,subway, stations, exhibition halls, museums, stadiums. Most used for commercial ads, introductions, background, related information exhibition etc. sometimes are used in cinema which brings good viewing experience.





Small Pitch flexible lED display screen SMD2020 Novastar System 0

Small Pitch flexible lED display screen SMD2020 Novastar System 1Small Pitch flexible lED display screen SMD2020 Novastar System 2





After-sell Service:



1. 2 years quality guarantee period for all parts.



2. Failure maintenance of LED panels.



3. Online answer to solve customer's question about the screen.



4. Free remote control debuggine serice if you need



5. Warranty service.





FAQ:



1. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.



2. What is your terms of payment?
Most time T/T 40% as deposit, and 60% before delivery.



3. What's the package ?

Wooden case are recommanded for this soft LED Screen. there are other options such as flight case or carton according to your situation.



4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.





5.What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
