SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5

SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5

SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5
SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5
SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P3
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P3 Curved LED Display Module Size: 240*120mm
Best Viewing Angle: H: 160°; V:160° Ingress Protection: IP43
Usage: Decoration, Background, Advertisement Defective Rate: <0.0002
High Light:

Curved RGB LED Screen

,

Column Ribbon Design RGB LED Screen

,

SMD2020 Curved LED Display

SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5



SMD2020 Column Ribbon Design Curved LED Display P2.5 P3 P4 P5 Mall



Quick Details of P3 Curved LED Display



1. Screen dimension: Customized



2. Lamp type: SMD2020



3. Video frame rate: ≥60 Hz



4. Input voltage: AC 110-220v±10%



5. Brightness: ≥800nits





Product Parameters(P2.5 P3 P4 P5)



Item P2.5 P3 P4 P5
Pixel pitch 2.5mm 3mm 4mm 5mm
Module size 320*160mm 240*120mm 320*160mm 320*160mm
Module size 128*64 80*40 80*40 64*32
Physical density 160000 dots/㎡ 111111 dots/㎡ 62500 dots/㎡ 40000 dots/㎡
LED type SMD2020 SMD2020 SMD2020 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥2.5m ≥3m ≥4m ≥5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/32 Scan 1/20 Scan 1/20 Scan 1/16 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002

SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5 0





Why choose our products:



1. Shape & size could be customized, adapt to various application scenarios and designs.



2. Small pixel pitch, no full-screen display of patchwork fine point.



3. Strict factory QC test, we produce by ourselves and each production line has inspector.



4. Use brand material, like nationstar/kinglight lamp, Novastar/Colorlight system.



5. Professional service to save your time and effort.

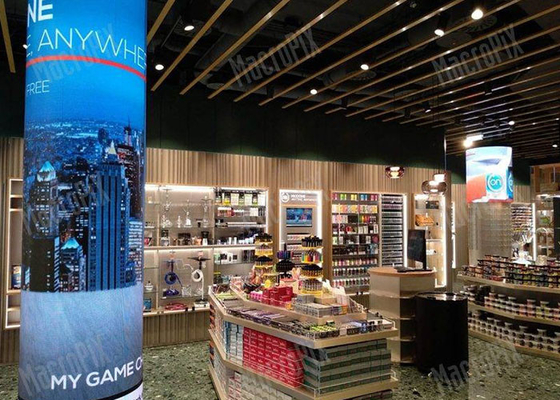

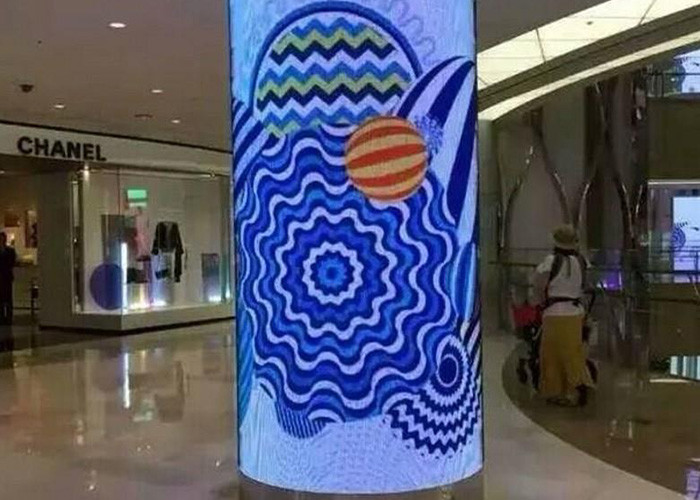

Applications of LED Flexible Display



· Business organizations

Supermarket, large-scale shopping malls, star -rated hotel, travel agencies



· Financial organizations

Bank, insurance companies, post offices, hospital, schools



· Public place

Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room



· Entertainments

Movie theaters, clubs, stages





SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5 1

SMD2020 Column Ribbon Design Curved RGB LED Screen P2.5 P3 P4 P5 2





After-sell Service:



1. Online answer service.


2. Free remote control debuggine serice if you need.


3. Failure maintenance of LED panels.


4. Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again.


5. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.





FAQ:



1. Is the product customizable?

Customized design is available,OEM & ODM are welcomed.



2. What if i was a new user?

We can guide on line if customers have questions about the installation and usage.



3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.





5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
