16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series

16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series

16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series
16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series
16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P1.8
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P1.8 Indoor Fixed LED Screen Pixel Pitch: 1.875mm
Physical Density: 284444 Pixels/㎡ Grey Level: 12-16bit
Color: Full Color/1R1G1B Driving Method: 1/45 Scan, Constant Current
High Light:

Gold Ratio Fixed LED Screen

,

Fine Pixel Pitch Fixed LED Screen

,

1.875mm Fine Pixel Led Display

16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series





Quick Details of P1.8 Indoor Fixed LED Screen



1. Pixel pitch: 4mm



2. Module size: 320*160mm



3. Cabinet material: Iron or die-casting aluminum



4. Best viewing angleH: 160°; V:160°



5. Refresh rate1920-3840Hz




Specification of Indoor Billboard



Item P1.8
Pixel pitch 1.875mm
Module size 150*168.75mm
Module resolution 80×90
Physical density  284444 dots/㎡
LED type SMD1515
Cabinet size 600*337.5mm
Cabinet resolution 320*180
Maintenance way Front
Best viewing distance ≥1.8m
Best viewing angle H: 160°; V:160°
Driving method (Constant Current) 1/45 Scan
Video frame rate ≥60 Hz
Refresh rate 3840Hz
Brightness ≥800nits
Grey Level 12-16bit
Ingress protection IP43
Life Time >100,000 Hours
The rate <0.0002




Features of Indoor Fixed LED Screen Fine Pixel Pitch



1. 16:9 Gold ratio, looks comfrotable.



2. High contrast, full color, 12-19bit grey level, the screens looks clear and nice.



3. Front maintenance way, easy and convenient to replace the modules and power supplies.



4. High refresh rate(over 3840Hz)



5. Our goods have passed CE-LVD, CE-EMC, FCC, RoHS, ISO, 3C certification, can ship to many countries.

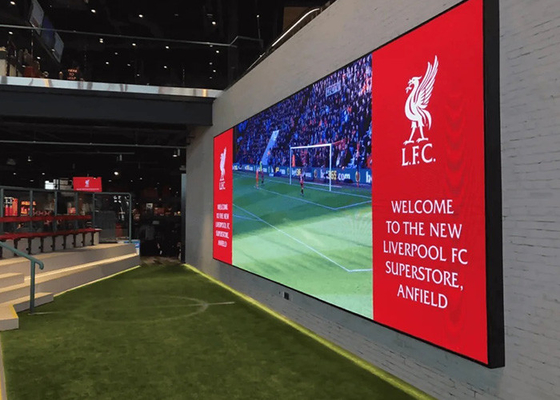

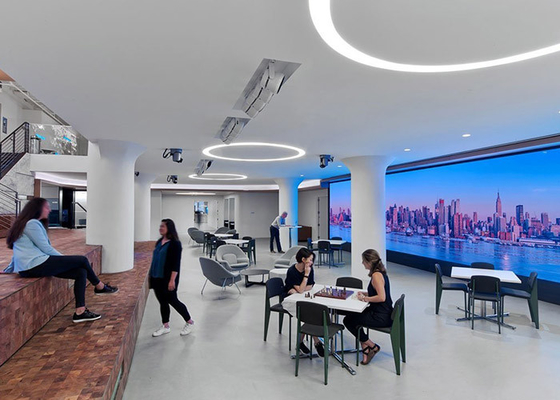

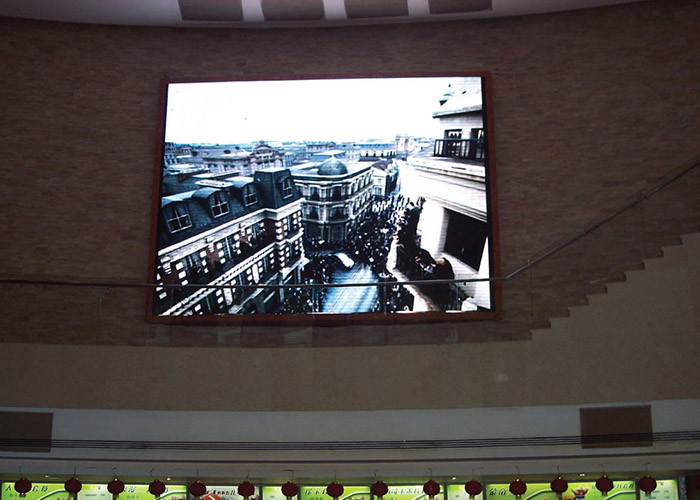

Application of Indoor Billboard



Mainly for advertisement, installed at shopping mall, commercial center, subway, passway, stadium, etc. the screen could be mounted on the wall, inlaid, embedded in the wall, hang in the air, stand on the base.





Quality Control Test (for the whole screen and all modules)



16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series 016:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series 1





After-sell service:


1. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.


2. Free remote control debuggine serice if you need.



3. Providing controller and software manual.



4. Free Installation guidance by experienced.



5. Online answer to customers' question.



FAQ:


1. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.


2. What’s your control system? How is it?
Our most common used system is Novastar, famous brand and good quality.


3. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.


4. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.


5.
What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.





16:9 Gold Ratio P1.8 Indoor Fixed LED Screen Fine Pixel Pitch Series 2
