Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive

China Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive supplier
Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive supplier Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive supplier

Large Image :  Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive

Product Details:

Place of Origin: Shenzhen/Guangdong/China
Brand Name: Kailite
Certification: CE/UL/RoHS/ISO9001
Model Number: Outdoor SMD P5

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: Negotiation
Packaging Details: wooden packing /flightcase packing
Delivery Time: 15days after receive the deposit
Supply Ability: 1000SQM/Month
Contact Now
Detailed Product Description
Module Size: 160mm*160mm Cabinet Size: 640mm*640mm/960mm*960mm
Module Resolution: 32*32 Cabinet Resolution: 128*128/192*192
LED Chip: SMD2727 Cabinet Material: Iron Cabinet
Brightness: 6000cd/㎡ Color: Fullcolor



Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive

1. High brightness, ≥6000CD/m2

2. IP65 grade, all weather available

3. High referesh rate, ≥1920Hz

4. Gray scale ≥65536

Adopt superior quality SMD 3 in 1 LED lamp, gorgeous color performance.


High brightness LED lamps with wide viewing range and low driving current, consuming less power.

Item PH5
Color Full-color real pixels
Use environment Outdoor
Pixel pitch 5mm
Module size 160*160mm
Physical density 40000 dots/square meter
Pixel configuration 1R1G1B
LED chip SMD2727
Module resolution 32*32
Module power 70w
Recommended viewing distance 10-70m
Best viewing angle H: 120°; V:120°
Maximum power consumption 620w
Average power consumption 250w
Cabinet size W640m×H640mm
Standard cabinet resolution 48*48
Weight 40kg/panel
Driving method 1/8 Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥6000cd
Operating temperature/Humidity -30℃~+45℃
Ingress protection Front:IP 67; Back:IP65
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >500 hours
Life time >100,000 Hours
The rate <0.0002

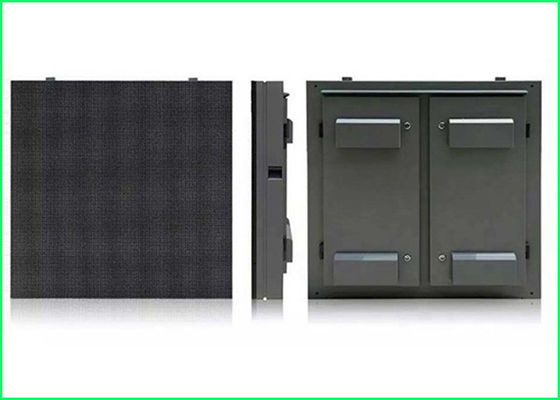

LED cabinet
Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive

Smart design LED cabinet

IP rating: Waterproof level IP65 (front),Waterproof level IP54 (back), fearless of any weather conditions.

Cooling system: Scientific structure design make sure enough space with high efficient fans increase dissipation capability, ensure the stability and reliability even for long time continuous use, and prolong the lifespan of the led display.


Packing
Plywood case packing

3~4pcs cabinets/box

With PE foam protection

Safe & reliable

Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive
Details



SMD 2727 LED lamp


1. Pin internal bending, multiple waterproof, high reliability.



2. White frame, improve brightness;Dumb smooth process, inhibition of reflection.


LED mudule

Module size: 160mm (L) * 160mm (H)

Mask material: PC + glassfiber



Excellent waterproof and dust effects, using irrigation methods sealing glue.

Advertising 5mm Strong Stability Wall Smd Led Screen Outdoor With Constant Drive

Application

Applied to outdoor places such as station,port,airport, shopping mall,hotel,stadium etc.
It uses as video and information display.



After-sale Service



1) Free 2-year warranty. Life-long maintenance, only needs to anew purchase the raw material when outside the warranty period.



2) 7*24 service, any questions will get reply within 1 hour. Problems get solved in 12 hours.



Operation training



The training class is mainly to assure customers have good use of products. Which needs both the buyer and seller work along with the contract. Seller is responsible for training buyer how to operate Led Screen software and some basic hardware maintenance knowledge when installation and test being finished well. The detailed training class info as below:



1) Led Screen basic operation principle



2) System operation procedure and management



3) Daily maintenance and safety caution



4) Display info daily maintenance



5) Simple software failure treatment



6) Simple hardware failure treatment
