Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001

China SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD certifications
China SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD certifications
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001

Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001
Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001

Large Image :  Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001

Product Details:

Place of Origin: Shenzhen/Guangdong/China
Brand Name: Kailite
Certification: CE&UL&RoHS&ISO092001
Model Number: Indoor P3.91

Payment & Shipping Terms:

Minimum Order Quantity: 1 squarter meter
Price: Negotiation
Packaging Details: Flightcase packing
Supply Ability: 1000SQM/Month
Detailed Product Description
Module Size: 250*250mm Cabinet Size: 500*500/500*1000mm
LED Chip: SMD2121 Module Resolution: 64*64
Cabinet Resolution: 128*128 Cabinet Material: Die-casting Aluminum
Function: Play Video/picture/words Packing: Flightcase Packing
High Light:

led screen rental

,

led video panels

P3.91mm Indoor Die cast aluminum led screen/Super thin Rental led screen







1. Only two cables out, signal cable and power supply cable, keep led screen working more safe.



2. Super light and slim. 6.35Kg/cabinet and 55mm thickness cabinet, high end design and quality,



3. save labor cost and time on each cabinet 15 seconds, a piece of cake to install and dismount.



It could be used as stage background or live show with closer best view distance, high definition and high brightness, very practical, pls see below pictures for your reference.

Item PH3.91
Color Full-color real pixels
Use environment Indoor
Pixel pitch 3.91mm
Module size 250*250
Physical density 65536dots/square meter
Pixel configuration 1R1G1B
LED chip SMD2121
Module resolution 64*64
Module power 70w
Recommended viewing distance 4-10m
Best viewing angle H: 120°; V:120°
Maximum power consumption 620w
Average power consumption 25w
Cabinet size W500m×H500mm/W500m×H1000mm
Standard cabinet resolution 128*128/128*256
Weight 6.4kg/Cabinet
Driving method 1/32Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥1000cd
Operating temperature/Humidity -30℃~+45℃
Ingress protection Back:IP43
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >500 hours
Life time >100,000 Hours
The rate <0.0002



The Quality Assurance:

Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 0
Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 1
Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 2
Our Products’ Features:
Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 3

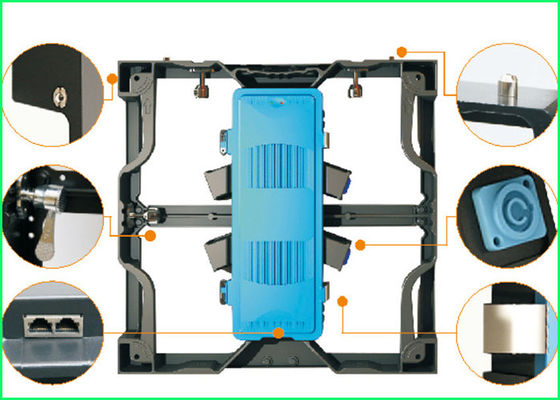

LED Die-casting Aluminum cabinet Details:
Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 4
Super Thin P3.91mm Indoor Rental LED Displays In Die Cast Aluminum ISO092001 5
Trade Terms:
1).Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity

2).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days

3).Sample can be deliveried within 3days

4).Shipping port: Shenzhen, Mainland China

5).Discounts are offered based on order quantities



Service:

Technical training

Our company will train the users based on the manual, system use guide and maintenance guide. The training include system use, system maintenance and equipment protection.

After-sales services modes

A. Phone service

Linso after-sales Services Department provides customers with 24 –hour- phone service. When you contact us, please let us know the following information:

1. Your name and phone number

2. Product model

3. Detailed fault information (if the fault could be presented by pictures, please takes pictures and sends them to us as possible as you can)

Our after-sales service engineers will offer technical support and guidance based on your description.

B. Real-time communication service

Linso after-sales service engineers could provide customer services through TM & E-mail & Skype, for example, sending the video files of software operation & graphic card setup by TM to show how to operate.

C. Remote control service

Linso can operate the customer’s computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.

D. Post Service

Under warranty, customers could send the defective components back to Linso, we will repair them and return to you as soon as we can. Please refer to the time chart of our response to some main components fault.

E. On-site service

We will send engineer to offer on-site service with your assistance upon your requirement.
