Payment & Shipping Terms:
|Module Size:||160*80/160*160mm||Cabinet Size:||640*640mm|
|Cabinet Material:||Die-casting Aluminum||Module Weight:||0.24kg|
led display smd,
smd led display
Super Bright rgb Small SMD Led Screen Display For Cinema / Metro Stations
1. P2.5 high refresh rate indoor full color LED display advertising video wall is Super Light and Thin
P2.5 high refresh rate indoor full color LED display advertising video wall is 2KG/panel with a depth of 80mm which is half of the depth of traditional LED screen,saving space and transportation cost
2. P2.5 high refresh rate indoor full color LED display advertising video wall has Fast Maintenance
P2.5 high refresh rate indoor full color LED display advertising video wall is With front maintenance design, maintenance efficiency is 10 times higher than traditional method, significantly saving time needed for maintenance
3. P2.5 high refresh rate indoor full color LED display advertising video wall has High Refresh Rate
P2.5 high refresh rate indoor full color LED display advertising video wall has Refresh Rate≥2000, offering impressive visual effect
4. P2.5 high refresh rate indoor full color LED display advertising video wall shows Fine and Smooth Picture
P2.5 high refresh rate indoor full color LED display advertising video wall is made with Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
5. P2.5 high refresh rate indoor full color LED display advertising video wall has Seamless Splicing
P2.5 high refresh rate indoor full color LED display advertising video wall shows High conformity of picture without gap and information missing, realizing a seamless splicing display. Working life-span at least 100,000hrs;
|(Pitch 2.5mm indoor full color-1/16 scan)|
|Pixel structure||1R1G1B 3in1|
|Pixel density||160,000 dots|

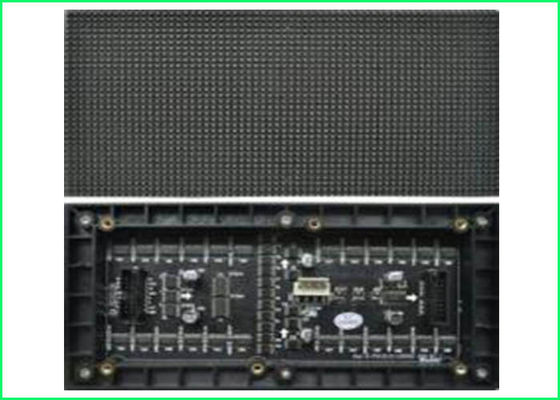

|Module dimension||160mm(W) * 80mm(H)|
|Module resolution||64 pixel(W) * 32 pixel mm(H)|
|Cabinet dimension||480 * 480mm|
|Cabinet resolution||192 * 192|
|Cabinet area||0.230 sq. meter|
|Optimal visual distance||>2.5m|
|Visual angel||140 degree (H/V)|
|Max power consumption||≤2600w|
|Average power consumption||≤850w|
|Brightness adjustment||Adjust according to the environment|
|brightness software (0%-100%adjustable)|
|Gray scale||point by point 4096 gray grade levels of|
|each color, 16 bits γ correction available|
|Drive mode||1/16 dynamic scan, constant current|
|Input voltage||AC 90~260 volts|
|Operation temperature||- 40℃~ +60℃|
|Input signal||video, s-videl, RGB digital signal etc.|
|Inout signal||S-video, RF, RGB, Yuv, YC, composite…|
|Control system||DVI card + master control card + receiver card|
|Life span (50% brightness)||100, 000 hrs|
|Malfunction dot rate||1/10000|
|Ingress protection rate||IP31|
|Cabinet material||Epoxy paint coated, aluminum / iron|
|Application:||Rental / Permanent installation available|
Standard Cabinet Dimensions
The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of P2.5 Indoor Rental LED Display is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.
Best Quality Material, Modules and Chips
The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.
Get Every Detail in Picture
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
High Refresh Rate
The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Seamless display and visual effects
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.
Strict Aging Test
All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.
Application of LED display screen
1, Advertising LED display screen
LED display,with its unique advantages, has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.Traditional advertising can only show pictures, But LED display can perfect combine text, pictures, video, and sound with high resolution, high brightness and full color! LED display Advertising can easily attract the attention of pedestrians, and also are easy to remember,which can generate greater advertising effectiveness. Led display advertising now are applied in main street, shopping mall, Plaza Park, outstanding buildings, landmarks, airports, stations and so on.
2, Stadium LED display screen
Led screen are used in stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation, as well as commercials advertising.
The common cases are football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium, etc.
3, Transportation LED display screen
In the busy streets of city or on the highway, we can see LED display screen, these screens are generally controlled by a unified control center, in conjunction with other traffic monitoring equipment, automatic display traffic flow or traffic jam information. Also screens display weather, traffic regulations, to remind drivers to drive safely, and has the effect of signpost. The main application areas are in the city's main roads, road density lots, highways and other places.
4, Stage rental LED display screen
LED rental screens can easily installed and removed, also easy to transport.LED rental screens now are widely used in stage show, concert,theater, party,and other entertainment event as background, it can be live show and replay,and its so big that audience far away from the stage can see the performance on the stage clearly, creating a magnificent , highly infectious atmosphere, combined with highquality sound, giving a perfect visual feast.
Contact Person: Mr.Liu
