| Place of Origin: | China |
| Brand Name: | KAILITE |
| Certification: | CE FCC ROHS |
| Model Number: | P4 |
| Minimum Order Quantity: | 5 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case Packing ; Flight Case Packing |
| Delivery Time: | 8-22 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, |
| Supply Ability: | 6000 Square Meters Per Month |
| Module Size: | 256mm*128mm | Module Resolution: | 64*32 |
|---|---|---|---|
| Color: | Full Color Rental Led Screen | Cabinet Size: | 512mm*512mm |
| Maximum Power: | 860w | Led Lamp: | Smd2121 |
| Driving Method: | 1/16 Scan Constant Current | Warranty: | 2 Years |
| Brightness: | >1200cd/square Meters | Refresh Rate: | ≥1200Hz |
| System: | LInsn Or Nova | Input Voltage: | 110-220V AC±10% |
| High Light: | led screen rental,led screen hire,Indoor P4 LED Video Wall |
||

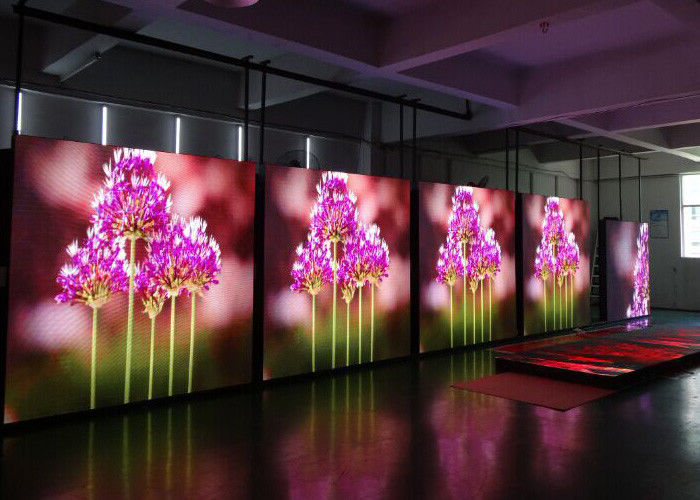

Good Heat Dissipation 256*128mm P4 Indoor Led Panel Rental With Quality Led Lamp
Quick Details:
High refresh rate; light weight; easy to install; convenient for transportation
more than 1200cd/square meters brightness & more than 1200Hz refresh rate
Providing Personalized and complete solution for your requirement
24 months warranty for our products and life time maintance
Specifications:
| led module parameter | ||
| Technical parameters | UNIT | parameters Values |
| Pixel pitch | mm | 4 |
| module size | mm | 256*128 |
| Physical density | dots/㎡ | 62500 |
| Pixel configuration | RGB | 1,1,1 |
| Driving method | Constant current 1/16scan | |
| Led lamp | Smd | 2121 |
| module resolution | dots | 64*32 |
| Module weight | Kg | 0.23 |
| Module port | HUB75 | |
| Module consumption | W | 20 |
| led display parameter | ||
| Viewing angle | Deg. | H120 V120 |
| Viewing distance | m | 4-35 |
| Maximum power | W/㎡ | 860w |
| Frame Frequency | Hz | ≥60 |
| Refresh frequency | Hz | ≥1200 |
| Equilibrium brightness | cd/㎡ | ≥1200 |
| Working environment temperature | 0C | -30~60 |
| Display working voltage | VAC | 220V±15%/110V±15% |
| Gray scale/color | ≥16.7M color | |
| Input signal | RF S-Video RGB etc | |
| Control system | Nova/Linsn control system | |
| Mean free error time | hours | ＞5000 |
| life time | hours | ＞100,000 |
| Lamp failure frequency | ＜0.0001 | |
Features:
Stable & Good quality: we are led display manufacturer for 7 years and we have rich experience for outdoor and indoor led screen.
Supporting OEM/ODM service, If you have special requirements about the shape and systems, we can make correspond solutions for you
Supporting many play files: videos, texts, pictures,graphics, PPT, Flashes and any sources
from TV,VCD,DVD and so on
HD & high refresh rate: the resolution for each led module is 64*32, so if the viewing
distance is 4 meters or more. it is Best effect
Waterproof led module and cabinet; Easy maintance & installation; relative low power
consumption; wide viewing angle
advantages:
1. Light weight:The aluminum die-casting technology makes the single cabinet as light as 7.2KG, which is convenient for assembly and transportation.
2. Ultra Thin: the cabinet for p4 indoor rental led screen is Thin, so it is good looking and easy to disassembly and transport
3. Easy to maintain:No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose.
4. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
After-sell Service:
Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost
Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours
we will reponse you in 24 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.
FAQ:
1.Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2.Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 7-21 days after we receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
Contact Person: Mr.Liu
Tel: +8613510138815
