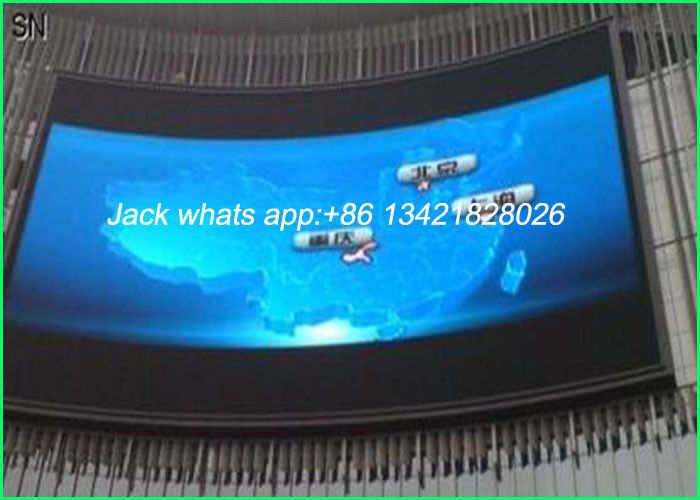

Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble

Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble

    • Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble
    • Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble
    • Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble
  • Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble

    Product Details:

    Place of Origin: Shenzhen/Guangdong/China
    Brand Name: Kailite
    Certification: CE/RoHS/UL/ISO9001
    Model Number: Outdoor SMD P10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SQM
    Price: Negotiation
    Packaging Details: woode pancking /flightcase packing
    Delivery Time: 30days
    Supply Ability: 1000 SQM/Month
    Detailed Product Description
    Module Size: 320*160mm Cabinet Size: 960*960mm
    Cabinet Weight: 34KG Cabient Material: Iron
    Module Resolution: 32*16 Cabinet Resolution: 96*96
    Best View Distance: 10m Brightness: 7500cd/m2

    Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble



    1. High resolution,good price
    2. Large view angle
    3. Fast installation
    4. Light weight

    P10 outdoor full color rental LED display

    Features & Technical Specification:

    1. Wide application field & short ROI time:

    commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction

    2. High Contrast ratio: 4000:1

    Which is a very high level to ensure a vivid image of our LED display screen system.

    3. First-class LED chip:

    Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system

    4. Clear vivid image quality:

    Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.

    5. Long-term Brightness:

    7000-nit brightness (for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

    6. Easy Installation & Using:

    easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

    7. Convenient Servicing:

    Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

    Item PH10
    Color Full-color real pixels
    Use environment Outdoor
    Pixel pitch 10mm
    Module size 320*160mm
    Physical density 10000 dots/square meter
    Pixel configuration 1R1G1B
    LED chip SMD3535
    Module resolution 32*16
    Module power 70w
    Recommended viewing distance 10-70m
    Best viewing angle H: 120°; V:120°
    Maximum power consumption 620w
    Average power consumption 250w
    Cabinet size W960m×H960mm
    Standard cabinet resolution 96*96
    Weight 40kg/panel
    Driving method 1/4 Scan, Constant Current
    Video frame rate ≥60 Hz
    Rate refresh ≥1200Hz
    White balance brightness ≥6000cd
    Operating temperature/Humidity -30℃~+45℃
    Ingress protection Front:IP 67; Back:IP65
    Input voltage 110-220V AC±10%
    Gray scale /Color Display Colors ≥16.7N(Synchronize)
    Brightness control Manual/Automatic
    Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
    Control system PCTV+DVI video card+control card+fiber
    MBTF >500 hours
    Life time >100,000 Hours
    The rate <0.0002
    LED Module and Cabinet Details
    Slim P10 Outdoor Curve LED Display , LED Large Screen Display Quick assemble
    Quality ---- Methods for quality assurance
    Strict IQC:
    1. According to ;
    2. AQL international checking standard , for all coming materials;
    3. In Process Quality control;
    4. Fully inspection before deliver to production;
    Module Aging:
    1. 100% fully test
    2. condition: 72 hours with 256 grey level
    3. Finished-Panel Aging
    100% full lighting test (both video and white in 2 hours a circle) and Scanning Test
    White-Balance Testing:
    Condition: In a Black House
    Standard: IS standard which LED industry recognized standard
    Purpose: measure the Luminance and white balance values for each order , keep record
    Vibration Testing
    Condition: 3 – 5 minutes up and down in 5mm range

    Trade Terms:
    1). Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
    2). Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
    3).Sample can be deliveried within 3days
    4). Shipping port: Shenzhen, Mainland China
    5). Discounts are offered based on order quantities
    6). MOQ:1 sqm/1pcs

    Packaging & Shipping

    Die-cast Aluminum 576mm*576mm Indoor P6 LED Screen/LED Display

    Working Diagram

    Die-cast Aluminum 576mm*576mm Indoor P6 LED Screen/LED Display

    Our service:

    1). Your inquiry related to our products or prices will be replied in 24hrs.
    2). Well-trained and experienced staffs to answer all your enquires in fluent English .
    3). OEM&ODM, any your customized screen we can help you to design and put into product.
    4). Distributer ship are offered for your unique design and some our current models .
    5). Protection of your sales area, ideas of design and all your private information
