| Place of Origin: | China (mainland) |
| Brand Name: | kailite |
| Certification: | CE, FCC, ROHS |
| Model Number: | p5 |
| Minimum Order Quantity: | 2 Square Meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case; Flight Case |
| Delivery Time: | 7-21 work days |
| Payment Terms: | T/T, D/A, D/P, L/C |
| Supply Ability: | 8000 square meters per month |
| Pixel Pitch: | 5mm | Module Size: | 320mm*160mm |
|---|---|---|---|
| Physical Density: | 40000 Dots/sqm | Usage: | Indoor |
| Function: | Video | Cabinet Size: | 640mm*640mm |
| Driving Method: | 1/16 Scan | Refresh Rate: | 1200Hz |
| Warranty: | 2 Years | Life Time: | ＞100,000 Hours |
| High Light: | rgb led display,led panel rgb,Airport SMD2121 P5 Led Display |
||

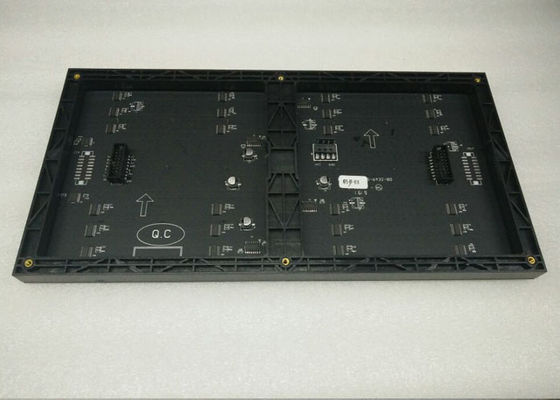

P5mm RGB Led Video Screen With Indoor SMD2121 Standard Cabinet 640*640mm
Features:
1. With good lightening accordance and no mosaic
2. Led advertising board can play different formats of image files, flash,video signal from TV,
video signal from video and other equipments.
3.Different video frequency can be changed freely at the same time, and the image can be enlarged
and reduced.
4. High brightness, and can be adjustable, meets the need of changing requirement of customer
in environment
Applications:
Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, etc..
Specifications
| Item P5 | |||
| Main parameters | Technical parameters | UNIT | parameters values |
| Pixel pitch | MM | 5 |
| Panel size | MM | L320*H160 | |
| Physical density | /㎡ | 40000Dots | |
| Pixel Configuration | R/G/B | 1,1,1 | |
| Driving method | Constan current 1/16 scan | ||
| LED Encapsulotion | SMD | 2121 | |
| Display resulotion | Dots | 64*32 | |
| Moduel Power | W | 20 | |
| Viewing Angle | Deg | H120V120 |
| Option Distance | M | 5-35 | |
| Maximum Power | W | 700 | |
| Cabinet Size | MM | L500*H500 | |
| Frame Frequency | Hz | ≥60 | |
| Refresh Frequency | Hz | ≥1200 | |
| Equilibrium Brightness | CD | ≥1400 | |
| Operation Temperatuer /Humidity | ℃ | -30~+45/ 10%~95% | |
| Input Voltage | VAC | 220V±10%/110V±10% | |
| Ingress Protection | IP43 | ||
| Gray Scale/Color | ≥16.7M color | ||
| Brightness Contral | Manual/Automatic | ||
| Input Signal | RF/S-Video/RFB/etc | ||
| Contral Systerm | PCTV+DVI video card+control card+fiber | ||
| MTBF | HOURS | >5000 | |
| Life Time | HOURS | >100,000 | |
| Lamp Failure Frequency | <0.0001 | ||
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Wooden case packaging
