Payment & Shipping Terms:
|Module Size:||250*250mm||Cabinet Size:||500*1000mm|
|Module Resolution:||52*52||Cabinet Resolution:||208*208|
|Pixel Density:||43264 Dots/m2||LED Encapsulation:||SMD 2727|
|Driving Method:||1/13 Scan||White Balance Brightness:||≥5500cd/m2|
|P4.81 outdoor 500*100mm die cast aluminium led display screen|
|Item No.||P4.81 die cast aluminium led display screen|
|Pixel pitch||4.81 mm|
|Size of module (mm*mm)||250*250 mm|
|Pixel density||43264 dots/m2|
|LED encapsulation||SMD 2727|
|Resolution of module||52*52|
|Best viewing distance||4~30m|
|Best viewing angle (Horizontal/Vertical)||160°/140°|
|Max power consumption||850W/m2|
|Driving method||1/13 Scan|
|White balance brightness||≥5500cd/m2|
|Working voltage||AC 220±10% or 110±10%|
|Cabinet material||Die cast aluminium|
|Blind Spot Rate||<0.000001|
|Grey scale||16 bits per color|

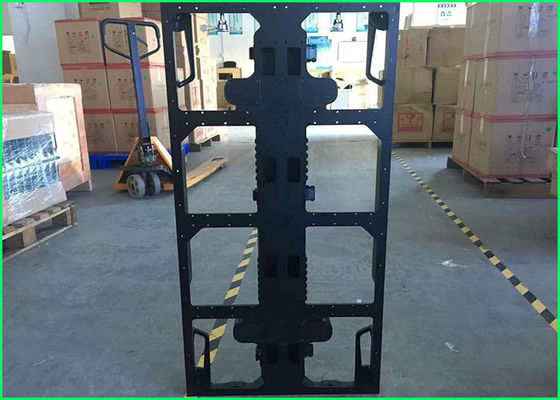

The unique hexagon structure design, flat and firm
The back of the cabinet modules adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.
HD image brings you more perfect visual experience
The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor installation perfectly.
Fast installation, high precision and less weight
Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.
High IP grade and applicable to rainy weather
It is shown from the detecting data by third-party professional institutes: the protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments.
Brightness are adjustable
Be able to adjust the screen brightness(600-6000nits) based on ambient light changes, greatly reducing your opearating costs.
Support All Media Format and Display Mode
High Refresh Rate
The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Strict Aging Test
All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.
1. Synchronous System(contact sales if you would like the led display with Linsn or NovaStar or Other brand control system)
1. Input resolution: 1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)
2. Capacity: 1.3 million pixels. Supply voltage: 5V
3.Control method: USB interface.
6pcs ph4.81mm cabinet into 1pcs air flight case.
√ Two years quality warranty with lifelong led display maintenance.
√ Customer Investigation: our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover problem and solve the problem instantly.
1).Your inquiry related to our products or prices will be replied in 24hrs.
2).Well-trained and experienced staffs to answer all your enquires in fluent English .
3).OEM&ODM, any your customized screen we can help you to design and put into product.
4).Distributer ship are offered for your unique design and some our current models .
5).Protection of your sales area, ideas of design and all your private information
