Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet

Good quality SMD Led Screen for sales
Good quality SMD Led Screen for sales
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet

China Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet supplier
Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet supplier Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet supplier

Large Image :  Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet

Product Details:

Place of Origin: China (Mainland)
Brand Name: KAILITE
Certification: CE, FCC, ROHS
Model Number: P3.91

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square meters
Price: Negotiation
Packaging Details: wooden packing; flight case packing
Delivery Time: 7-20 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Pixel Pitch: 3.91mm Pixel Configuration      : 1R1G1B
Moduel Size: 250*250mm Physical Density: 65536 Dots/㎡
Led Chip: SMD2121 Moduel Resolution: 64*64
Brightness: ≥1300cd Ingress Protection: Front: IP67; Back: IP65

Waterproof  rental led display 500*500/500*1000mm high definition die-casting aluminum cabinet



Advantage:



1.New version of cabinet can be combined with the old version of cabinet which solve further problems you might have. (Only except the cables between cabinets require to be lengthened)



2. Ultra-thin,ultra-light and comfortable, integrated cast aluminum design makes assembly and disassembly more convenient.Seamless splice makes the screen very flat like a mirror. Let's seize the hearts of the audience, lock the whole screen, safe and fast, quality assured.



3. High-definition and perfect image gives you a visual feast; it is suitable for all kinds of occasions , such as the splendid hall, innovation technology seminars, star talent and the game; Aries free from the scene, and perfection is near at hand.



4. Closed and detachable power supply box design, high safety coefficient, convenient maintenance which combines the static with dynamic perfectly.





Applications:



------ Trading, financial information display



------ Airport flight information display



------ Stadium Information Display



------ Road traffic information display



------ Performances and gatherings



------ Exhibition and rental





Specifications





Item P3.91



Main parameters

Technical parameters UNIT parameters values









Module Parameters

Pixel pitch MM 3.91
Panel size MM

L250*H250

Physical density /㎡ 65536 dots
Pixel Configuration R/G/B 1,1,1
Driving method   Constan current 1/16scan
LED Encapsulotion SMD 2121
Display resulotion Dots 64*64
Moduel Power W 20























Display Parameters

Viewing Angle Deg H120V120
Option Distance M 4-28
Maximum Power W 860
Cabinet Size MM L500*H500/L500*H1000
Frame Frequency Hz ≥60
Refresh Frequency Hz ≥1200
Equilibrium Brightness CD ≥1300
Operation Temperatuer
/Humidity
-30~+45/
10%~95%
Input Voltage VAC 220V±10%/110V±10%
Ingress Protection   Front:IP67;Back:IP65
Gray Scale/Color   ≥16.7M color
Brightness Contral   Manual/Automatic
Input Signal   RF/S-Video/RFB/etc
Contral Systerm   PCTV+DVI video
card+control
card+fiber
MTBF HOURS >5000
Life Time HOURS >100,000



Lamp Failure Frequency





<0.0001




FAQ



1. Why use an LED Screen instead of an LCD Screen?

LED screens are a completely different technology to LCD screens, designed for a different purpose. LCD screens are designed primarily for indoor close viewing on a small scale. LED screens are designed for large scale, high impact projects that can be used outdoors in bright sunlight.

2. How do I decide what screen is right for me?

There a few factors that that determine what screen and size of screen will be right for your event. These include how close your audience are to the screen, the audience size, if your event is indoors or outdoors.

3.What can I show on my LED Screen?

We can help you show anything you want on your screen. Plug in a laptop and show presentations, videos, and slideshows. We can take live video feeds and signals from your computers, vision mixers, or any output source including CV, VGA, HDMI, DVI, SDI, HD-SDI and more.



4.What's your delivery time?

Wthin 15-25 days after receiving deposit.

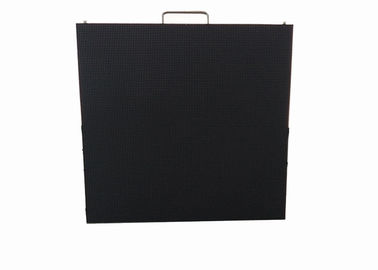

Die-casting Aluminum Cabinet

Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet









Wooden case packaging



Rental led display 500 * 500mm / 500 * 1000mm high difinition die - casting alumium cabinet
