High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm

High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm

  • High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm
  • High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm
  • High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm
High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm
Product Details:
Place of Origin: China
Brand Name: KAILITE
Certification: CE FCC ROHS
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 30 pieces
Price: Negotiation
Packaging Details: Wooden Case Packing ; Flight Case Packing
Delivery Time: 7-20work days
Payment Terms: T/T, L/C, D/A, D/P,
Supply Ability: 7000 Square Meters Per Month
Contact Now
Detailed Product Description
Module Size: 320mm*160mm Module Resolution: 64*32
Color: Full Color Indoor Led Screen Cabinet Size: 640mm*640mm
Maximum Power: 700w Led Lamp: Smd3528
Driving Method: 1/16 Scan Constant Current Warranty: 24 Months
Brightness: >1400cd/square Meters Refresh Rate: ≥1200Hz
Brightness Control: Manual/Automatic Input Voltage : 110-220V AC±10%
Input Signal : RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
High Light:

led smd module

,

led rgb module

Wholesale Price Smd3528 High Brightness P5 Indoor RGB LED Module For Indoor Usage

Quick Details:

1.Smd3528 led lamp making the led screen more brightness

2. Factory wholesale directly, complete specifications, adequate inventory. For each model, 5000~10000pcs in stock
3. First-class Taiwan LED chip.Supplied by Epistar of Taiwan & other high strictly selected LED chip to ensure the long lifetime and high brightness
4. High Contrast ratio: above 2000:1, very high level to ensure a vivid image of our LED display screen system
5. Clear vivid image quality: more than 130 degree in horizontal and vertical to ensure your attracting more audience to get short ROI of your LED display screen's investment
6. Long-term Brightness: use high quality led chip and lamp to ensure led display can last 8 years with low Lumens depreciation

7.2 years warranty for our products and life time maintance

Specifications:


led module parameter
Technical parametersUNITparameters Values
Pixel pitchmm5
module sizemm320*160
Physical densitydots/㎡40000
Pixel configurationRGB1,1,1
Driving method Constant current 1/16scan
Led lampSmd3528
module resolutiondots64*32
Module weightKg0.31
Ingress protection IP43
Module consumptionW20
led display parameter
Viewing angleDeg.H120 V120
Viewing distancem5-35
Maximum powerW/㎡700w
Frame FrequencyHz≥60
Refresh frequencyHz≥1200
Equilibrium brightnesscd/㎡≥1400
Working environment temperature0C-30~60
Display working voltageVAC220V±15%/110V±15%
Gray scale/color ≥16.7M color
Input signal RF S-Video RGB etc
Control system Nova/Linsn control system
Mean free error timehours>5000
life timehours>100,000
Lamp failure frequency <0.0001



advantages:

1.7 Years factory, We are led screen manufacturer for 7 years, we have rich experience in outdoor and indoor led display, quality is guaranteed

2.Up to 60% customers referral rate make us good reputation in our industry.
3.Price advantage, Because we are factory, our price is 4%-6% lower than middleman and trafficker at same level
4. Our sales is peofessional and will give your Detailed answers for your concerns, and we have a strong technical team for your special needs,such as OEM and ODM service
5. Our Tenet: put coustomers in mind, Customer requirements are fundamental to us, we make different solutions accroding different requirements of customers

Applications:

Now, with the development of society, led screen has been used to many areas, mainly divided into outdoor usage and indoor usage such as:

Outdoor advertising, indoor performance, outdoor and indoor rental bussiness, Public
places, Business usage.
For example: supermatket, restaurants, travelling agency, commercial plaza, Movie theaters,
clubs, commercial building, subway stations, airport stations, big outdoor advertising tv screen,

In all, many places need led screen for all kinds of usages, we just try our best to meet
the trends and needs, and do our best to make good products for our customers

After-sell Service:

Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost

Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours

we will reponse you in 24 houres if you have any question about the led screen,

maintenance guidance and problem solution supplied in 48 hours.

Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again

Free technical training for how to use and handle the software.

Customer satisfaction tracking report.

FAQ:

1.Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10

2.Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance

3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on

4.What's your delivery time?
Wthin 7-21 days after we receiving deposit

5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping

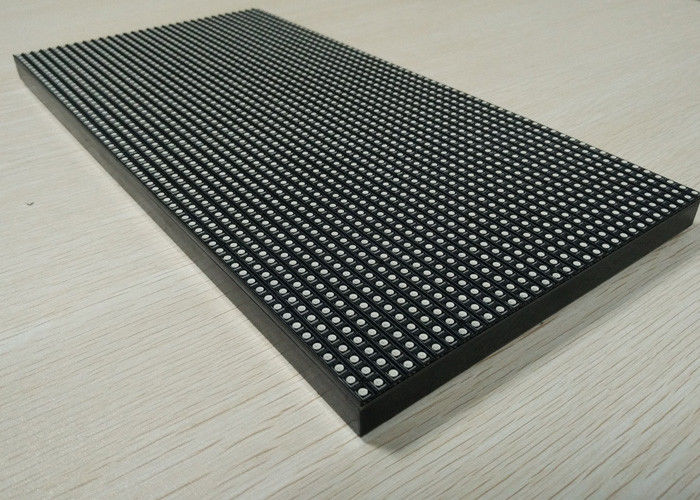

High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm 0

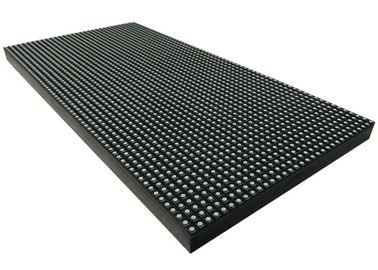

High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm 1

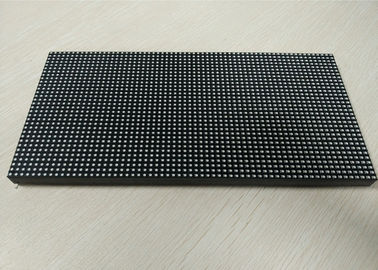

 High Contrast P5 RGB Led Module With Smd3528 Led Lamp 320mm * 160mm 2
