P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm

China SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD certification
China SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD certification
I have never seen a company which is so responsible for their customers like KAILITE, they are really care about me and my feelings, do good service Job that you can peace of mind

—— Robby

This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm

P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm
P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm

Large Image :  P4 RGB LED Screen , Indoor Stage Dance Floor Led Display With Standard Cabinet 640 * 640mm

Product Details:

Place of Origin: China (mainland)
Brand Name: kailite
Certification: CE, FCC, ROHS
Model Number: p4

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden Case; Flight Case
Delivery Time: 7-21 work days
Payment Terms: T/T
Supply Ability: 8000 square meters per month
Detailed Product Description
Pixel Pitch: 4mm Module Size: 256mm*128mm
Physical Density: 62500dots/sqm Usage: Indoor
Function: Video Cabinet Size: 640mm*640mm
Driving Method: 1/16 Scan Refresh Rate: 1200Hz
Warranty: 2 Years Life Time: >100,000 Hours
High Light:

rgb led display

,

rgb led panel

P4 Indoor Stage Dance Floor Led Screen , RGB Effective Images LED Wall



Quick Detail



1. New technical for video function led screen



2. It's a new styal of modensociety for all area indoor displays



3. Standard Cabinet 512*512mm(the specifucation is according to the module size)



4. For smd It has a wide viewing angel with a good light, good color mixing and the advantages of high contrast



5.Generally it's use the wooden case to package





Description



1. For p4 indoor rgb led screen with high definition and soft brightness not do harm to eyes



2.  The scope of application: shopping malls, businesses, schools, arena, banking, securities, public security, transport, industry and commerce, electricity, customs, hospitals, parks, airports, stations, stadiums, and other fields.





Product Features

1. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

2. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

3. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

4. Line-Double technology is adopted for the picture adjustment.

5. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.





Specifications



Item P4
Main parameters Technical parameters UNIT parameters values

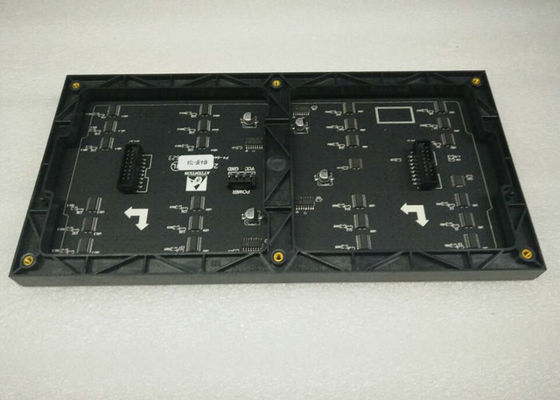

Module Parameters

Pixel pitch MM 4
Panel size MM L256*H128
Physical density /㎡ 62500Dots
Pixel Configuration R/G/B 1,1,1
Driving method   Constan current 1/16 scan
LED Encapsulotion SMD 2121
Display resulotion Dots 64*32
Moduel Power W 20























Display Parameters

Viewing Angle Deg H120V120
Option Distance M 4-28
Maximum Power W 860
Cabinet Size MM L512*H512
Frame Frequency Hz ≥60
Refresh Frequency Hz ≥1200
Equilibrium Brightness CD ≥1200
Operation Temperatuer
/Humidity
-30~+45/
10%~95%
Input Voltage VAC 220V±10%/110V±10%
Ingress Protection   IP43
Gray Scale/Color   ≥16.7M color
Brightness Contral   Manual/Automatic
Input Signal   RF/S-Video/RFB/etc
Contral Systerm   PCTV+DVI video
card+control
card+fiber
MTBF HOURS >5000
Life Time HOURS >100,000
Lamp Failure Frequency   <0.0001





P4 LED screen
