| Place of Origin: | China |
| Brand Name: | KAILITE |
| Certification: | CE FCC ROHS |
| Model Number: | P10 |
| Minimum Order Quantity: | 30 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case Packing ; Flight Case Packing |
| Delivery Time: | 10-21 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 6000 Square Meters Per Month |
| Module Size: | 320mm*160mm | Module Resolution: | 32*16 |
|---|---|---|---|
| Color: | Full Color | Weight: | 0.46kg |
| Module: | 45w | Led Lamp: | Smd3535 |
| Driving Method: | 1/2 Scan Constant Current | Warranty: | 2 Years |
| Life Time: | >100,000 Hours | Refresh Rate: | ≥1200Hz |
| Brightness Control : | Adjusted By PC | ||
| High Light: | led rgb module,led panel module |
||

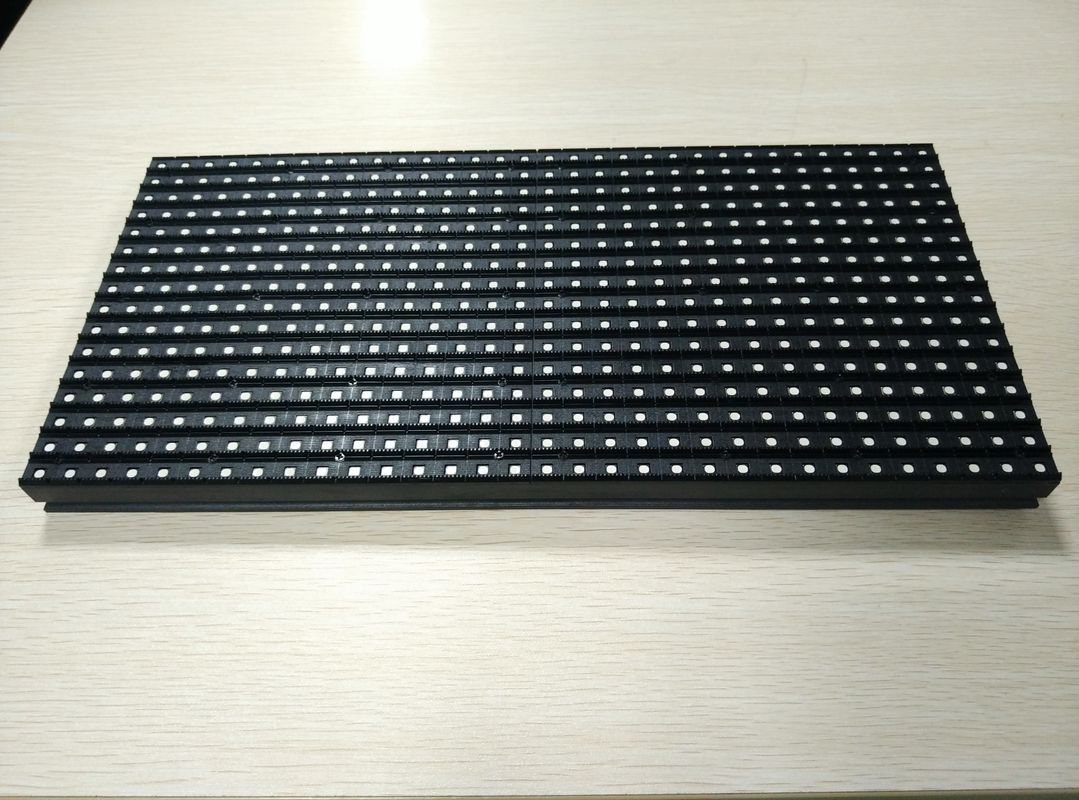

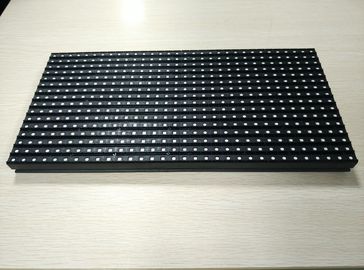

Wholesale P10 320mm*160mm Ourdoor Led Module With CE, ROHS, FCC, ISO9001
Quick Details:
Factory price with good quality.
More than 7000cd/sqm brightness & 1200 High refresh rate
Supporting OEM/ODM Service and providing personalized and complete solution for your case.
Convenient and fast installation;Easy maintenance
2 years warranty and life time maintence for all parts
Specifications:
| led module parameter | ||
| Technical parameters | UNIT | parameters Values |
| Pixel pitch | mm | 10 |
| module size | mm | 320*160 |
| Physical density | dots/㎡ | 10000 |
| Pixel configuration | RGB | 1,1,1 |
| Driving method | Constant current 1/4scan | |
| Led lamp | Smd | 3535 |
| module resolution | dots | 32*16 |
| Module weight | Kg | 0.46 |
| Module port | HUB75 | |
| Module consumption | W | 45 |
| led display parameter | ||
| Viewing angle | Deg. | H120 V120 |
| Viewing distance | m | 10-70 |
| Maximum power | W/㎡ | 850w |
| Frame Frequency | Hz | ≥60 |
| Refresh frequency | Hz | ≥1200 |
| Equilibrium brightness | cd/㎡ | ≥7000 |
| Working environment temperature | 0C | -30~60 |
| Display working voltage | VAC | 220V±15%/110V±15% |
| Gray scale/color | ≥16.7M color | |
| Input signal | RF S-Video RGB etc | |
| Control system | Nova/Linsn control system | |
| Mean free error time | hours | ＞5000 |
| life time | hours | ＞100,000 |
| Lamp failure frequency | ＜0.0001 | |
Features:
Stable & Good quality: we have stable raw materials suppliers such as The lamp; the IC; the
popwer supply; the control system etc. Every link, we have strict quality checks. and we have rich experience in outdoor led screen.
Supporting OEM/ODM service, and providing personalized and complete solutions for your case
Supporting many play files: videos, texts, pictures,graphics, PPT, Flashes and any sources
from TV,VCD,DVD and so on
HD & high refresh rate: the resolution for each led module is 32*16, so if the viewing
distance is 10 meters or more, the effect is good enough for this model.
Full color: adopt SMD3535 3 in 1 led lamps, excellent color performance and show the
content of the video best and reality
Waterproof led module and cabinet; Easy maintance & installation; relative low power
consumption; wide viewing angle
advantages:
1. 7 Years factory, We are led screen manufacturer for 7 years, we have rich experience in
outdoor and indoor led display, quality is guaranteed
2. Price advantage, Because we are factory, our price is 5%-10% lower than middleman and
trafficker at same level
3. Professional sales and technical team of 35 people to ensure perfect results
4. Our Tenet: put coustomers in mind, Customer requirements are fundamental to us, we make
different solutions accroding different requirements of customers
5. Up to 65% customers referral rate making us good reputation in this industrial
Applications:
Now, with the development of society, led screen has been used to many areas, such as:
Outdoor advertising, indoor performance, outdoor and indoor rental bussiness, Public
places, Business usage.
For example: supermatket, restaurants, travelling agency, commercial plaza, Movie theaters,
clubs, commercial building, subway stations, airport stations and so on.
In all, many places need led screen for all kinds of usages, we just try our best to meet
the trends and needs
After-sell Service:
Lifetime free maintenance and software upgrade service.
we will reponse you in 24 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.
FAQ:
1. Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2. Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance
3. What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4. What's your delivery time?
Wthin 7-21 days after we receiving deposit
5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea
