Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet

Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet

  • Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet
  • Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet
Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet
Product Details:
Place of Origin: China(mainland)
Brand Name: Kailite
Certification: CE,FCC,ROHS ISO9001
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 2 suqare meter
Price: Negotiation
Packaging Details: wooden case/ flight case packing
Delivery Time: 7-20 work days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 8000sqm per month
Contact Now
Detailed Product Description
Pixels: 10mm Color: Full-color
Driving Mode: Constant Driving 1/4 Module Size: 320mm*160mm
Led Chip: SMD 3535 Application: Outdoor
High Light:

smd led panel

,

led display smd



Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet


Main features

  •  Reliable magnetic capacitive character design
  •  Support various interfaces and signal sources
  •  Advanced digital control technology
  •  Support multi-transmission methods
  •  Network control
  •  Automatic brightness control
  •  Super processing ability
  •  Strong colour restoration
  •  Power full control software

Specification

1. P10 led screen outdoor
2. Factory price and good quality
3. Environmental-friendly and energy-saving.
4. Convenient and easy maintenance
5. Good heat dissipation capability because of the unique design of vent fan.


The details of P8 and P10


Pixel Pitch8mm10mm
Colorfull colorfull color
Use environmentoutdooroutdoor
pixel pitch8mm10mm
Module size256*128mm320*320mm
physical density15625 dots/square meter 10000dots/square meter
Pixel configuration 1R1G1B 1R1G1B
LED chipSMD3535SMD3535
Module resolution32*1632*32
Module power30w70w
Recommended viewing distance8-70m4-35m
Best viewing angle H: 120°; V:120° H: 120°; V:120°
Maximum power consumption850w620w
Average power consumption420w250w
Cabinet size 768*768mm960*960mm
Standard cabinet resolution96*9696*96
Standard cabinet Weight 42kg/panel50kg/panel
Driving method 1/4 Scan, Constant Current1/4 Scan, Constant Current
Video frame rate ≥60 Hz≥60 Hz
Rate refresh≥1200Hz≥1200Hz
White balance brightness≥6500cd≥7500cd
Operating temperature/Humidity -30℃~+45℃-30℃~+45℃
Ingress protection Front:IP 67; Back:IP65Front:IP 67; Back:IP65
Input voltage110-220V AC±10%110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)Display Colors ≥16.7N(Synchronize)
Brightness control Manual/AutomaticManual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etcRF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control systemPCTV+DVI video card+control card+fiberPCTV+DVI video card+control card+fiber
MBTF>500 hours>500 hours
Life time >100,000 Hours>100,000 Hours
The rate<0.0001<0.0001



Advantages

1. High quality
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.

2. High dispplay effect

High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.

3. Factory price

We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable.

4. Auto equipment

kailite has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.

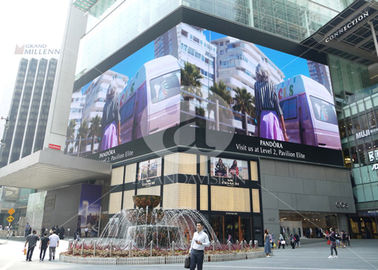

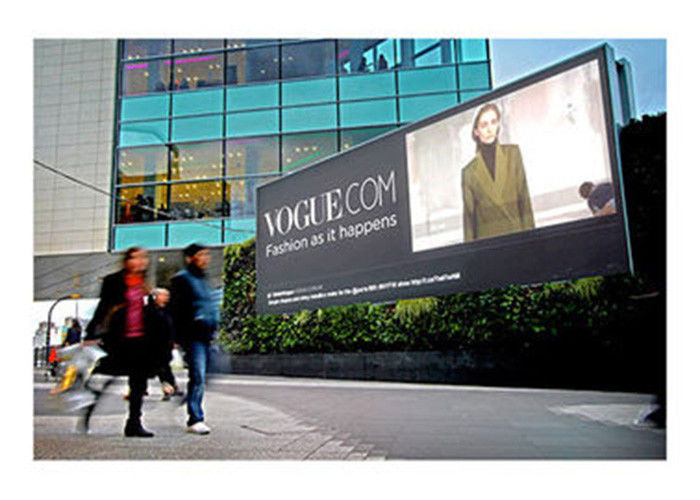

Sucsessful case


Wonderful visual effect Outdoor SMD LED Display screen 960mm x 960mm Cabinet 0
