Outdoor LED Video Walls Fixed Install , Large LED Display Screen High Brightness

Outdoor LED Video Walls Fixed Install , Large LED Display Screen High Brightness
Outdoor LED Video Walls Fixed Install , Large LED Display Screen High Brightness Outdoor LED Video Walls Fixed Install , Large LED Display Screen High Brightness

Large Image :  Outdoor LED Video Walls Fixed Install , Large LED Display Screen High Brightness

Product Details:

Place of Origin: China
Brand Name: KAILITE
Certification: CE FCC ROHS
Model Number: P8

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden case packing ; Flight case pacjing
Delivery Time: 8-14 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 6500 Square Meters Per Month
Detailed Product Description
Pixel Pitch: 8mm Physical Density: 15625dot/sqm
Brightness: >6500cd Resolution: 128*128 Dots
Cabinet Size: 1024*1024 Mm Supply Voltage: AC 220/110 ± 10 %,47~63Hz
Certification: CCC,ROHS,CE Grey Scale: 16384 Level
High Light:

led panel outdoor

,

led outdoor advertising screens

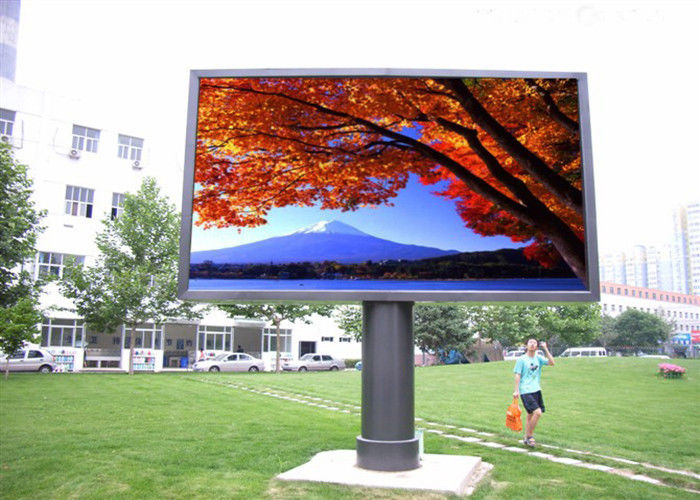

Outdoor LED Video Walls Fixed Install Advertising LED Sign Display



Product Description

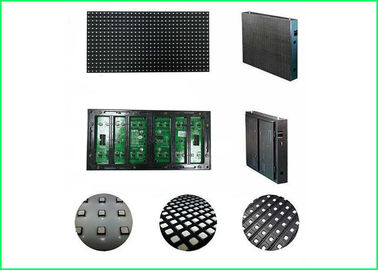

Outdoor fixed led display screen

Model number

P8

P10

P16

Pixel pitch

8mm

10mm

16mm

Module resolution

32*16

32*16

16*16

Module size

256mm*128mm

160mm*160mm

256mm*256mm

Pixel Density

15625(dot/sqm)

10000

3906

Brightness

6500(cd/sqm)

6500(cd/sqm)

6500(cd/sqm)

Weight

45(kg/sqm)

45(kg/sqm)

52(kg/sqm)

View angle

140 /140

LED configuration

SMD 3IN1

SMD 3IN1

1R1G1B

Scanning

1/4 scan

1/4 scan

Static

Max power

1000W

900W

1100w

consumption

Warranty

2 Years quality warranty

Grey Scale

16384 level

Working voltage

220VAC/50HZ 10%

Life span

>100000 hours

Lifetime to 50%

75,000hr

brightness

Temperature

-30°c+45°c

Service access

Rear

Certification

CCC,ROHS,CE

Grey Scale

16384 level


Main features



1. High precision

2. Wide view angle

2. Vivid image and video, rich in describing the details of color.

3. High brightness ≥ 6500 CD/m2, automatically brightness adjust to environment

4. IP65 and range working temperature design, can meet your outdoor using request



Trade terms


1. Hardware: LED screen and video controlling system
2. Parameter material: user manual, installation manual, and maintenance manual
5. Delivery: 15 -20 days
6. Packing: Anti-shaking wooden package or Air Flight Case
7. Transportation: By sea or air or Express

Our service


1. Your inquiry will be replied in 24hrs
2. The size can be change as you give.

3. Service: Provide free technology support by phone and e-mail
4. 2 years guarantee

Other products


Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.91, P4, P4.81, P5, P6
Outdoor fixed LED screen: P4,P5, P6, P8, P10
Outdoor rental LED screen: P3.91, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.667, P1.85
Stadium perimeter LED screen: P8, P10
Other product: DJ booth, Advertising board, taxi screen

Currently, KAILITE led display is already exported to Asia, Europe, South America, North America, Africa and Middle East. For more details, please feel free to contact us. We will give you best service and timely reply.



FAQ



Q1. What functions can be supported for system ?

A1. The system can support video, graphics, animation, text and live broadcast.



Q2. After payment,how many days can receive the goods?

A2. It takes 15-30days by shipping.And it takes 2-8days by flight.



Q3. Which model shows better for video, P5.95 or P4.81?

A3. P4.81 due to the higher resolution.



Q4. How could i contact you

A4. Please contact me for specific details of led display products.Add Scarlett whatsapp/wechat/skype+8618819440154 or Email:Scarlett@klt-ledscreen.com
