P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof

Good quality SMD Led Screen for sales
Good quality SMD Led Screen for sales
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof

China P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof supplier
P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof supplier P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof supplier

Large Image :  P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof

Product Details:

Place of Origin: Shenzhen, China(mainland)
Brand Name: Kailite
Certification: CE,FCC,ROHS ISO9001
Model Number: P4 P5 P6 P8 P10 P16

Payment & Shipping Terms:

Minimum Order Quantity: 2 suqare meter
Price: Negotiation
Packaging Details: wooden case/ flight case packing
Delivery Time: 5--20 working days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 8000sqm per month
Contact Now
Detailed Product Description
Module Port:: HUB75-B Module Consumption: 30W
Display Resolution: 32X32=1024dots Driving Method: Constant Current 1/8scan
Pixel Density: 27777/m2 Model Number:: P6

P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof



Product Features:

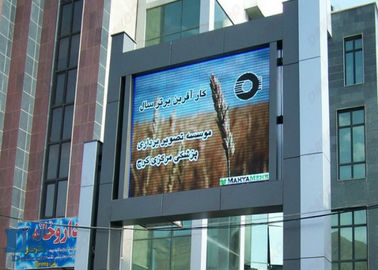

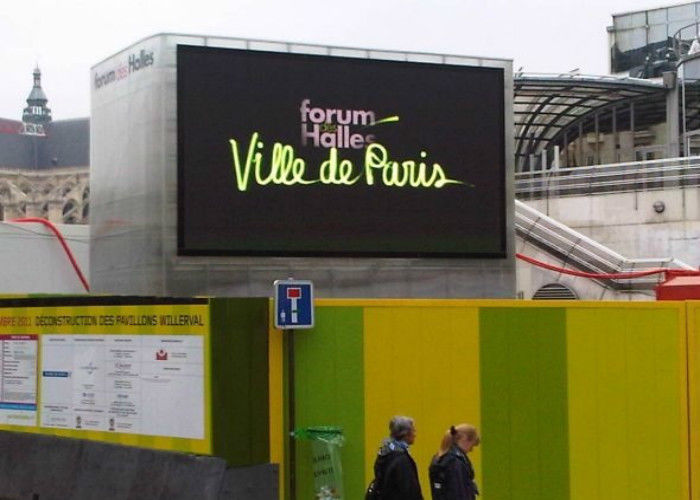

  • Full color outdoor advertising LED Display Screen displays perfect vivis image, video, animation, flash, txt.
  • Super brightness and waterproof is the best product for outdoor daily and night use.
  • Wireless control and energy saving is the best choice for advertising billboard permanently.
  • LED Display Cabinet design for easy install and dismantle.



Product Technical Specification:



Pitch/mm P4 P5 P6 P8 P10 P16
Module size/mm 128x128 160x160 192x96 256x128 160x160 256x256
Density of pixel/(dots/m2) 62500 40,000 27,777 15,625 10,000 3,906
Pixel composition SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 1R1G1B
Led encapsulation SMD1921 SMD2727 SMD3535 SMD3535 DIP346/SMD3535 DIP346
Optimum viewing distance 4-16m ≥5m ≥6m ≥8m ≥10m ≥16m
View angle / ° 140 H,120 V 140 H,120 V 140 H,120 V 140H,120V 110 H,60 V 110 H,60 V
Average power consumption/W/M2 1,000 1,000 900 500 450 350
Size of cabinet/mm 1024X1024 960X960 960X960 1024X1024 960X960 1024X1024
Driving method 1/16 scan constant current 1/8 scan constant current 1/8 scan constant current 1/4 scan constant current 1/2 scan constant current Static constant current
Refresh rate Hz/S ≥2400 ≥2400 ≥2400 ≥2400 ≥2400 ≥2400
Luminance of white balance ≥6000 nits ≥6000 nits ≥6000 nits ≥6000 nits ≥6000 nits ≥6000 nits
Operation of Environmental Temperature/℃ (-30℃~+50℃)
IP rating IP65
Working voltage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 4096 levels of each color(manually),100 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Linsn / Nova(sending card,receiving cards and Hubs)
Average of non-failure life >50,000h
Life span >100,000h
Functionless dot rate <0.0001



Our Services

1) Reply your inquiry in 24*7 working hours.
2) Professional staffs answer all your question in fluent English.
3) Personalized solution will be provided to you by our veteran and professional engineers and staffs.
4) Warranty: Two-Five Years, a little investment for longer warranty time.
5) Special discount and protection of sales area provided to our distributor.

FAQ


1. How can i place an order?


Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display we provide?


We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.

3. What about the lead time for order?


Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days


4.How about the warranty ?


We have two years warranty.



P4 P5 P6 P8 P10 P16 Full Color Outdoor Led Video Wall HD Great Weatherproof
