| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | CE RoHS ISO9001 UL FCC CCC |
| Model Number: | P8 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case/Flight case |
| Delivery Time: | about 22-24 days |
| Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
| Supply Ability: | 8000 square meters per month |
| Product Name: | P8 LED Outdoor Signs For Business | Pixel Pitch: | 8mm |
|---|---|---|---|
| Cabinet Size: | 960*960mm | Cabinet Resolution: | 120*120 |
| Screen Dimension: | Customized | Brightness: | ≥6000nits |
| Application: | Outdoor Poster Billboard Signage | Refresh Rate: | 1920-3840Hz |
| High Light: | 6000nits Outdoor Full Color Led Display,3840Hz Outdoor Full Color Led Display,6000nits Business LED Signs |
||
High Brightness 6000nits Outdoor Full Color Led Display For Business
Customized P4 P5 P8 P10 LED Outdoor Signs For Business High Brightness
Quick details of P8 LED Outdoor Signs
1. Maintenance way: Front
2. Scan method: 1/5 Scan
3. LED type: SMD3535
4. Physical density: 15625 dot/ m2
5. Cabinet material: Iron or aluminum
Specification of P4 P5 P8 P10 LED Outdoor Signs
| Item | P4 | P5 | P8 | P10 |
| Pixel pitch | 4mm | 5mm | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
| Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
| Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
| Cabinet material | Iron or aluminum | Iron or aluminum | Iron or aluminum | Iron or aluminum |
| Maintenance way | Rear | Rear | Rear | Rear |
| Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of LED Outdoor Signs
1. High brightness(≥6000nits), IP65 grade, keep clear under the sunlight.
2. High refresh rate(1920-3840Hz) and 12-16 bit Grey level make picture&video vivid.
3. Use brand lamps and control system such as Nationstar, Novastar.
4. Every product has been strictly tested before shipment.
5. We are a 14 years leading LED display manufacturer, can provide most competetive factory price.

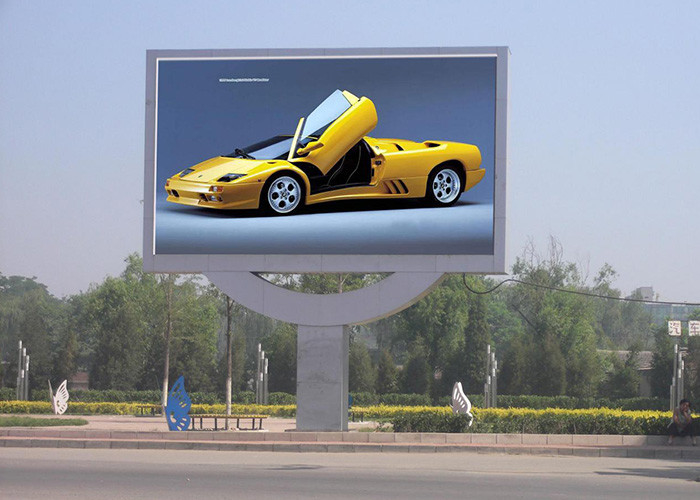

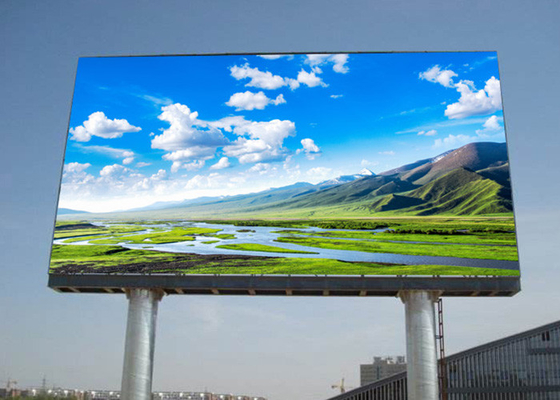

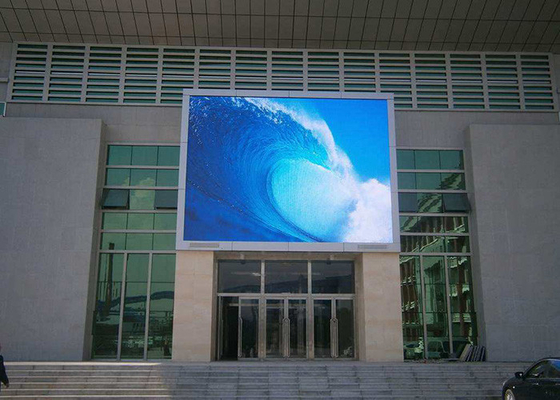

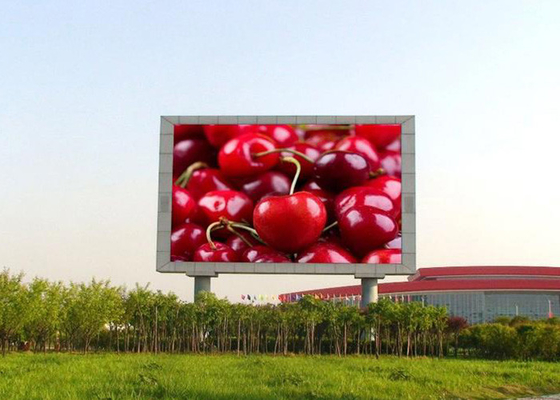

Applications:
Almost everywhere which you go through every day. Shopping malls, Bus station, Subway, Hospital, School, Large sports playground, Baseball field etc. With high brigthness and great protection from dust and moisture, they are used at outdoor places quite a lot and keep working for a long time.
After-sell Service:
1. Hotline service at 24 hours, including counseling and technical guidance.
2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
3. Provide remote control debuggine service for free as you wish.
4. Installation guidance by experienced staff online.
FAQ:
1. How long time is needed to produce?
Our production time is 3-15 working days, and may prolong if large quantity.
2. Are you trading company or manufacturer?
We are a 14 years leading factory, specialzied in led screen industry.
3. What is the control system?
Novastar/LINSN/Colorlight for synchronous system, Novastar/Huidu for asynchronous system. we have several options for customer.
4. Can you print my logo on products?
Yes, and we can do it for free.
5. What about the package and shipping way?
most situation packed with woden case and flight case,it's up to customers; delivered by air shipping or sea shipping.
