Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving

Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving

Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving
Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving
Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P5 Outdoor Digital Display Signs Pixel Pitch: 5mm
Cabinet Size: 960*960mm Screen Dimension: Customized
Refresh Rate: 1920-3840Hz Application: Signage Poster Commercial Ads Billboard
Color: 1R1G1B Ingress Protection: IP65
High Light:

1R1G1B LED Digital Display Signs

,

40000 dots LED Digital Display Signs

,

1R1G1B Led Digital Display Board

Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving



RGB Full waterproof P4 P5 P8 Outdoor Digital Display Signs Energy-saving



Quick details of P5 Outdoor Digital Display Signs



1. Warranty: 2 years



2. Brightness: ≥5500nits



3. Driving method: 1/8Scan,Constant Current



4. Physical density: 40000 dots/㎡



5. Life span: >100,000 Hours




Product Specification(P4 P5 P8 P10)


Item KP4 KP5 KP8 KP10
Pixel pitch 4mm 5mm 8mm 10mm
Module size 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 80×40 64×32 40×20 32×16
Physical density 62500 dots/㎡ 40000 dots/㎡ 15625 dots/㎡ 10000 dots/㎡
LED type SMD1921 SMD1921 SMD3535 SMD3535
Cabinet size 960×960×mm 960×960×mm 960×960×mm 960×960×mm
Cabinet resolution 240×240 192×192 120×120 96×96
Cabinet material Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum
Maintenance way Rear Rear Rear Rear
Best viewing distance ≥4m ≥5m ≥8m ≥10m
Best viewing angle H: 140°; V:140° H: 140°; V:140° H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/10Scan 1/8 Scan 1/5 Scan, 1/2 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥5500nits ≥5500nits ≥6000nits ≥6000nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP65 IP65 IP65 IP65
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002






Features of Outdoor Digital Display Signs


1. High refresh rate.



2. Low power consumption.


3. Strict test of all processs and Low defective rate, quality is guatanteed.


4. Custom made according to clients' demand.


5. IP65 grade, High bightness(≥5500nits), adapt to outdoor environment.

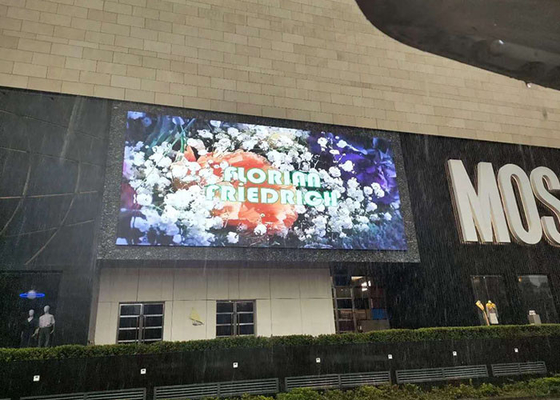

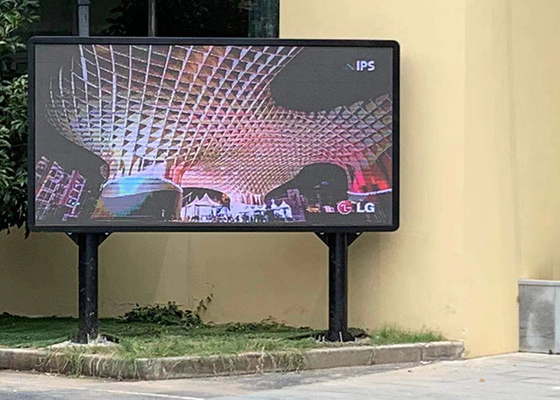

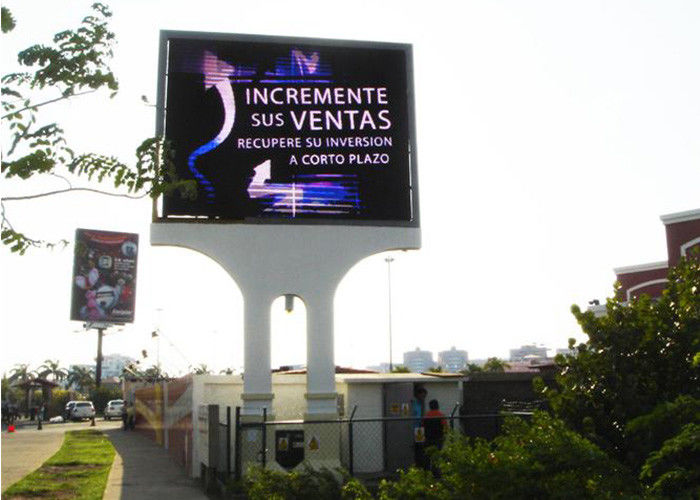

Applications of Outdoor Digital Display Signs



Outdoor digital display signs are mainly used for advertising, they could customed size, so could be used at many places, such as alongside the street, exterior wall of shopping center, business center, parks, almost everywhere people concentrate in.





Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving 0

Waterproof P4 P5 P8 1R1G1B LED Digital Display Signs Energy Saving 1




After-sell service:


1. 2 years quality guarantee period for all parts.


2. Failure maintenance of LED panels.


3. Free remote control debuggine serice if you need.


4. Online service in 7*24 hours if you have any question about the led screen.


5. Free technical training from experienced staff.


FAQ:


1. Do you test all your goods?

Yes, we have 100% test before shipment.


2. Can you accept OEM/ODM ?
Yes, we can, and we can print logos for free.


3. Are you factory or manufacturer?
We are factory and manufacturer with most competitive factory price.


4. What is your terms of payment?

T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.



5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
