Novastar System Outdoor Signage Display LED Panel Full Color SMD3535

Novastar System Outdoor Signage Display LED Panel Full Color SMD3535

Novastar System Outdoor Signage Display LED Panel Full Color SMD3535
Novastar System Outdoor Signage Display LED Panel Full Color SMD3535
Novastar System Outdoor Signage Display LED Panel Full Color SMD3535
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P10 Outdoor Signage Display LED Panel Pixel Pitch: 10mm
Screen Dimension: Customized Brightness: ≥6000 Cd/sqm
Color: Full Color Life Time: >100,000 Hours
High Light:

Novastar System Outdoor Signage Display

,

Novastar System LED Panel Display

,

SMD3535 Outdoor Signage Display

Novastar System Outdoor Signage Display LED Panel Full Color SMD3535



P4 P5 P8 P10 Outdoor Signage Display LED Panel Novastar System SMD3535



Quick details of P10 Outdoor Signage Display LED Panel



1. Module size: 320*160mm



2. Cabinet size: 960*960mm



3.  LED type: SMD3535



4. Cabinet material: iron/die-casting aluminum



5. Maintenance way: Rear





Product Specification



Item P5 P10
Pixel pitch 5mm 10mm
Module size 320*160mm 320*160mm
Module resolution 64×32 32×16
Physical density 40000 dots/㎡ 10000 dots/㎡
LED type SMD1921 SMD3535
Cabinet size 960×960mm 960×960mm
Cabinet resolution 192×192 96×96
Maintenance way Rear Rear
Best viewing distance ≥5m ≥10m
Best viewing angle H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/8 Scan 1/2 Scan
Video frame rate ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz
Brightness ≥5500nits ≥6000nits
Grey Level 12-16bit 12-16bit
Ingress protection IP65 IP65
Life Time >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002





Features of our Outdoor Signage Display LED Panel



1. High brightness & full color, clear and beautiful at outside.



2. Shape and size could be customized, satisfy various requests.



3. IP65 protection.



4. Competitive factory price, with guaranteed quality.


5. Wide viewing angle(H: 140°; V:140°).

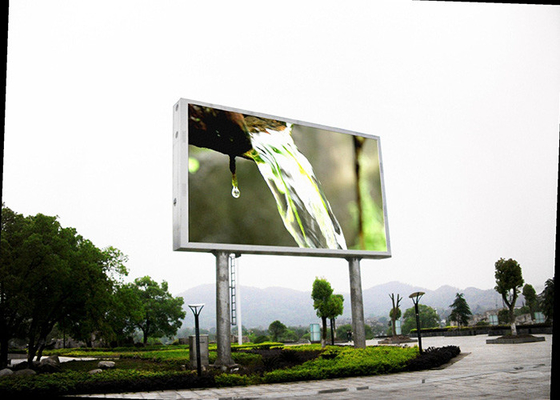

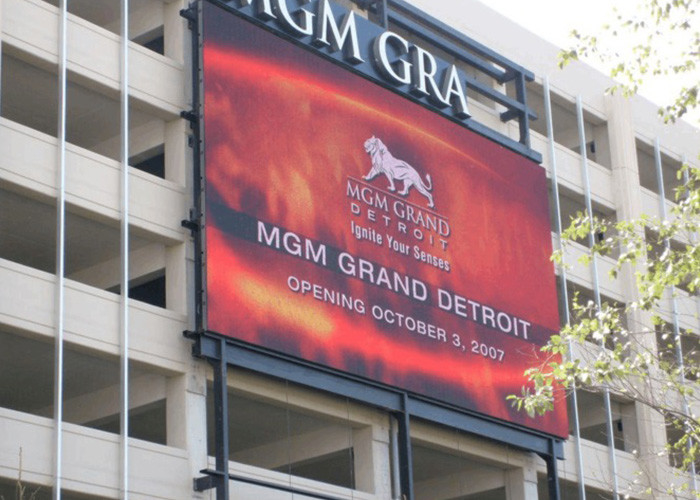

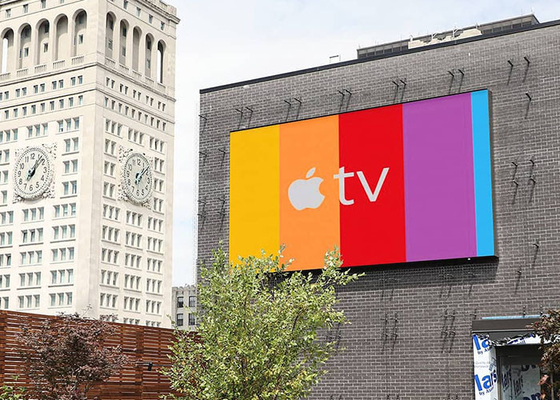

Applications of Outdoor Signage Display LED Panel



Outdoor signage display LED panel are used in various public places, you can find them everywhere, like highway, subway, shopping mall, exterior of stores, commercial center. most of them are used for advertising, signage, background.



Novastar System Outdoor Signage Display LED Panel Full Color SMD3535 0Novastar System Outdoor Signage Display LED Panel Full Color SMD3535 1Novastar System Outdoor Signage Display LED Panel Full Color SMD3535 2





After-sell Service:


1. 2 years quality guarantee for all parts.


2. Providing free and spare accessories, such as power and data cables.


3. Failure maintenance of LED panels.


4. Free professional technical training.



5. Experienced engineers and technicians provide solutions to all kinds of question.





FAQ:



1. Is the product customizable?
Yes, we can customize the product according to customers' requirement.


2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.





3. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.





4. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.



5. What is your MOQ?

Any quantity is acceptable for your order. And the price is negotiable for large quantity.
