Product Details:
Place of Origin: Shenzhen, China
Brand Name: KAILITE
Certification: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
Model Number: P1.53 P1.86 P2.5 P3 P4 P5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiatable
Packaging Details: carton/ wooden case/fight case
Delivery Time: about 22 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 9000 square meters per month
Contact Now
Detailed Product Description
Warranty: 2 Years Brightness: >800nits
Module Size: 320x160mm/240*120mm Application: Exhibition
Life Span: 100000 Hours Color: Full Color
Led Type: SMD2121 Video Frame Rate: 60Hz
High Light:

Bendable Flexible Led Panel Screen

,

320*160mm Module Flexible Color Display

,

Full Color Bendable Led Screens

Indoor Bendable Flexible Led Panel Screen HD P2.5 320*160mm Module Size



Indoor Flexible Color Display HD P2.5 320*160mm Bendable Led Screens



Description of Bendable Led Screens

Flexible led screen is a high flexible electronics display technology. It is made of flexible printed circuit board, flexible substrate and flexible fiber, so that the whole display screen can be folded, curled and bent, which can adapt to different occasions and space requirements and provide more possibilities for carrying and displaying.





Specifications of Bendable Led Screens

Item P1.5 P1.8 P2 P2.5
Pixel pitch 1.53mm 1.86mm 2mm 2.5mm
Module size 320*160mm 320*160mm 320*160mm 240*120mm
Module size 208*104 172*86 160*80 96*48
Physical density  422752dots/㎡ 289050 dots/㎡  250000dots/㎡  160000dots/㎡
LED type SMD1212 SMD1515 SMD1515 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥1.5m ≥1.8m ≥2m ≥2.5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/52 Scan 1/43 Scan 1/40 Scan 1/24 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002





Features of Bendable Led Screens

1. Driving method:52s/43s/40s/24s



2. Anti-interfrence:Has strong anti-static interference ability, which can effectively resist external high-frequency interference and ensure the clarity of the picture



3. Thinner design, not effect overall structure.



4. More durable +thin+high endurance

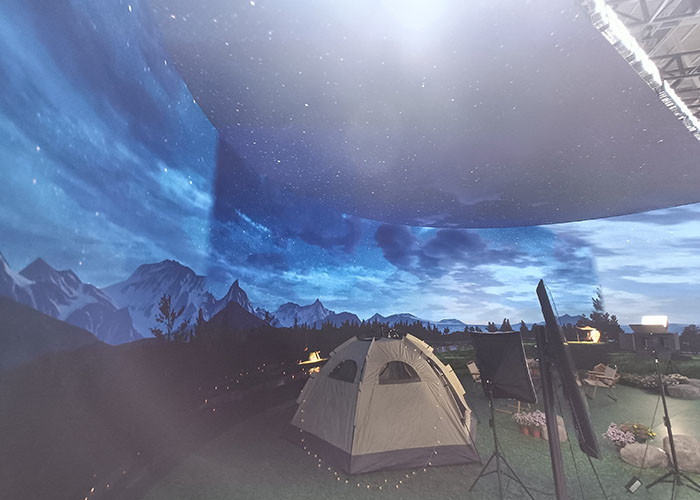

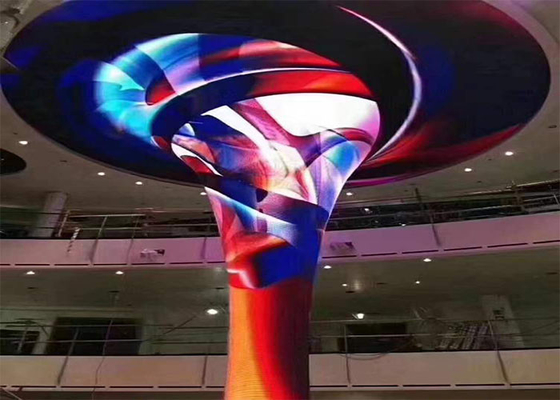

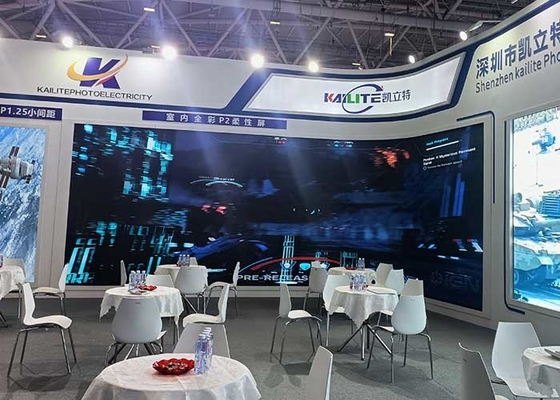

Indoor Bendable Flexible Led Panel Screen HD P2.5 320*160mm Module Size 0

Indoor Bendable Flexible Led Panel Screen HD P2.5 320*160mm Module Size 1





Application of Bendable Led Screens

It can be widely used in indoor and outdoor occasions.such as exhibitions, concerts, speeches, advertisements, sports events, etc., and has achieved good visual effects and advertising effects.





Why choose KAILITE?

1. More reliable, we have 14 years experience.



2. Dual-test, the QC will do the first inspection, and the salesman will do the final inspection.



3. Quickly response.we are online 24 hours,welcome to consult.



4. We are factory so that we can provide factory direct price for you.





After-sell Service:
1) 2 years warranty for all parts



2) Free instructure giude will be send to you.

3) We can provide remote service for you.

4) we will reponse you anytime in 7*24 houres if you have any question about the led screen,

6) Free technical training for how to use and handle the software.





FAQ:

1. do you have factory?

yes, we have.



2. How long is the warranty?
A:2 years.



3: Can you send me a instructional video?

Yes, sure. we will try our best to help you.



4. Do you support customized?

Yes sure. Our products can be customized according to your requirement.
