Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE UL FCC CCC RoHS ISO9001 |
Model Number: | P2 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | about 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 8000 square meters per month |
Product Name: | P2 Indoor Led Wall Panel | Module Size: | 320x160mm |
---|---|---|---|
Screen Dimension: | Customized | Best Viewing Distance: | ≥2.5m |
Refresh Rate: | 1920-3840Hz | Led Type: | SMD1515 |
Application: | Conference Stage Events Ads | Grey Level: | 12-16bit |
High Light: | Front Maintenance Indoor Full Color Led Display,Seamless Splicing Indoor Full Color Led Display,Seamless Splicing LED Wall Panel |
4K Front Maintenance Indoor Full Color Led Display Seamless Splicing
4K Front Maintenance P2 P4 Indoor Led Wall Panel Seamless Splicing
Quick details of Indoor Led Wall Panel
1. Best viewing distance: ≥2.5m
2. Physical density: 250000 dots/㎡
3. Cabinet material: Iron or die-casting aluminum
4. Video frame rate: ≥60 Hz
5. Ingress protection: IP43
Product Specification
Pixel pitch | 2mm | 3.076mm | 4mm |
Module size | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 160×80 | 104×52 | 80×40 |
Physical density | 250000 dots/㎡ | 105688 dots/㎡ | 62500 dots/㎡ |
LED type | SMD1515 | SMD2020 | SMD2020 |
Cabinet size | 640*480mm | 640*480mm | 640*480mm |
Cabinet resolution | 320*240 | 208*156 | 160*120 |
Maintenance way | Front | Front | Front |
Best viewing distance | ≥2.5m | ≥3m | ≥3m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/26 Scan, | 1/20 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 |
Features of Indoor Led Wall Panel
1. High definition, physical density(250000 dots/㎡).
2. System can support DVI/HDMI/VGA connection patterns, suit for various situation.
3. Strict quality control examinations for all parts
4. Low defective rate(<0.0002), long life time(>100,000 Hours)
5. We have custom service to cater to customer's request.

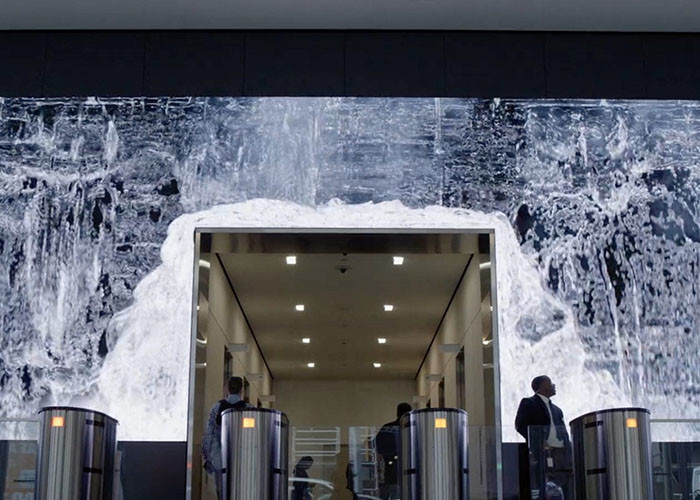

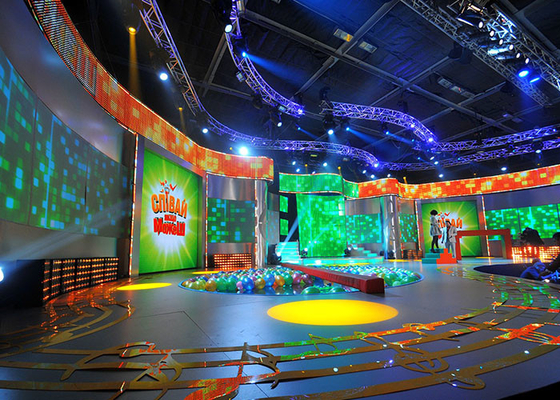

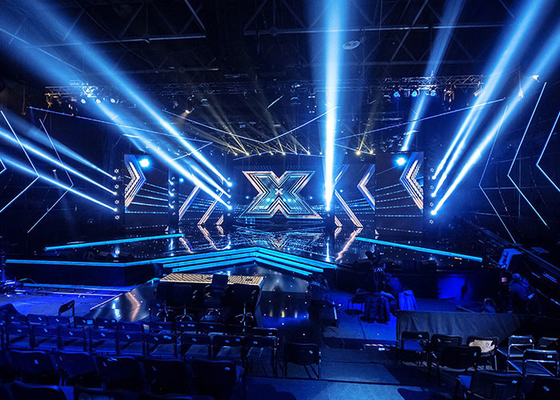

Applications of Indoor Led Wall Panel
1. Commercial Ads for shopping mall, store, restaurants.
2. Signage for school, hospital, church.
3. Live show, conference, control room.
4. Stage events such as concert, exhibition, etc.
After-sell Service
1. 2 years warranty for all parts
2. Accessories such as power and data cables are free.
3. Online guidance of installation, save your time.
4. Free remote control debuggine serice when necessary.
5. Failure maintenance of LED panels.
FAQ:
1. Could you print logo on the products.
Yes, we could do it for free.
2. Are you factory? and your warranty?
yes we are 14 years leading factory, led screen manu. we provide 2 years warranty.
3. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
4. Do you test all your goods before delivery?
Yes, we have 100% test at the production line and before delivery.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
