| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4,P5, P8, P10 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Wooden case |
| Delivery Time: | 22-24 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000 square meters per month |
| Pixel Pitch: | 5mm 8mm 10mm | Module Size: | 320*160mm |
|---|---|---|---|
| LED Type: | SMD3535 SMD1921 | Cabinet Size: | 960*960mm |
| Cabinet Material: | Iron | Video Frame Rate : | ≥60 Hz |
| The Rate: | <0.0002 | Color: | Full Color |
| High Light: | Waterproof Outdoor Full Color Led Display,Full HD Outdoor Full Color Led Display,Splice Screen Waterproof Led Display |
||
Waterproof Led Display Splice Screen P5 Outdoor Advertising Full HD Video Panel
Led Display Full Color Outdoor P5 P8 P10 IP65 HD Led Video Display
Description of outdoor led advertisement board
Outdoor LED display screens are a type of LED screen specifically designed for outdoor environments. They have high brightness, waterproof, and high-temperature resistance characteristics, allowing them to function properly even in direct sunlight and adverse weather conditions.
Specifications of outdoor led advertisement board
| Item | P5 | P8 | P10 |
| Pixel pitch | 5mm | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 64×32 | 40×20 | 32×16 |
| Physical density | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD1921 | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm |
| Cabinet resolution | 192×192 | 120×120 | 96×96 |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear | Rear |
| Best viewing distance | ≥5m | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥6000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of outdoor led advertisement board
1. Easy Maintenance: These screens are designed for easy maintenance, with features like front or rear access for quick repairs and module-based design for easy replacement of faulty components.
2. Excellent Image and Video Quality: Outdoor LED display screens offer high-resolution images and videos with vivid colors, sharp contrast, and high refresh rates, ensuring a superior visual experience.
3. Remote Monitoring and Control: These screens can be remotely controlled and monitored using a centralized system, allowing easy management, scheduling, and content updates.
4. Customizable Sizes and Shapes: Outdoor LED display screens come in various sizes and shapes to fit different installation requirements. They can be customized to create unique and eye-catching designs.
Application of outdoor led advertisement board

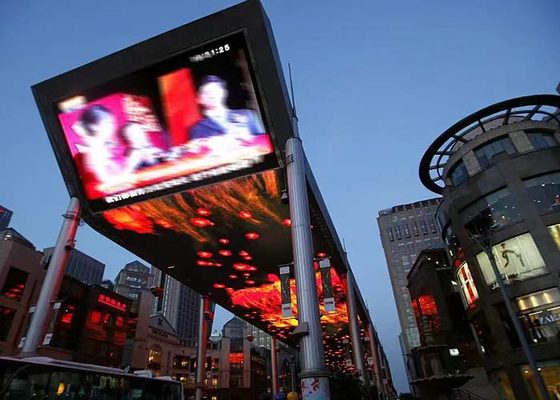

Outdoor LED display screens can adapt to different environments, such as busy streets, stadiums, outdoor events, and scenic spots, providing versatile advertising and informational solutions.
Why choose KAILITE?
1) 2 years warranty for all parts of the led screen.
2) Providing free remote control debuggine serice for you.
3) We are standing by here to work for you at 7*24 hours. Any question, any time , you can contact us.
4) Failure under nomal use, we will reponsibe for maintenance.
After-sell Service:
1) A two-year warranty.
2) Under normal use, we will be responsible for any damage.
3) good service, if there any issues with our products, we will take our reponsibility.
FAQ:
1. What kind of led screen do you produce?
Fine pixel pitch led screens, Indoor/outdoor fixed led screens, stage rental led screens, stadium perimeter led screens.
2. What is the warranty of your led display?
We offer 2 year warranty.
3: What is the size of your factory?
We have 10000 square meters workplant with 2000 square meters office area.
4. Do you support ptinting logo on the led screen?
Sure, we can put your logo without extra cost.
