Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store

Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store

Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store
Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store
Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS UL FCC CCC ISO9001
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case or flight case
Delivery Time: About 22-24 days on average
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P2.5 Splicing Poster LED Screen Lamp Type: SMD2020
Used: Entrance Of Company Or Store Maintenance Way: Front
Refresh Rate: 1920-3840Hz Ingress Protection: IP43
High Light:

Splicing Poster LED Screen

,

Moveable Poster LED Screen

Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store





Quick details of P2.5 Splicing Poster LED Screen



1, Pixel Pitch: 2.5mm


2, Driving method: 1/32 Scan, constant current


3, Best viewing angle: H: 160°; V:160°


4, Input voltage:110-240V AC



5, Regular full screen size: 640mm(Width)*1920mm(Height)





Specification of products(P1.86 P2 P2.5)



Item P1.86 P2 P2.5
Pixel pitch 1.86mm 2mm 2.5mm
Module size 320*160mm 320*160mm 320*160mm
Module resolution 172×86 160×80 128×64
Physical density 289050 dots/㎡ 250000 dots/㎡ 160000 dots/㎡
LED type SMD1515 SMD1515 SMD2020
Cabinet size 640*480mm 640*480mm 640*480mm
Cabinet resolution 384*258 320*240 256*192
Maintenance way Front Front Front
Best viewing distance ≥1.8m ≥2m ≥2.5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/43 Scan 1/40 Scan 1/32 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002





Features of Splicing Poster LED Screen



1. Front maintenance way, easy to replace module and repair components.



2. Video frame rate(≥60 Hz), screen smoother.



3. Made up of several cabinets spliced together, could save transportation space.



4. Several Poster LED screen could be seamlessly spliced together to form a larger screen.



5. Grey Level(12-16bit).





Applications of Splicing Poster LED Screen



1. Entrance of company, stores, shopping mall.



2. Background of conference room.



3. Information board at High way station and airport.



4. Introduction panel at exhibition.



Cases

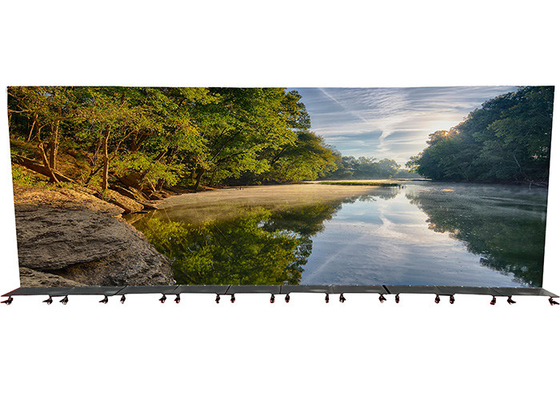

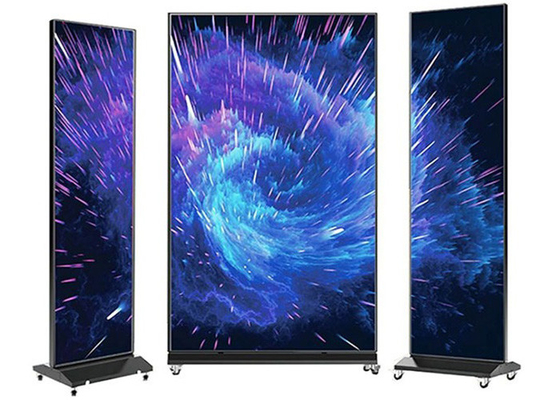

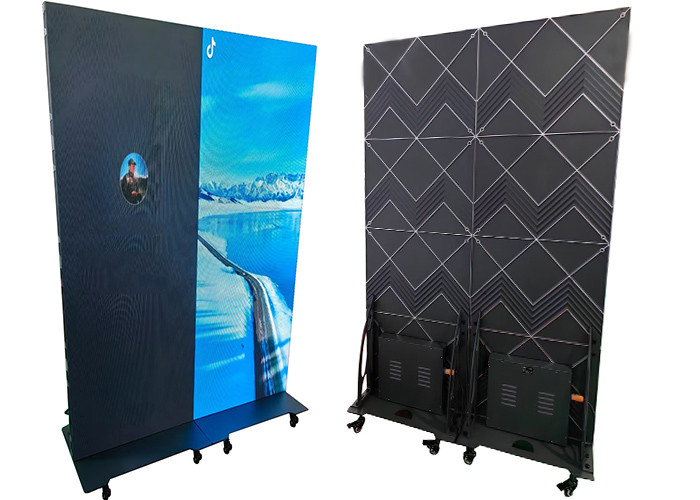

Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store 0Splicing Poster LED Screen P1.86 P2 P2.5 Moveable For Company Entrance Store 1





Advantages:



1. Strict quality control ability for full production process.



2. Exclusive design of cabinet.



3. Pin connection, Increase security and stability



4. Factory supply, best price and convenient to custom made.



5. High contrast, rich color, looks smooth and vivid.





After-sell service:



1) Online service of professional staff.



2) Free remote control debuggine serice if you need.



3) 2 years warranty, and could be be extended by paying additional fee.



4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



5) Provide solutions to technical problems when playback is abnormal.




FAQ:



1. Is the product customizable?

Yes, we can customize the product according to customers' demand, you just need to provide the details.



2. How can I make sure you are a manufacturer?

You can search on the internet or have a video call with our staff, even a visit to our factory is welcomed if you are in Shenzhen.



3. What is the delivery time?
About 22-24 days after we receiving the deposit.



4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.





5. What’s your control system? How is it?
Our most common used system is Novastar, famous brand and good quality.
