High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS

Good quality SMD Led Screen for sales
Good quality SMD Led Screen for sales
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS

China High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS supplier
High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS supplier High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS supplier High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS supplier

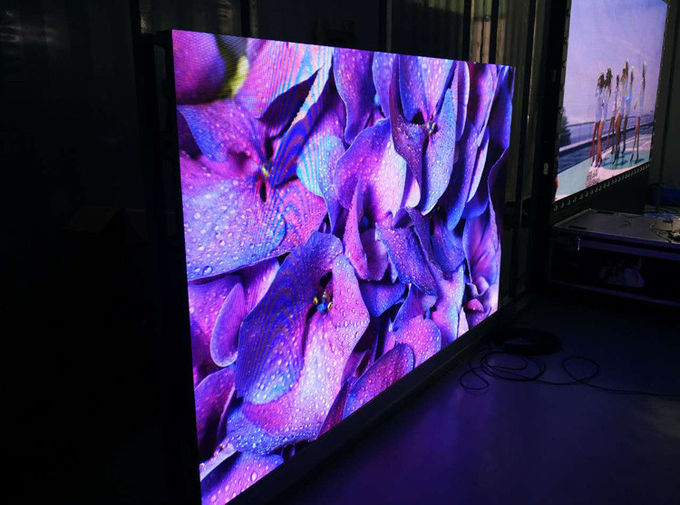

Large Image :  High Resolution Led Display Video Wall / P2.5 Indoor Led Screen For Rental , FCC ROHS

Product Details:

Place of Origin: China
Brand Name: KAILITE
Certification: CE FCC ROHS
Model Number: P2.5

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden Case Packing ; Flight Case Packing
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, D/A, D/P,
Supply Ability: 10000 Square Meters Per Month
Contact Now
Detailed Product Description
Pixel Pitch: 2.5 Mm Module Size: 160mm*160mm
Module Resolution: 64*64 Cabinet Size: 480mm*480mm
Maximum Power: 800w Led Lamp: Smd2121
Module Power: 15 W IC: MBI5124
Driving Method      : 1/32 Scan, Constant Current

High Resolution And Good Performance P2.5 Indoor Led Screen For Rental Usage


Specifications:

led module parameter
Technical parameters UNIT parameters Values
Pixel pitch mm 2.5
module size mm 160*160
Physical density dots/㎡ 160000
Pixel configuration RGB 1,1,1
Driving method   Constant current 1/32scan
Led lamp Smd 2121
module resolution dots 64*64
Module weight Kg 0.3
Module port   HUB75
Module consumption W 15
led display parameter
Viewing angle Deg. H120 V120
Viewing distance m 2.5-18
Maximum power W/㎡ 800w
Frame Frequency Hz ≥60
Refresh frequency Hz ≥1300
Equilibrium brightness cd/㎡ ≥1500
Working environment temperature 0C -40~60
Display working voltage VAC 220V±15%/110V±15%
Gray scale/color   ≥16.7M color
Input signal   RF S-Video RGB etc
Control system   Nova/Linsn control system
Mean free error time hours >5000
life time hours >100,000
Lamp failure frequency   <0.0001


Features:
1.Ultra-thin & ultra-light
2.Die casted AL cabinets, high precision with seamless splicing
3.Standard cabinet size: 480x480mm, convenient for area calculation
4.Highly effective & quick for transportation and screen assembling
5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6.Special buckles structural connection between the cabinets,don’t need other tools
7.Cabinets are in common use for standard modules,shorten production cycle

Four main reasons why our customer choose us
1. We are led display manufacturer for many years, quality is guaranteed
2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level
3. Professional sales and technical team of 21 people to ensure perfect results
4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers

After-sell Service:

Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take Pay the cost

Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours

we will reponse you in 24 houres if you have any question about the led screen,

maintenance guidance and problem solution supplied in 48 hours.

Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again

Free technical training for how to use and handle the software.

Customer satisfaction tracking report.

FAQ:

1.Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10

2.Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance

3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on

4.What's your delivery time?
Wthin 7-21 days after we receiving deposit

5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
