| Place of Origin: | Guangdong,China |
| Brand Name: | Kailite |
| Certification: | CE FCC ROHS |
| Model Number: | P3 indoor |
| Minimum Order Quantity: | 2SQM |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight package and Wood package |
| Delivery Time: | 15 days after receive the deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500SQM/per mouth |
| Color: | Full-color | Use Environment: | Indoor |
|---|---|---|---|
| Pixel Pitch: | 3mm | Module Size: | 192*96mm |
| Physical Density : | 111111dots/㎡ | LED Chip: | SMD2121 |
| Module Resolution: | 64*32 | Module Power: | 15w |
| Best Viewing Angle : | H: 120°; V:120° | Maximum Power Consumption: | 800w |
| Cabinet Size : | W576m×H576mm | Operating Temperature: | -30℃~45℃ |
| Rate Refresh: | ≥1200Hz | Life Time: | >100,000hours |
| High Light: | rgb led display,rgb led panel |
||
Video movie player HD Indoor P3 full colour Led Screen Rental for show concerts
Specification:
1. p3 led display module
2. High and adjustable LED brightness
3. Environmental-friendly and energy-saving.
4. Convenient and easy maintenance
5. Good heat dissipation capability because of the unique design of vent fan.
| item | PH3 |
| Color | Full-color |
| Use environment | Indoor |
| Pixel pitch | 3mm |
| Module size | 192*96mm |
| Physical density | 111111 dots/㎡ |
| Pixel configuration | 1R1G1B |
| LED chip | SMD2121 |
| Module resolution | 64*32 |
| Module power | 15w |
| Recommended viewing distance | 3-20m |
| Best viewing angle | H: 120°; V:120° |
| Maximum power consumption | 800w |
| Cabinet size | W576m×H576mm |
| Standard cabinet resolution | 192*192 |
| Driving method | 1/16 Scan, Constant Current |
| Video frame rate | ≥60 Hz |
| Rate refresh | ≥1200Hz |
| White balance brightness | ≥1400cd |
| Operating temperature/Humidity | '-30℃~+45℃ |
| Ingress protection | IP43 |
| Input voltage | 110-220V AC±10% |
| Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
| Control system | PCTV+DVI video card+control card+fiber |
| MBTF | >5000 hours |
| Life Time | >100,000 Hours |
| The rate | <0.0001 |

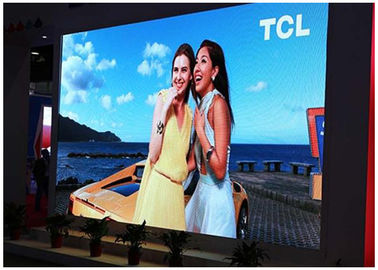

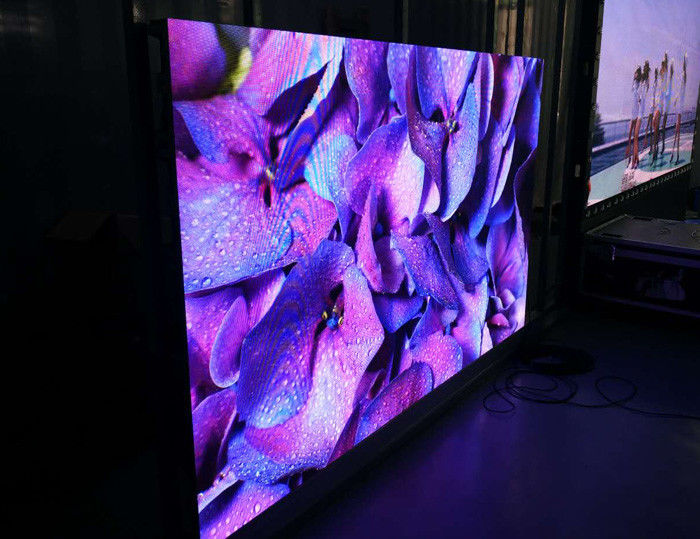

Module and Display Photos:
Company & Production Line:
After-sale service
We promise we provide 2 years warranty for free maintain for our products and full life tracking service.
1. During the warranty period, we will repair the equipment free of charge unconditionally if the problem is caused by product quality or production and installation problem.
2. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid.
