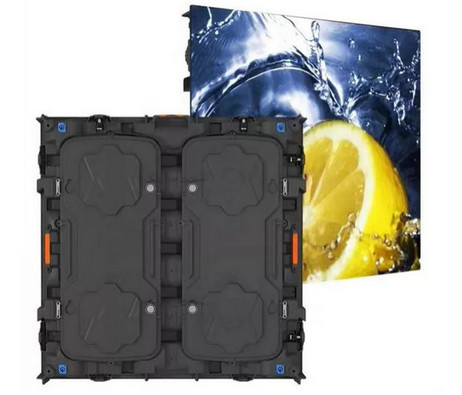

P4.8 Outdoor LED Video Wall 110V - 220V AC 800W SMD 2727 LED Stage Screen

P4.8 Outdoor LED Video Wall 110V - 220V AC 800W SMD 2727 LED Stage Screen

P4.8 Outdoor LED Video Wall 110V - 220V AC 800W SMD 2727 LED Stage Screen
P4.8 Outdoor LED Video Wall 110V - 220V AC 800W SMD 2727 LED Stage Screen
P4.8 Outdoor LED Video Wall 110V - 220V AC 800W SMD 2727 LED Stage Screen
Product Details:
Place of Origin: China
Brand Name: KAILITE
Certification: CE/UL/RoHS/ISO9001/FCC
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden Case Packing ; Flight Case Packing for Rental cabinet
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, D/A, D/P,
Supply Ability: 8000 Square Meters Per Month
Contact Now
Detailed Product Description
Module Size: 256mm*128mm Module Resolution: 64*32
Color: Full Color Led Lamp: Smd1921
Brightness: >6500cd/square Meters Refresh Rate: ≥1200Hz
High Light:

P4.8 Outdoor LED Video Wall

,

SMD Outdoor LED Video Wall

,

SMD 2727 LED Stage Screen



SMD HD P4.8 outdoor rental led display/outdoor led screen for stage/ led video wall for rental



Description of Rental LED Screen

outdoor led digital billboards pixel include 4mm, 5mm, 6.67mm, 8mm, 10mm, 16mm, within these pixels, 4mm, 5mm, 6.67mm are the most hot-selling and highest cost-effective series. You can use it on car for advertising or fixed in some place as billboard or on building.



Specifications:

led module parameter
Technical parameters UNIT parameters Values
Pixel pitch mm 4
module size mm 256*128mm
Physical density dots/㎡ 62500
Pixel configuration RGB 1,1,1
Driving method   Constant current 1/8scan
Led lamp Smd 1921
module resolution dots 64*32
Module weight Kg 0.32
Ingress protection   IP65
Module consumption W 25
led display parameter
Viewing angle Deg. H120 V120
Viewing distance m 4-40
Maximum power W/㎡ 800w
Frame Frequency Hz ≥60
Refresh frequency Hz ≥1200
Equilibrium brightness cd/㎡ ≥1500
Working environment temperature 0C -30~60
Display working voltage VAC 220V±15%/110V±15%
Gray scale/color   ≥16.7M color
Input signal   RF S-Video RGB etc
Control system   Nova/Linsn control system
Mean free error time hours >5000
life time hours >100,000
Lamp failure frequency   <0.0001


Features:

  • Good heat dissipation with fans and using meanwell power supply, long lifespan.
  • You can adjust the resolution by change modules directly, this can save your cost and labor.
  • 250x250mm module, compatible with various pitches such as PH2.6/PH2.9/PH3.9, high selectivity
  • High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble
  • Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
  • Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh ≥ 3840HZ, complete guarantee 16bit gray scale, Real color reproduction, high quality display
  • The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.


After-sell Service:
2 yaers quality guarantee period for all parts
Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours

we will reponse you in 24 houres if you have any question about the led screen,

maintenance guidance and problem solution supplied in 48 hours.

Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again

Free technical training for how to use and handle the software.

Customer satisfaction tracking report.



Application Of Outdoor Rental LED Display



  • Business organizations

Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.

  • Financial organizations

Bank, insurance companies, post offices, hospital, schools

  • Public place

Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room

  • Entertainments

Movie theaters, clubs, stages




FAQ:

1. Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10

2. Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance

3. What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on

4. What's your delivery time?
Wthin 7-21 days after we receiving deposit

5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
