| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | RoHS CE FCC CCC ISO9001 UL |
| Model Number: | P6.67 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case/flight case |
| Delivery Time: | 22-24 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 8000 square meters per month |
| Name: | Stadium LED Display | Pixel Pitch: | 6.67mm |
|---|---|---|---|
| Cabinet Size: | 960*960mm | Cabinet Resolution: | 144×144 |
| Physical Density: | 22477 Dots/㎡ | Application: | Sport Events |
| Ingress Protection: | IP65 | Color: | 1R1G1B |
| Power Supply: | G-energy/YouYi/Meanwell,meanwell | Warranty: | 2 Years |
| High Light: | P10 RGB LED Screen,P6.67 RGB LED Screen,P6.67 RGB Stadium LED Display |
||
P6.67 P8 P10 RGB LED Screen Stadium High Brightness Scrolling Word
Excellent Quality High Brightness Scrolling Word P6.67 P8 P10 Stadium LED Display
Quick details of P6.67 Stadium LED Screen
1. Module size: 320*160mm
2. Screen dimension: Customized Size
3. Brightness: ≥5500nits
4. Refresh rate: 1920-3840Hz
5. Life span: 100000 hours
Product details
| Item | KP6.67 | KP8 | KP10 |
| Pixel pitch | 6.67mm | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 48×24 | 40×20 | 32×16 |
| Physical density | 22477 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD3535 | SMD3535 | SMD3535 |
| Cabinet size | 960×960mm | 960×960mm | 960×960mm |
| Cabinet resolution | 144×144 | 120×120 | 96×96 |
| Maintenance way | Rear | Rear | Rear |
| Best viewing distance | ≥6.6m | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/6 Scan | 1/5 Scan | 1/2 Scan, |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥5500nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Advantages of Stadium LED screen
1. IP65 grade, protect the screen from dust and moisture.
2. High Brightness (over 5500nits) allow the screen picture to be clear under the sun light.
3. Use Nationstar lamp and strict quality control test.
4. Our most competitive factory price, with guaranteed quality.
5. Worry-free Service (Save your time and easy of your mind) take good care of your order with all our heart. Quick response with solutions for any your questions.
6. Our company focus on LED screen production for 14 years, we have professional engineers and sales team.

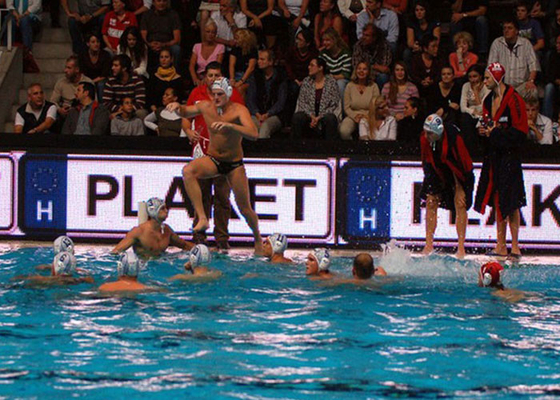

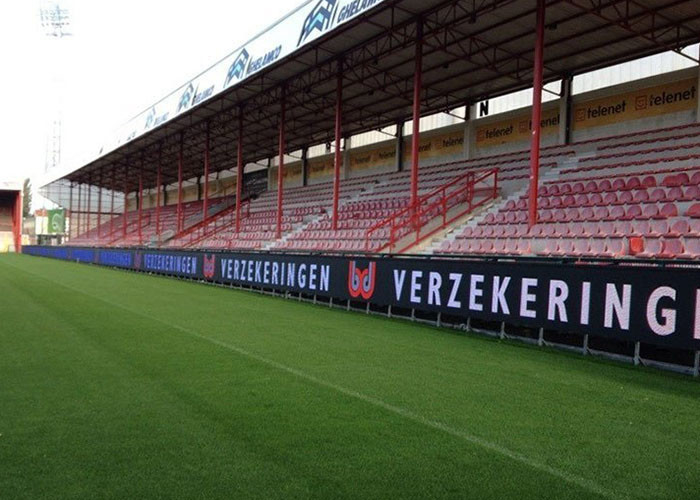

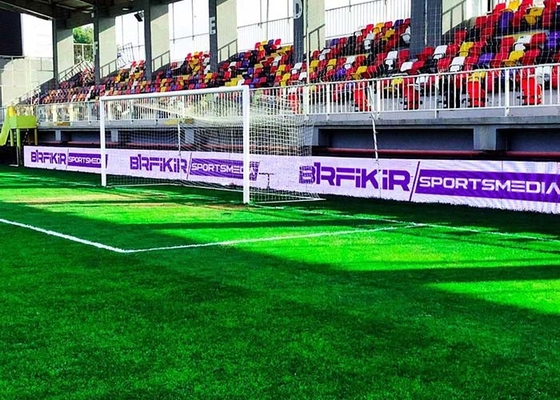

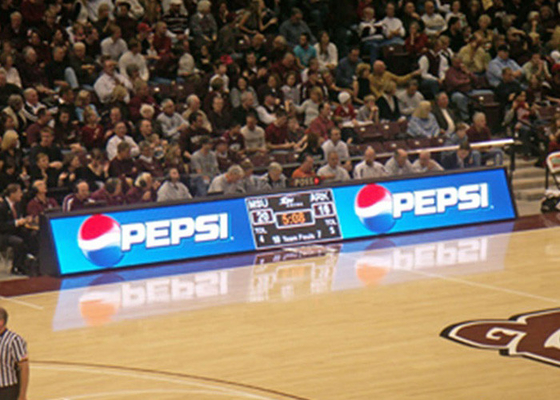

Applications: adapt to outdoor enviroments, wide viewing angle suit for large quantity of passages, so used in all kinds of sports stadium.
Cabinet detailed pictures:
After-sell Service:
1) 2 years quality guarantee period for all parts.
2) providing free frame structure drawing, such as power and data cables wiring diagram.
3) Free remote control debuggine serice if you need.
4) Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again.
5) Free technical training for how to use and handle the software.
FAQ:
Q. How long time is needed to produce?
A. Depend on the quantity of your order, we have the maximum productive forces of 8000 square meters per one month.
Q. How long does shipping take?
A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support?
A. We usually do EXW,FOB, CIF, DDU, DDP terms.
Q. Can your factory accept OEM or ODM?
A. Yes,We can accept OEM and ODM,.and can print logo.
Q. Do I need to buy other equipment to install LED screen?
A. You just need to prepare structure and installation tools.
