| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | CE UL FCC CCC RoHS ISO9001 |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case/Flight case/Carton |
| Delivery Time: | about 22-24 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 8000 square meters per month |
| Product Name: | P2.5 Soft LED Screen | Pixel Pitch: | 2.5mm |
|---|---|---|---|
| Screen Dimension: | Customized Size | Application: | Advertising Show Party Poster |
| Brightness: | ≥800nits | Refresh Rate: | 1920-3840Hz |
| Power Supply: | G-energy/YouYi/Meanwell | Life Span: | 100000 Hours |
| High Light: | SMD2020 RGB LED Screen,3840Hz RGB LED Screen,SMD2020 High Definition LED Screen |
||
SMD2020 P2.5 P3 Soft RGB LED Screen High Definition Easy Assemble
Customized Shape&Size P2.5 P3 Soft LED Screen High Definition Easy Assemble
Quick details of P2.5 Soft LED Screen
1. Module size: 320*160mm
2. Module resolution: 128*64
3. Physical density: 160000 dots/㎡
4. Grey level: 12-16bit
5. Color: full color
Product Parameters:
| Item | KP2.5 | KP3 | KP4 | KP5 |
| Pixel pitch | 2.5mm | 3mm | 4mm | 5mm |
| Module size | 320*160mm | 240*120mm | 320*160mm | 320*160mm |
| Module size | 128*64 | 80*40 | 80*40 | 64*32 |
| Physical density | 160000 dots/㎡ | 111111 dots/㎡ | 62500 dots/㎡ | 40000 dots/㎡ |
| LED type | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Module power | 18w | 18w | 18w | 18w |
| Best viewing distance | ≥2.5m | ≥3m | ≥4m | ≥5m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/32 Scan | 1/20 Scan | 1/20 Scan | 1/16 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 | IP43 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Advantages:
1. Shape and size can be customized, have various options to apply to different situations.
2. Small pixel pitch, high definition, high grey level(12-16bit).
3. Fast locks with magnets, easy to assemble.
4. Use Nationstar lamp and strict quality control test.
5. Our company focus on LED screen production for 14 years, we have professional engineers and technicians to solve problems.

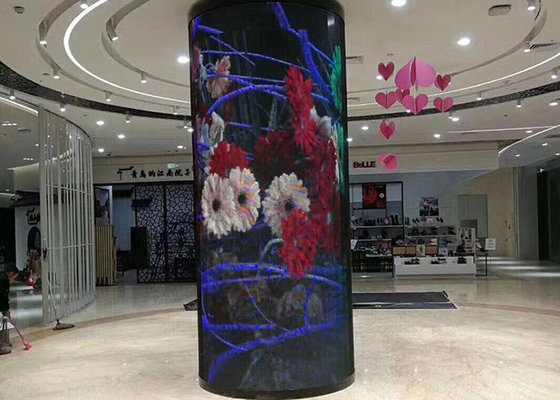

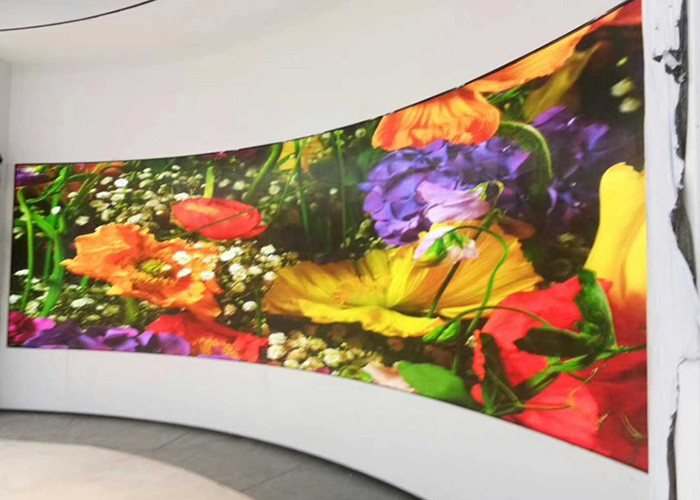

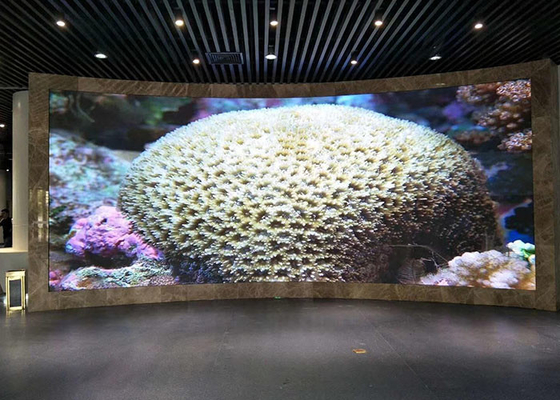

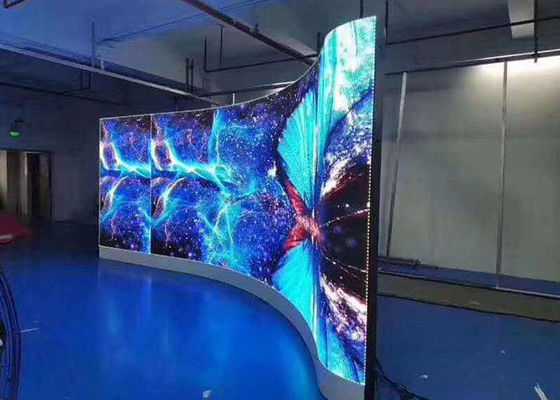

Applications of Soft LED Screen
With the characteristics of high definition and customized shape&size, soft LED screen are wide used in public places or company&organization. such as parks,subway, stations, exhibition halls, museums, stadiums. Most used for commercial ads, introductions, background, related information exhibition etc. sometimes are used for stage effects coordinated with stage lights.
After-sell Service:
1. 2 years quality guarantee period for all parts.
2. Failure maintenance of LED panels.
3. Free professional technical training.
4. we will reponse you anytime in 24 hours if there is any question about the led screen.
5. Warranty service.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. What is your terms of payment?
Most time T/T 40% as deposit, and 60% before delivery.
3. What's the package ?
Wooden case are recommanded for this soft LED Screen. there are other options such as flight case or carton according to your situation.
4. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
5.What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
