High Brightness 800nits Curved RGB LED Screen For Shopping Mall

High Brightness 800nits Curved RGB LED Screen For Shopping Mall

High Brightness 800nits Curved RGB LED Screen For Shopping Mall
High Brightness 800nits Curved RGB LED Screen For Shopping Mall
High Brightness 800nits Curved RGB LED Screen For Shopping Mall
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P3
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: Hottest P3 Curved LED Display Pixel Pitch: 3mm
Module Size: 240*120mm Module Resolution: 80*40
Cabinet Size: Customized Size Brightness: ≥800nits
Color: 1R1G1B Refresh Rate: 1920-3840Hz
High Light:

800nits RGB LED Screen

,

1R1G1B RGB LED Screen

,

800nits Curved LED Display

High Brightness 800nits Curved RGB LED Screen For Shopping Mall



Hottest Easy Assemble RGB P2.5 P3 P4 P5 Curved LED Display for Shopping Mall



Quick Details of P3 Curved LED Display



1. LED type: SMD2020



2. Screen dimension: Customized



3. Video frame rate: ≥60 Hz



4. Ingress protection: IP43



5. Input voltage: 110-220±10%





Product Parameters(P2.5 P3 P4 P5)



Item P2.5 P3 P4 P5
Pixel pitch 2.5mm 3mm 4mm 5mm
Module size 320*160mm 240*120mm 320*160mm 320*160mm
Module size 128*64 80*40 80*40 64*32
Physical density 160000 dots/㎡ 111111 dots/㎡ 62500 dots/㎡ 40000 dots/㎡
LED type SMD2020 SMD2020 SMD2020 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥2.5m ≥3m ≥4m ≥5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/32 Scan 1/20 Scan 1/20 Scan 1/16 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002





Why choose our products:



1. Shape & size could be customized, adapt to various application scenarios and designs.



2. Small pixel pitch, no full-screen display of patchwork fine point.



3. Low power consumption.



4. Low defective rate.



5. Our company focus on LED screen production for 14 years, we have professional engineers and sales team.





Applications of Curved LED Display



· Business organizations

Supermarket, large-scale shopping malls, star -rated hotel, travel agencies



· Financial organizations

Bank, insurance companies, post offices, hospital, schools



· Public place

Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room



· Entertainments

Movie theaters, clubs, stages

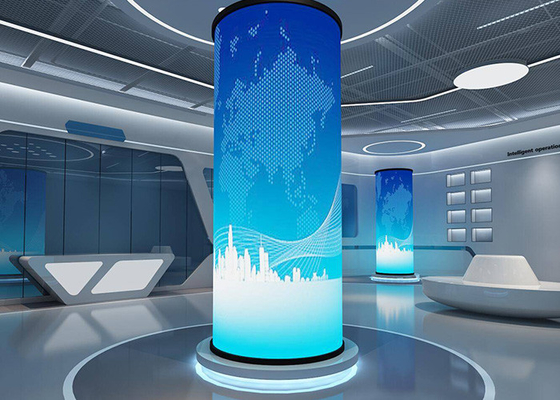

High Brightness 800nits Curved RGB LED Screen For Shopping Mall 0

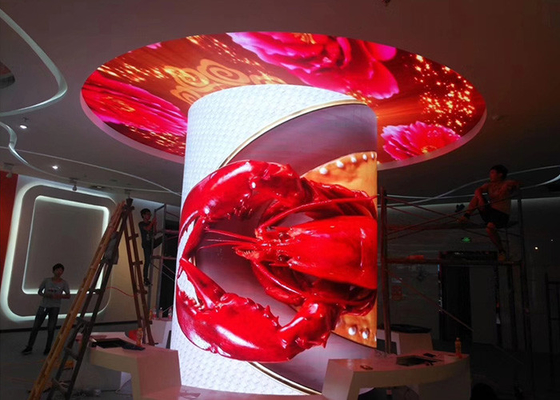

High Brightness 800nits Curved RGB LED Screen For Shopping Mall 1

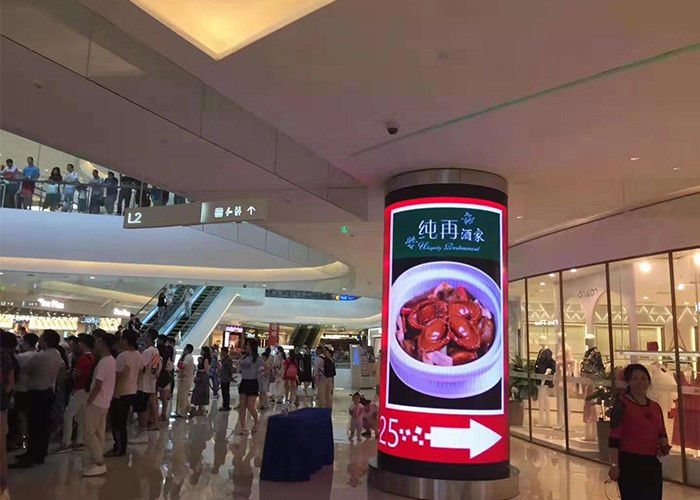

High Brightness 800nits Curved RGB LED Screen For Shopping Mall 2





After-sell Service:



1. On-line service.


2. Failure maintenance of LED panels.


3. Free professional technical training.


4. Warranty service.


5. Engineering technical service.





FAQ:



1. Is the product customizable?

Customized design is available,OEM & ODM are welcomed.



2. What is the delivery time?

About 22-24 days.



3. Are you a manufacturer or trading company?

We are a professional manufacturer which has specialized in led display industry for 14 years.



4. How does your factory do regarding quality control?

We have QC tests at all production processes, and test all parts and the whole screen before delivery.



5. What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.
