Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design

Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design

Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design
Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design
Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE UL FCC CCC RoHS ISO9001
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case/Carton
Delivery Time: about 22-24 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P2.5 Flexible LED Display Pixel Pitch: 2.5mm
Physical Density: 160000 Dots/㎡ Brightness: ≥800nits
Application: Advertising Background Show Information Board Input Voltage: AC 110-220v±10%
Power Supply: G-energy/YouYi/Meanwell/Rong Electric Defective Rate: <0.0002
High Light:

Bendable Design Flexible LED Displays

,

RGB Color Bendable Led Screen

,

Small Pitch Bendable LED Display

Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design



Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design



Quick details of P2.5 Flexible LED Display



1. Lamp type: SMD2020



2. Best viewing distance: ≥2.5m



3. Video frame rate: ≥60 Hz



4. Grey level: 12-16bit



5. Ingress protection: IP43





Product Parameters:



Item KP2.5 KP3 KP4 KP5
Pixel pitch 2.5mm 3mm 4mm 5mm
Module size 320*160mm 240*120mm 320*160mm 320*160mm
Module size 128*64 80*40 80*40 64*32
Physical density 160000 dots/㎡ 111111 dots/㎡ 62500 dots/㎡ 40000 dots/㎡
LED type SMD2020 SMD2020 SMD2020 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥2.5m ≥3m ≥4m ≥5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/32 Scan 1/20 Scan 1/20 Scan 1/16 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002

Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design 0



Advantages:



1. Shape and size can be customized, have various options to apply to different situations.



2. Small pixel pitch, high definition, high grey level(12-16bit).



3. Attach to the structure with magnets, easy and convenient to replace the module from front.



4. Use brand lamp, reliable for many years.



5. Our company focus on LED screen production for 14 years, we have professional engineers and technicians to solve problems.

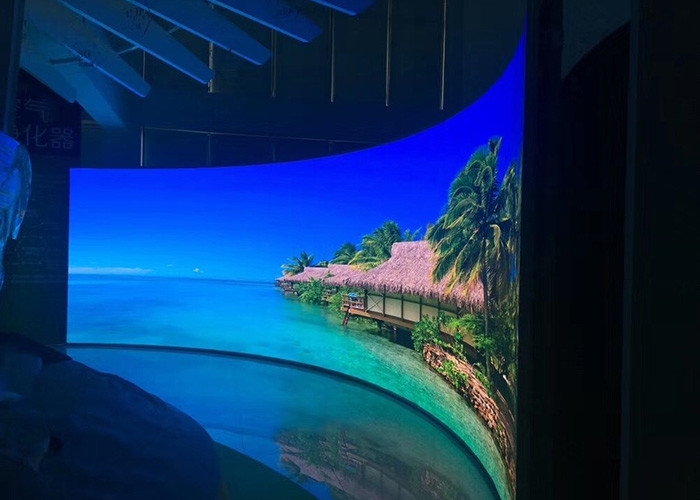

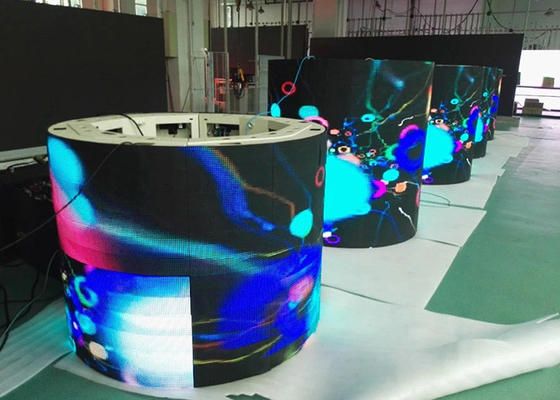

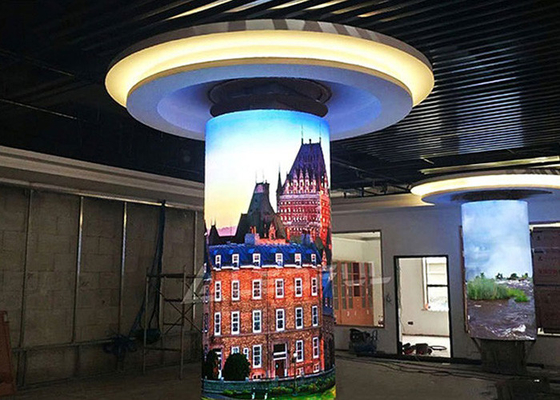

Applications of Soft LED Screen





Flexible LED Display has much differences from traditional straight screen, the module is bendable and can attach to various shape iron structures, so can be used at angled corner and for many types design. Widely used in public places such as exhibition, museum, shopping mall, control room, subway ,stations.





Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design 1

Small Pitch P2.5 P3 Flexible LED Displays RGB Color Bendable Design 2





After-sell Service:



1. 2 years quality guarantee period for all parts.



2. Failure maintenance of LED panels.



3. On-line service.



4. We will reponse you anytime in 24 hours if there is any question about the led screen.



5. Free technical training for how to use and handle the software.





FAQ:



1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.



2. What is your terms of payment?
Most time T/T 40% as deposit, and 60% before delivery.



3. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.





4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.





5.What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
