Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color

Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color

Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color
Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color
Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE UL FCC CCC RoHS ISO9001
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case/Carton
Delivery Time: about 22-24 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P2.5 LED Screen Flexible Module Size: 320*160mm
Pixel Pitch: 2.5mm Physical Density: 160000 Dots/㎡
Input Voltage: AC 110-220v±10% Power Supply: G-energy/YouYi/Meanwell/Rong Electric
Driving Method: 1/32 Scan, Constant Current Refresh Rate: 1920-3840Hz
High Light:

Small Pitch Stage LED Screen

,

Flexible Stage LED Screen

,

Flexible Small Pitch LED Screen

Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color



Quick details of P2.5 LED Screen Flexible



1. Lamp type: SMD2020



2. Life Time: >100,000 Hours



3. Best viewing distance: ≥2.5m



4. Grey level: 12-16bit



5. Module power consumption: 18w



Product Parameters(P2.5 P3 P4 P5):



Item P2.5 P3 P4 P5
Pixel pitch 2.5mm 3mm 4mm 5mm
Module size 320*160mm 240*120mm 320*160mm 320*160mm
Module size 128*64 80*40 80*40 64*32
Physical density 160000 dots/㎡ 111111 dots/㎡ 62500 dots/㎡ 40000 dots/㎡
LED type SMD2020 SMD2020 SMD2020 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥2.5m ≥3m ≥4m ≥5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/32 Scan 1/20 Scan 1/20 Scan 1/16 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002

Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color 0



Advantages:



1. The whole could make various shape according to request, like column, ribbon.



2. Full color, high grey level(12-16bit), looks vivid.



3. Wide viewing angle(H: 160°; V:160°), friendly to audiences.



4. Attach to the structure with magnets, easy and convenient to replace the module from front.



5. Our company cooperate with brand provider for many years, use good and reliable material.

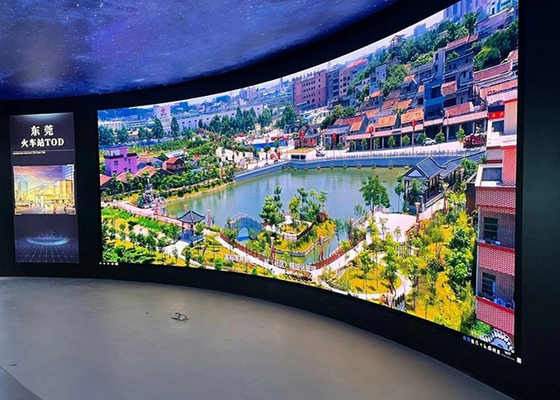

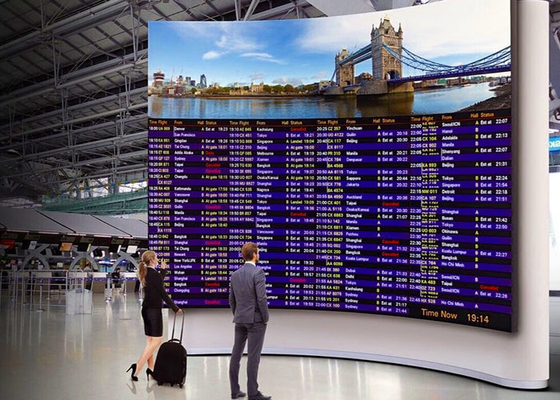

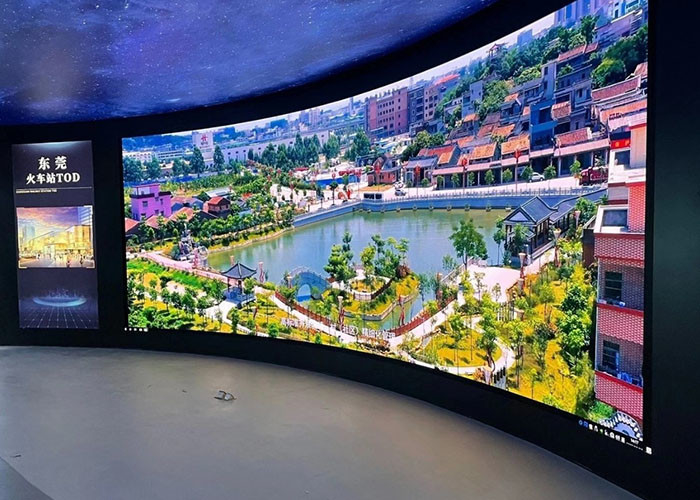

Applications of Soft LED Screen



Flexible LED Display has much differences from traditional straight screen, the module is bendable and can attach to various shape iron structures, so can be used at angled corner and for many types design. Widely used in public places such as exhibition, museum, shopping mall, control room, subway ,stations.



Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color 1

Small Pitch P2.5 Stage LED Screen Flexible 12-16bit Grey Level Rich Color 2





After-sell Service:



1. 2 years quality guarantee period for all parts.



2. Failure maintenance of LED panels.



3. Providing free frame structure drawing, as well as power and data cables wiring diagram. easy to set up the led screen.





4. Free remote control debuggine serice if necessary.



5. Free professional technical training.





FAQ:



1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.



2. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.



3. What's your package and shipping way?
Goods are packed with flight case; delivered by air shipping or sea shipping.



4. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.



5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
