| Place of Origin: | Shenzhen China |
| Brand Name: | KAILITE |
| Certification: | CE RoHS ISO9001 UL FCC CCC |
| Model Number: | P2 P2.5 P3.07 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case/Flight case |
| Delivery Time: | About 22-24 days |
| Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
| Supply Ability: | 8000 square meters per month |
| Product Name: | Exclusive Indoor HD LED Display | Cabinet Size: | 640*480mm |
|---|---|---|---|
| Maintenance Way: | Front | Life Span: | >100,000 Hours |
| Module Connection: | Pin Connection(Hard Connection) | Ingress Protection: | IP43 |
| High Light: | 640*480mm Indoor HD LED Display,IP43 Indoor HD LED Display |
||
Exclusive Indoor HD LED Display Self Design Connection Optimization
Description of Exclusive Indoor HD LED Display
Indoor LED Video Wall Panel pixel include 1.25mm, 1.53mm,1.66mm, 1.86mm, 2mm, 2.5mm, 3.07mm, within these pixels, 2.5mm, 2mm, are the most hot-selling and highest cost-effective series. You can use it in office for conference display or fixed in shopping mall for advertising.
Product Specification:
| Item | P2 | P2.5 | P3.07 |
| Pixel pitch | 2mm | 2.5mm | 3.076mm |

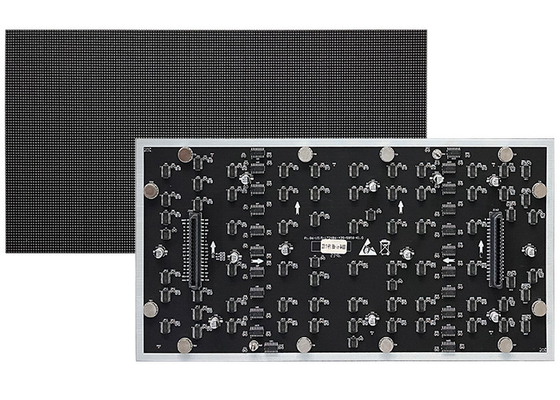

| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 160×80 | 128×64 | 104×52 |
| Physical density | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ |
| LED type | SMD1515 | SMD2020 | SMD2020 |

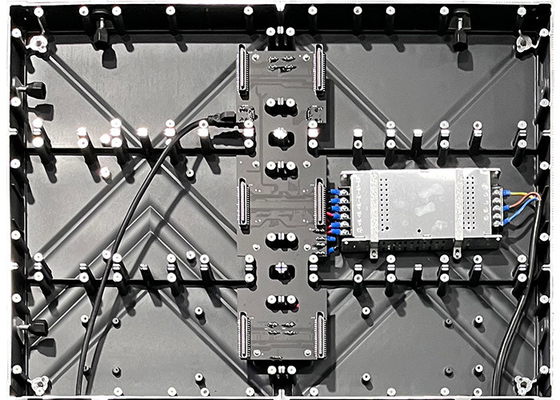

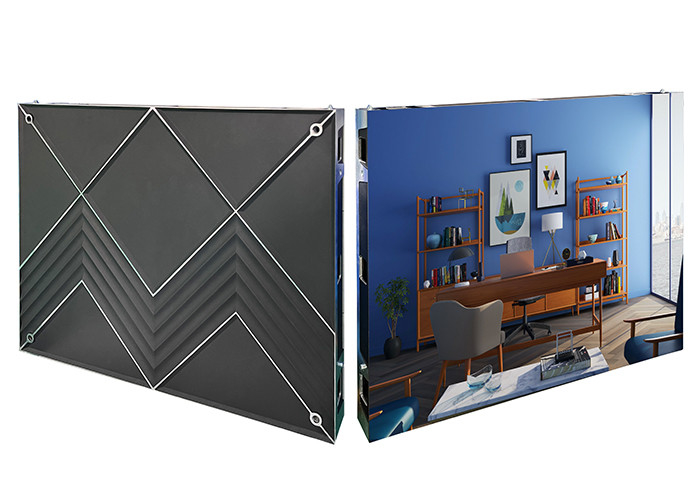

| Cabinet size | 640*480*49mm | 640*480*49mm | 640*480*49mm |
| Cabinet resolution | 320*240 | 256*192 | 208*156 |
| Maintenance way | Front | Front | Front |
| Best viewing distance | ≥2m | ≥2.5m | ≥3m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/40 Scan | 1/32 Scan | 1/26 Scan, |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥800nits | ≥800nits | ≥800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of products:
1. Simplified design, Improve circuit security, simplify installation.
2. High contrast and high resolution, display the content clearly.
3. Seamless Splicing, the picture is coherent.
4. Front maintenance design, easy to replace modules or repair receive card and power supply.
5. Worry-free Service (Save your time and easy of your mind) from experienced engineers and sales team.
Shipping and Package
The main shipping way is by sea and air, conbined with road transport. we have different choices for package, including Wooden case (most time for fixed series), flight case and cartoon.
After-sell service:
1. Providing controller and software manual, to help customer handle the functions quickly.
3. Failure maintenance of LED panels.
4. 24-hour hotline service, including counseling and technical guidance.
5. Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again.
FAQ:
1. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can print logo, put logo on/in the products.
4. Could i have a sample before place mass order?
Yes sure, sample is available for your test.
5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
