Home Theatre ALuminum Light Weight LED Screen Seamless Easy Installation
Description of Home Theatre LED Screen
Indoor LED Video Wall Panel pixel include 1.25mm, 1.53mm,1.66mm, 1.86mm, 2mm, 2.5mm, 3.07mm, within these pixels, 2.5mm, 2mm, are the most hot-selling and highest cost-effective series. You can use it in office for conference display or fixed in shopping mall for advertising.
Product Specification:
| Item |
P2 |
P2.5 |
P3.07 |
| Pixel pitch |
2mm |
2.5mm |
3.076mm |
| Module size |
320*160mm |
320*160mm |
320*160mm |
| Module resolution |
160×80 |
128×64 |
104×52 |
| Physical density |
250000 dots/㎡ |
160000 dots/㎡ |
105688 dots/㎡ |
| LED type |
SMD1515 |
SMD2020 |
SMD2020 |

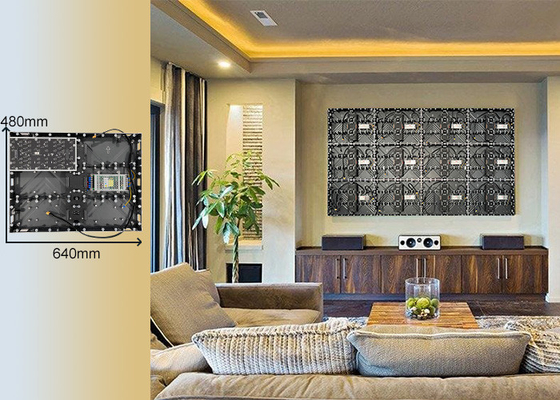

| Cabinet size |
640*480*49mm |
640*480*49mm |
640*480*49mm |
| Cabinet resolution |
320*240 |
256*192 |
208*156 |
| Maintenance way |
Front |
Front |
Front |
| Best viewing distance |
≥2m |
≥2.5m |
≥3m |
| Best viewing angle |
H: 160°; V:160° |
H: 160°; V:160° |
H: 160°; V:160° |
| Driving method (Constant Current) |
1/40 Scan |
1/32 Scan |
1/26 Scan, |
| Video frame rate |
≥60 Hz |
≥60 Hz |
≥60 Hz |
| Refresh rate |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
| Brightness |
≥800nits |
≥800nits |
≥800nits |
| Grey Level |
12-16bit |
12-16bit |
12-16bit |
| Ingress protection |
IP43 |
IP43 |
IP43 |
| Life Time |
>100,000 Hours |
>100,000 Hours |
>100,000 Hours |
| The rate |
<0.0002 |
<0.0002 |
<0.0002 |
Features of products:
1. Simplified design, Improve circuit security, simplify installation.
2. GOB panel available, the surface is scratch-resistant and corrosion-resistant, not easy to damage
3. The display is high-definition and vivid, the grey level is 12-16bits.

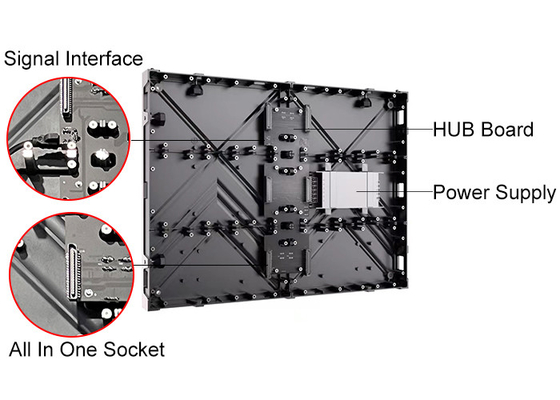

4. Front maintenance design, easy to replace modules or repair receive card and power supply.
5. Seamless Splicing, the picture is coherent.
Shipping and Package
The main shipping way is by sea and air, conbined with road transport. we have different choices for package, including Wooden case (most time for fixed series), flight case and cartoon.
After-sell service:
1. Providing controller and software manual, to help customer handle the functions quickly.
2. Failure maintenance of LED panels.
3. When the screen is damaged, provide guidance on replacing the module or other components.
4. 24-hour hotline service, including counseling and technical guidance.
5. Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again.
FAQ:
1. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
2. What is LED screen common size?
16:9 and 4:3 aspect ratio is popular.
3. What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.
4. How long can you ship if we place order?
Usually our production time is about 20-25 days, and shipping time about 10-50 days, depends on the destination country.
5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
