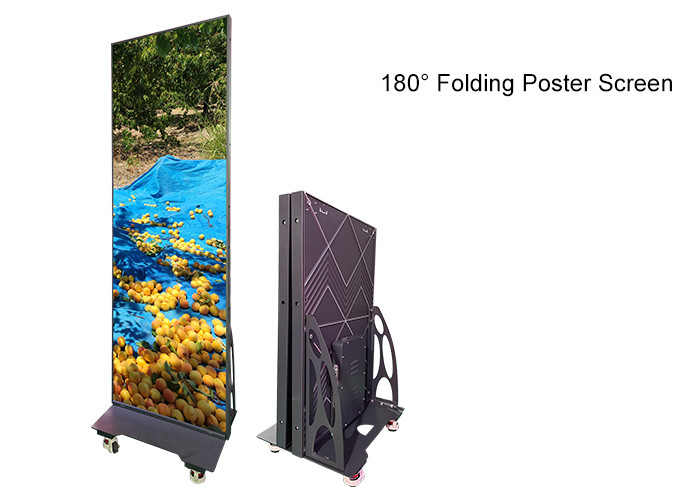

Lightweight Foldable Advertising Poster Screen Quick Installation
Quick details of Folable Poster Screen
1, Brightness: 600-800nits
2, Avaliable pixel pitch: 1.86mm 2mm 2.5mm
3, Panel: SMD/GOB
4, Module size: 320*160mm
5, Frame material: Iron base and aluminum cabinet
Specification of products(P1.86 P2 P2.5)
| Item |
P1.86 |
P2 |
P2.5 |
| Pixel pitch |
1.86mm |
2mm |
2.5mm |
| Module size |
320*160mm |
320*160mm |
320*160mm |
| Module resolution |
172×86 |
160×80 |
128×64 |
| Physical density |
289050 dots/㎡ |
250000 dots/㎡ |
160000 dots/㎡ |
| LED type |
SMD1515 |
SMD1515 |
SMD2020 |
| Cabinet size |

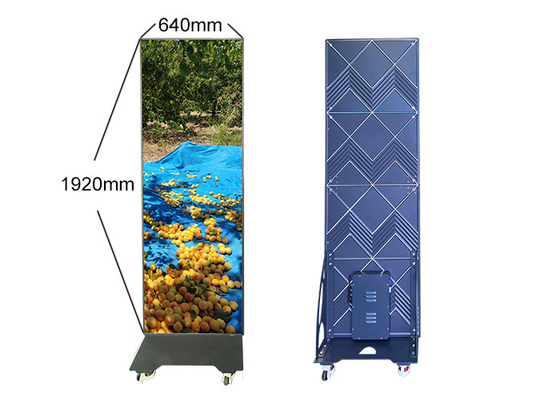

640*1920*30mm |
640*1920*30mm |
640*1920*30mm |
| Maintenance way |
Front |
Front |
Front |
| Best viewing distance |
≥1.8m |
≥2m |
≥2.5m |
| Best viewing angle |
H: 140°; V:140° |
H: 140°; V:140° |
H: 140°; V:140° |
| Driving method (Constant Current) |
1/43 Scan |
1/40 Scan |
1/32 Scan |
| Video frame rate |
≥60 Hz |
≥60 Hz |
≥60 Hz |
| Refresh rate |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
| Brightness |
≥800nits |
≥800nits |
≥800nits |
| Grey Level |
12-16bit |
12-16bit |
12-16bit |
| Ingress protection |
IP40 |
IP40 |
IP40 |
| Life Time |
>100,000 Hours |
>100,000 Hours |
>100,000 Hours |
| The rate |
<0.0002 |
<0.0002 |
<0.0002 |
Features of Folable Poster Screen
1. Light weight, takes up less space when folded
2. Simple control, content can be switched through mobile phone
3. Quick to move and quick to install, suitable for short-term events
4. Metal bracket, not easy to deform
5. Magnetic module, easy to maintain
Applications of Poster LED Screen
1. Commercial places: shopping malls, shops
2. Transportation hubs: airports, train stations, subway stations
3. Cultural and entertainment places: theaters, cinemas, KTV
4. Financial institutions: banks, stock exchanges
5. Office places: office buildings, company offices
Cases
Advantages:
1. Wide range of uses.
2. Occupies less space, saves shipping costs.
3. Easy to maintain and simple after-sales service.
4. GOB panel is not easy to damage.
5. Batch production effectively reduces costs.
After-sell service:
1) Providing controller and software manual, to help customer master all kinds of functions.
2) Free technical training for how to use and handle the software.
3) Repair of damaged modules.
4) 2 years warranty.
FAQ:
1. What's your package and shipping way?

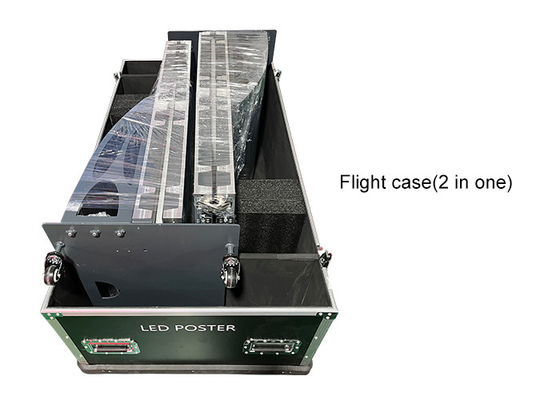

Goods are packed with flight case or wooden case; delivered by air or sea.
2. Are you a manufacturer or trading company?
We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 15 years.
3. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
4. What’s your control system?
Mostly use Novastar controller, but there are other alternative controller, depending on the customer.
5. What is the entire transaction process?
Pay the deposit first. After receiving the deposit, we will make the product. After paying the balance, we will send it to you through logistics.
