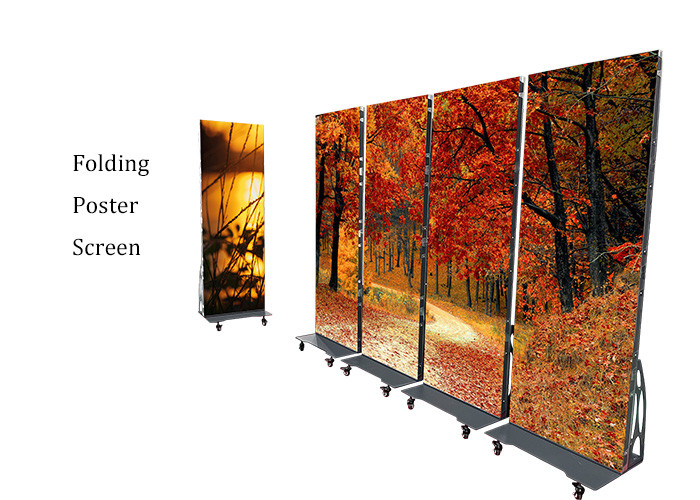

Folding Poster LED Display Background Movable Signage WIFI 4G Network
Quick details of Folding Poster LED Display
1, Module size: 320*160mm
2, Avaliable pixel pitch: 1.25-2.5mm
3, Panel Technology: SMD/GOB
4, LED Type: SMD1010/SMD1515/SMD2020
5, Module Connection: Hard connection(wireless)
Specification of products(P1.86 P2 P2.5)
| Item |
P1.25 |
P1.86 |
P2 |
P2.5 |
| Pixel pitch |
1.25mm |
1.86mm |
2mm |
2.5mm |
| Module size |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
| Module resolution |
256*128 |
172×86 |
160×80 |
128×64 |
| Physical density |
640000 dots/㎡ |
289050 dots/㎡ |
250000 dots/㎡ |
160000 dots/㎡ |
| LED type |
SMD1010 |
SMD1515 |
SMD1515 |
SMD2020 |
| Cabinet size |
640*1920*49mm |
640*1920*49mm |
640*1920*49mm |
640*1920*49mm |
| Maintenance way |
Front |
Front |
Front |
Front |
| Best viewing distance |
≥1.2m |
≥1.8m |
≥2m |
≥2.5m |
| Best viewing angle |
H: 140°; V:140° |
H: 140°; V:140° |
H: 140°; V:140° |
H: 140°; V:140° |
| Driving method (Constant Current) |
1/60 Scan |
1/43 Scan |
1/40 Scan |
1/32 Scan |
| Video frame rate |
≥60 Hz |
≥60 Hz |
≥60 Hz |
≥60 Hz |
| Refresh rate |
over 3840Hz |
over 3840Hz |
over 3840Hz |
over 3840Hz |
| Brightness |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
| Grey Level |
12-16bit |
12-16bit |
12-16bit |
12-16bit |
| Ingress protection |
IP40 |
IP40 |
IP40 |
IP40 |
| Life Time |
>100,000 Hours |
>100,000 Hours |
>100,000 Hours |
>100,000 Hours |
| The rate |
<0.0002 |
<0.0002 |
<0.0002 |
<0.0002 |

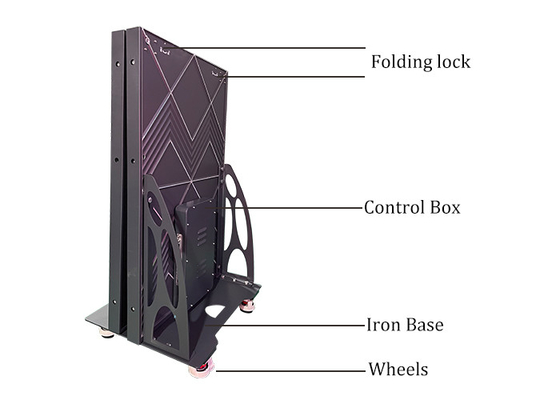

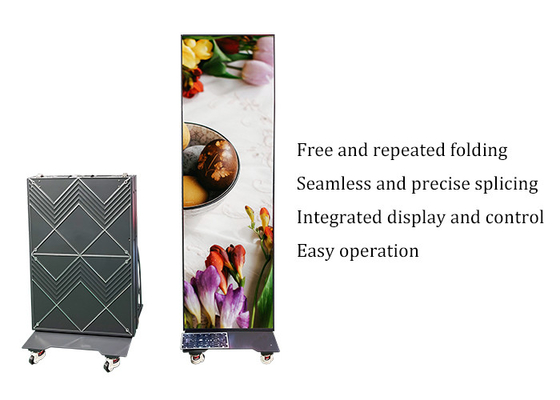

Features of Folding Poster LED Display
1. Quick to move and quick to install, suitable for short-term events
2. Aluminum Frame, light weight
3. Unique folding design

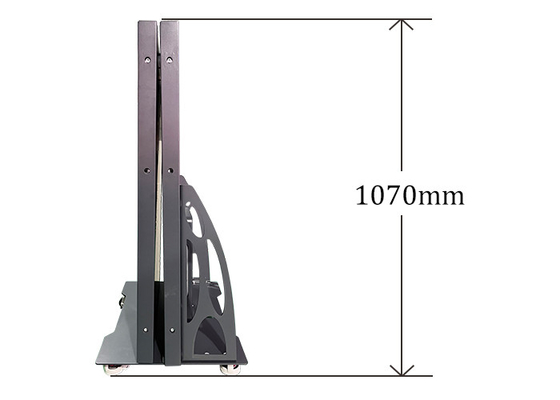

4. Main body 49mm thickness
5. Magnetic module, easy to maintain
Applications of Folding Poster LED Display
1. Commercial places: shopping malls, shops
2. Transportation hubs: airports, train stations, subway stations
3. Cultural and entertainment places: theaters, cinemas, KTV
4. Financial institutions: banks, stock exchanges
5. Office places: office buildings, company offices
Cases
Advantages:
1. Movable, easy to place.
2. Occupies less space, saves shipping costs.
3. Easy to maintain and simple after-sales service.
4. The control system is integrated for easy operation.
5. High-definition display.
After-sell service:
1) Providing controller and software manual, to help customer master all kinds of functions.
2) Free remote control debuggine service if you need.
3) Repair of damaged modules.
4) 2 years quality guarantee period for all parts.
FAQ:
1. Is the product customizable?
Yes, the standard product screen size is 640*1920mm, but we can change the design according to customer needs.
2. Are you a manufacturer or trading company?
We are 100% factory and can be visited on site.
3. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
4. What’s your control system?
Mostly use Novastar controller, but there are other alternative controller, depending on the customer.
5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
