Name: 4:3 Ratio HD LED Display Screen P2.5 P2 P3.07 Light Weight Aluminum Cabinet
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P2.5 P2 P3.07
Price: 1090.00 USD
Availability: InStock

Home Products HD Led Display

4:3 Ratio HD LED Display Screen P2.5 P2 P3.07 Light Weight Aluminum Cabinet

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	KAILITE
Certification:	CE RoHS ISO9001 UL FCC CCC
Model Number:	P2.5 P2 P3.07

Payment & Shipping Terms:

Minimum Order Quantity:	2 square meters
Price:	USD 680-1500 / Square Meter
Packaging Details:	Wooden case / Flight case with anti-shock foam
Delivery Time:	About 22-24 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	8000 square meters per Month

Contact Now

Detailed Product Description

Pixel Pitch:	P2.5 / P2 / P3.07	Aspect Ratio:	4:3 Ratio
Cabinet Material:	Light Weight Aluminum	Cabinet Size:	64048049mm
Cabinet Weight:	6.4kg	Maintenance Way:	Front
Refresh Rate:	Over 3840Hz	Brightness:	800nits
Ingress Protection:	IP43	Life Time:	100,000+ Hours
Highlight:	4:3 ratio HD LED display , light weight aluminum cabinet , P2.5 HD LED display screen

Product Overview

This 4:3 Ratio HD LED Display Screen is available in P2, P2.5, and P3.07 pixel pitch configurations, all built on a lightweight aluminum cabinet platform. It delivers high-definition, vivid imagery with seamless splicing, making it a reliable choice for professional video walls and control-room displays.

Key Design Highlights

4:3 Ratio Standard Cabinet Design

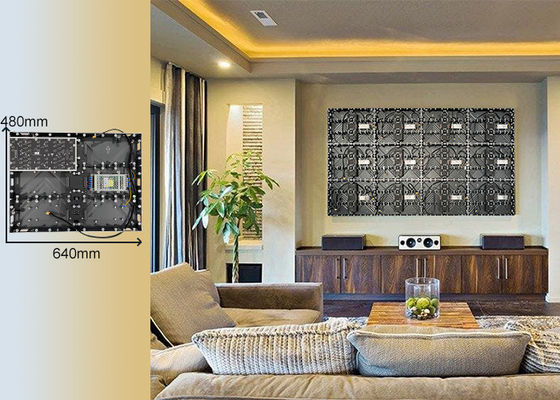

The screen adopts the industry-standard 4:3 aspect ratio cabinet (640*480mm), matching traditional projection and monitor sizes perfectly. This ratio makes it ideal for conference rooms, control centers, and home theatres where standard-format content is used, avoiding awkward scaling and image distortion.

Lightweight Aluminum Cabinet

Built with a lightweight aluminum cabinet weighing only 6.4kg per panel, the screen dramatically reduces structural load and shipping cost. The die-cast aluminum frame offers high strength, fast heat dissipation, and a slim 49mm profile, enabling quick wall-mount and rental installation.

Product Specifications

Item	P2	P2.5	P3.07
Pixel pitch	2mm	2.5mm	3.076mm
Module size	320*160mm	320*160mm	320*160mm
Module resolution	160*80	128*64	104*52
LED type	SMD1515	SMD2020	SMD2020
Cabinet size	64048049mm	64048049mm	64048049mm
Aspect ratio	4:3	4:3	4:3
Cabinet weight	6.4kg	6.4kg	6.4kg
Cabinet material	Lightweight aluminum	Lightweight aluminum	Lightweight aluminum
Maintenance way	Front	Front	Front
Best viewing distance	≥2m	≥2.5m	≥3m
Refresh rate	1920–3840Hz	1920–3840Hz	1920–3840Hz
Brightness	≥800nits	≥800nits	≥800nits
Ingress protection	IP43	IP43	IP43
Life time	>100,000 Hours	>100,000 Hours	>100,000 Hours

Product Features

1.4:3 ratio cabinet for standard-format video walls and control-room displays.
2.Lightweight aluminum cabinet, only 6.4kg, lowering structural and shipping costs.
3.High-definition and vivid image with 12–16bit grey level.

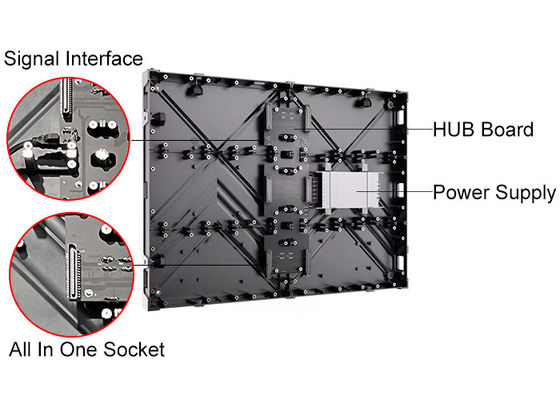

4.Front maintenance design for easy module, card, and power replacement.
5.Seamless splicing for a coherent, uninterrupted picture.

Shipping & Packaging

The main shipping methods are by sea and air, combined with road transport. Package options include wooden cases (for fixed series), flight cases, and cartons.
