Place of Origin: | China (Mainland) |
Brand Name: | KAILITE |
Certification: | CE, FCC, RoHS |
Model Number: | P5 |
Minimum Order Quantity: | 2 Square Meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case / Flight case |
Delivery Time: | 7-21 work days |
Payment Terms: | L/C, D/A, D/P, L/C |
Supply Ability: | 8000 Square meters / month |
Led Chip: | SMD2121 | Physical Density: | 40000dots/㎡ |
---|---|---|---|
Moduel Resolution: | 32.32 | Gray Scale/Color: | ≥16.7M Color |
Cabinet Resolution: | 160*160 | Maximum Power: | 700w |
Driving Method: | Constant Current1/16 Scan | Life Time: | >100,000hrs |
High Light: | led screen rental,led video panels,P5 Stage Rental Led Displays |
Full color P5 Stage Rental Led Display more than1400cd smd2121 For Indoor Usage
Quick Detail:
1. Pixel Pitch: 5mm
2. Module Pixel Quanity:160
3. Pixel Configuration: 1R1G1B
4. Cabinet Size:640mmx640mm
5. Module Quanity:4pcsx4pcs
Description:

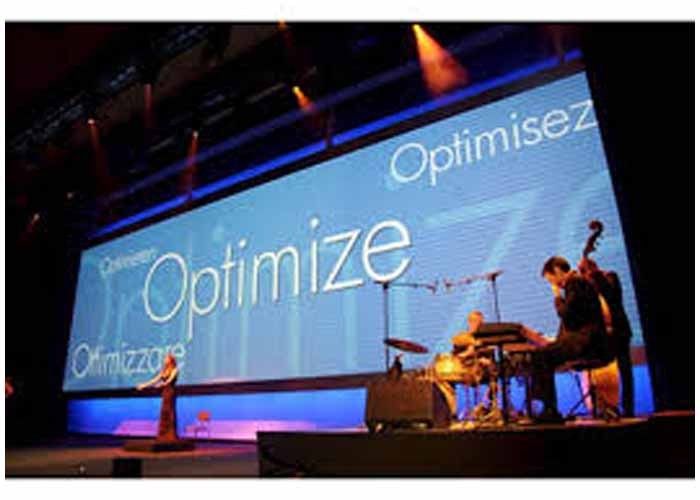

1. For the rental led display ususlly widely uded in stage preformance
2. Aluminum material, is the upgrade of general led display ,it can get better heat dissipation, and protect from oxidation, long-time using .
3. Install a multi-function card to adjust the brightness is according to the outside tempurature and brightness, what's more, the lower brightness gives people comfotable viewing, it can save ±13% power
P5 die-cast aluminum screen features
1. Light: box size 640* 640mm, weighs only 8.5kg, single person can lift with one hand, saving installation time;
2. Thin: box with die-cast aluminum molding, high strength, high toughness, high precision, easy deformation, its thickness is only 80mm;
3. Flat: surface flatness error 960Hz;
4. Low: excellent thermal design and thermal performance, without external fan, air conditioning, low noise; light weight housing, low cost of installation required; low power box, saving operating costs
Specifications
Item P5 | |||
Main parameters | Technical parameters | UNIT | parameters values |
Module Parameters |
Pixel pitch | MM | 5 |
Panel size | MM | L160*H160 | |
Physical density | /㎡ | 40000Dots | |
Pixel Configuration | R/G/B | 1,1,1 | |
Driving method | Constan current 1/16 scan | ||
LED Encapsulotion | SMD | 2121 | |
Display resulotion | Dots | 32*32 | |
Moduel Power | W | 20 | |
Display Parameters |
Viewing Angle | Deg | H120V120 |
Option Distance | M | 5-35 | |
Maximum Power | W | 800 | |
Cabinet Size | MM | L640*H640 | |
Frame Frequency | Hz | ≥60 | |
Refresh Frequency | Hz | ≥1200 | |
Equilibrium Brightness | CD | ≥1300 | |
Operation Temperatuer /Humidity |
℃ | -30~+45/ 10%~95% |
|
Input Voltage | VAC | 220V±10%/110V±10% | |
Ingress Protection | IP43 | ||
Gray Scale/Color | ≥16.7M color | ||
Brightness Contral | Manual/Automatic | ||
Input Signal | RF/S-Video/RFB/etc | ||
Contral Systerm | PCTV+DVI video card+control card+fiber |
||
MTBF | HOURS | >5000 | |
Life Time | HOURS | >100,000 | |
Lamp Failure Frequency | <0.0001 |
Abulumiu Die-casting Caninet rental led display
Packaging Cabinet
