High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727

High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727

  • High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727
  • High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727
  • High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727
High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727
Product Details:
Place of Origin: Shenzhen/Guangdong/China
Brand Name: Kailite
Certification: CE/UL/RoHS/ISO9001
Model Number: Outdoor P4.81 Fullcolor
Payment & Shipping Terms:
Minimum Order Quantity: 1SQM
Price: Negotiation
Packaging Details: wooden packing /Flightcase packing
Delivery Time: about 15days after receive the payment
Supply Ability: 1000SQM/Month
Contact Now
Detailed Product Description

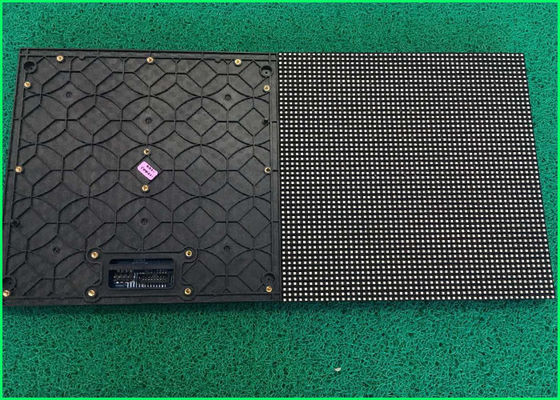

Module Size: 250*250mm Cabinet Size: 500*1000mm
Module Resolution: 52*52 Cabinet Resolution: 208*208
Pixel Density: 43264 Dots/m2 LED Encapsulation: SMD 2727
Driving Method: 1/13 Scan White Balance Brightness: ≥5500cd/m2
Highlight:

rgb led display

,

rgb led panel

Outdoor P4.81 with High brightness Die-Casting Magnesium Alloy material





P4.81 outdoor 500*100mm die cast aluminium led display screen
Item No. P4.81 die cast aluminium led display screen
Classification Full color
Pixel pitch 4.81 mm
Size of module (mm*mm) 250*250 mm
Pixel density 43264 dots/m2
Pixel composition 1RGB
LED encapsulation SMD 2727
Resolution of module 52*52
Best viewing distance 4~30m
Best viewing angle (Horizontal/Vertical) 160°/140°
Max power consumption 850W/m2
Driving method 1/13 Scan
Refresh rate ≥2400HZ
White balance brightness ≥5500cd/m2
Working voltage AC 220±10% or 110±10%
IC ICN2027/MBI5124+RT681
Cabinet material Die cast aluminium
Cabinet size 500*1000mm
Cabinet weight 15.7kg/cabinet
Non-Flatness <1mm
Contrast Ratio 4000:1
Blind Spot Rate <0.000001
Grey scale 16 bits per color

















The unique hexagon structure design, flat and firm







The back of the cabinet modules adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.













Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm







HD image brings you more perfect visual experience





The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor installation perfectly.

Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm



Fast installation, high precision and less weight





Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.



Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm



High IP grade and applicable to rainy weather







It is shown from the detecting data by third-party professional institutes: the protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments.

Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm









Brightness are adjustable











Be able to adjust the screen brightness(600-6000nits) based on ambient light changes, greatly reducing your opearating costs.

Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm



Support All Media Format and Display Mode






Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.

Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm



High Refresh Rate

The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.
High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727 6


Strict Aging Test

All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

High Brightness RGB LED Screen In Die - Casting Magnesium Alloy CE / UL SMD2727 7
control system


1. Synchronous System(contact sales if you would like the led display with Linsn or NovaStar or Other brand control system)

eg:MSD300+MRV300

2015 professional commercial advertising P8 outdoor SMD led display/led screen for fixed installation with high brightness and g2015 professional commercial advertising P8 outdoor SMD led display/led screen for fixed installation with high brightness and g

1. Input resolution: 1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)

2. Capacity: 1.3 million pixels. Supply voltage: 5V

3. Control method: USB interface.

Packing & shipping

6pcs ph4.81mm cabinet into 1pcs air flight case.

Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm

Sunrise P4.81 outdoor/indoor full color display for rent,cabinet Size500*1000*75mm



Working Diagram
Die-cast Aluminum 576mm*576mm Indoor P6 LED Screen/LED Display
