Place of Origin: | China |
Brand Name: | kailite |
Certification: | CE, FCC, ROHS |
Model Number: | p6 |
Minimum Order Quantity: | 2 Square Meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case; Flight Case |
Delivery Time: | 7-21 work days |
Payment Terms: | T/T, D/A, D/P, L/C |
Supply Ability: | 8000 square meters per month |
Pixel Pitch: | 6mm | Module Size: | 192mm*192mm |
---|---|---|---|
Physical Density: | 27777 Dots/sqm | Usage: | Outdoor |
Function: | Video | Color: | Full Color |
Cabinet Size: | 768mm*768mm | Driving Method: | 1/8 Scan |
Refresh Rate: | 1200Hz | Warranty: | 2 Years |
Life Time: | >100,000 Hours | ||
Highlight: | rgb led display,rgb led panel |

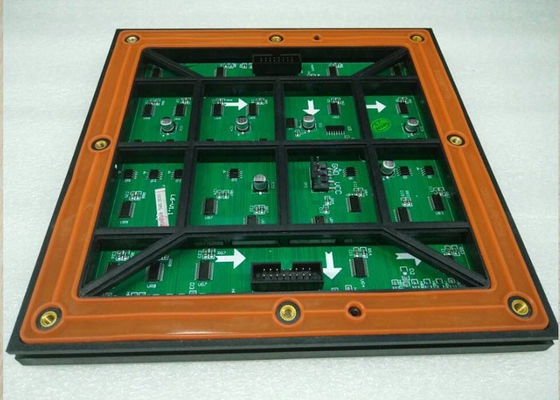

Outdoor Pixel Pitch 6mm SMD3535 Rgb Led Screen With Brightness More Than 6500cd
Quick Detail
1. SMD 3535 with white lamps
2. Mainly module size 192*192 or 384*192
3. One module have 32*32 or 64*32 lamps(resolution)
2. Waterproof and standard cabinet with fan to disspate heat quickly
4. It's adjust to all kind of weather
Specifications
Item P6 | |||
Main parameters | Technical parameters | UNIT | parameters values |
|
Pixel pitch | MM | 6 |
Panel size | MM | L192*H192 | |
Physical density | /㎡ | 27777Dots | |
Pixel Configuration | R/G/B | 1,1,1 | |
Driving method | Constan current 1/8 scan | ||
LED Encapsulotion | SMD | 3535 | |
Display resulotion | Dots | 32*32 | |
Moduel Power | W | 20 | |
|
Viewing Angle | Deg | H120V120 |
Option Distance | M | 6-70 | |
Maximum Power | W | 800 | |
Cabinet Size | MM | L768*H768 | |
Frame Frequency | Hz | ≥60 | |
Refresh Frequency | Hz | ≥1200 | |
Equilibrium Brightness | CD | ≥6500 | |
Operation Temperatuer /Humidity |
℃ | -30~+45/ 10%~95% |
|
Input Voltage | VAC | 220V±10%/110V±10% | |
Ingress Protection | Front:IP67;Back:IP65 | ||
Gray Scale/Color | ≥16.7M color | ||
Brightness Contral | Manual/Automatic | ||
Input Signal | RF/S-Video/RFB/etc | ||
Contral Systerm | PCTV+DVI video card+control card+fiber |
||
MTBF | HOURS | >5000 | |
Life Time | HOURS | >100,000 | |
Lamp Failure Frequency | <0.0001 |
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Trade term:
1.Payment term: T/T 30% deposit before production,the balance before delivery.
2.Packaging: Wooden case or flight case packing.
3.Port: Shenzhen,China.
4.Shipping freight are quoted according to your requests.
