Place of Origin: | China (mainland) |
Brand Name: | kailite |
Certification: | CE, FCC, ROHS |
Model Number: | p5 |
Minimum Order Quantity: | 2 Square Meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case; Flight Case |
Delivery Time: | 7-21 work days |
Payment Terms: | T/T, D/A, L/C, D/P |
Supply Ability: | 8000 square meters per month |
Pixel Pitch: | 5mm | Module Size: | 320mm*160mm |
---|---|---|---|
Physical Density: | 40000 Dots/sqm | Usage: | Indoor |
Function: | Video | Cabinet Size: | 640mm*640mm |
Driving Method: | 1/16 Scan | Refresh Rate: | 1200Hz |
Warranty: | 2 Years | Life Time: | >100,000 Hours |
Highlight: | rgb led display,rgb led panel |

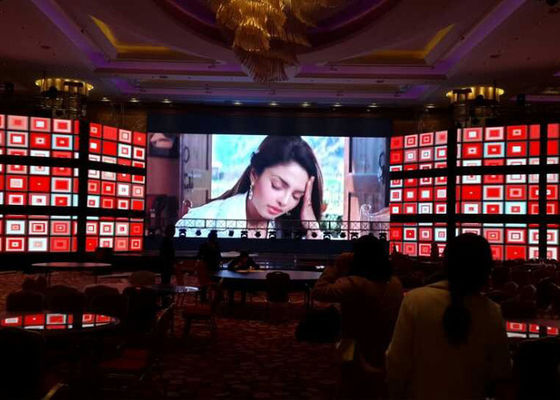

Custom Size P5 RGB LED Screen , Indoor SMD2121 LED Video Wall Screen
Quick Detail
1. New technical for video function led screen
2. It's a new styal of modensociety for all area indoor displays
3. Standard Cabinet 640*640mm(the specifucation is according to the size)
4. For smd It has a wide viewing angel with a good light, good color mixing and the advantages of high contrast
5. Generally it's use the wooden case to package
Description
1. For p5 indoor rgb led screen, it has high definition and soft brightness
2. we can see it in shopping malls, stations, church , exhibition show, meeting room, stage wall, stadiums and so on
3. they are running message for advertising or convey the lastes news
Features
1. High-resolution, 40,000 per square pixels at 4 meters to 100 meters away from the body of the screen visual distance for the best viewing experience, to a certain extent, and comparable LCD.
2. The wide viewing angle, wide viewing angle of 160 ° and a high degree of consistency of each light emitting tube, so you can get the same excellent image quality at any angle of this range.
3. The non-linear correction, the image clearer, stronger sense of hierarchy.
4. The seamless, patented Huisen kits are designed to alignment errors between the control module within plus or minus 0.1mm, easy to install, it can be made into any shape according to the needs of users.
Specifications
Item P5 | |||
Main parameters | Technical parameters | UNIT | parameters values |
Module Parameters |
Pixel pitch | MM | 5 |
Panel size | MM | L320*H160 | |
Physical density | /㎡ | 40000Dots | |
Pixel Configuration | R/G/B | 1,1,1 | |
Driving method | Constan current 1/16 scan | ||
LED Encapsulotion | SMD | 2121 | |
Display resulotion | Dots | 64*32 | |
Moduel Power | W | 20 | |
Display Parameters |
Viewing Angle | Deg | H120V120 |
Option Distance | M | 5-35 | |
Maximum Power | W | 700 | |
Cabinet Size | MM | L500*H500 | |
Frame Frequency | Hz | ≥60 | |
Refresh Frequency | Hz | ≥1200 | |
Equilibrium Brightness | CD | ≥1400 | |
Operation Temperatuer /Humidity |
℃ | -30~+45/ 10%~95% |
|
Input Voltage | VAC | 220V±10%/110V±10% | |
Ingress Protection | IP43 | ||
Gray Scale/Color | ≥16.7M color | ||
Brightness Contral | Manual/Automatic | ||
Input Signal | RF/S-Video/RFB/etc | ||
Contral Systerm | PCTV+DVI video card+control card+fiber |
||
MTBF | HOURS | >5000 | |
Life Time | HOURS | >100,000 | |
Lamp Failure Frequency | <0.0001 |
Wooden case packaging
