Home ProductsTaxi Top LED Display

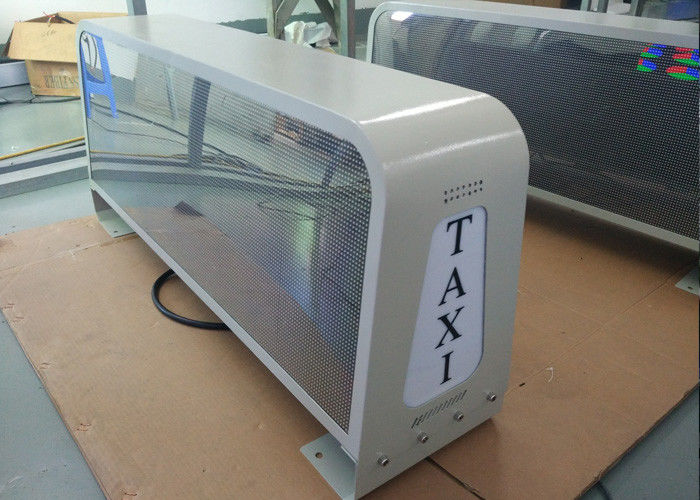

Pixel Pitch 5mm LED Taxi Top Advertising Signs Screen For Cars High Brightness

Pixel Pitch 5mm LED Taxi Top Advertising Signs Screen For Cars High Brightness

    • Pixel Pitch 5mm LED Taxi Top Advertising Signs Screen For Cars High Brightness
    • Pixel Pitch 5mm LED Taxi Top Advertising Signs Screen For Cars High Brightness
    • Pixel Pitch 5mm LED Taxi Top Advertising Signs Screen For Cars High Brightness
  • Pixel Pitch 5mm LED Taxi Top Advertising Signs Screen For Cars High Brightness

    Product Details:

    Place of Origin: China
    Brand Name: KAILITE
    Certification: CE FCC ROHS
    Model Number: P5

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: Negotiation
    Packaging Details: Wooden Case Packing
    Delivery Time: 7-15 work days
    Payment Terms: T/T, L/C, D/A, D/P,
    Supply Ability: 2000 pieces
    Contact Now
    Detailed Product Description
    Module Size: 320mm*160mm Module Resolution: 64*32
    Color: Full Color Screen Size: 960mm*320mm
    Maximum Power: 200w Led Lamp: Smd3528
    Driving Method: 1/16 Scan Constant Current Warranty: 2 Years
    Brightness: >6500 Cd/square Meters Refresh Rate: ≥1200Hz
    Brightness Control: Manual/Automatic Input Voltage  : 110-220V AC±10%
    Input Signal  : RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc

    6500cd / sqm High Brightness Pitch 5mm Taxi Top Led Screen With Good Price






    Specifications:

    led module parameter
    Technical parameters UNIT parameters Values
    Pixel pitch mm 5
    module size mm 320*160
    Physical density dots/㎡ 40000
    Pixel configuration RGB 1,1,1
    Driving method   Constant current 1/16scan
    Led lamp Smd 2121
    module resolution dots 64*32
    Module weight Kg 0.31
    Ingress protection   IP43
    Module consumption W 20
    led display parameter
    Viewing angle Deg. H120 V120
    Viewing distance m 5-35
    Maximum power W/㎡ 700w
    Frame Frequency Hz ≥60
    Refresh frequency Hz ≥1200
    Equilibrium brightness cd/㎡ ≥6000
    Working environment temperature 0C -30~60
    Display working voltage VAC 220V±15%/110V±15%
    Gray scale/color   ≥16.7M color
    Input signal   RF S-Video RGB etc
    Control system   Nova/Linsn control system
    Mean free error time hours >5000
    life time hours >100,000
    Lamp failure frequency   <0.0001


    Features:


    First, 3G or wifi control with USB port, GPS syetem. Double sides screen.



    Two, response time: the response time of the incandescent lamp is millisecond, and the response time of the LED lamp is nanosecond.



    Three, stability: 100 thousand hours, 20% following initial decay.



    Four, Performance: incandescent energy consumption is reduced by 80% when.



    Five, voltage: LED the use of low-voltage power supply, power supply voltage between 6-24V, according to the different products, so it is a more secure than the use of high voltage power supply, especially suitable for public places.


    Company advantages:
    1. 7 Years factory, We are led screen manufacturer for 7 years, we have rich experience in outdoor and indoor led display, quality is guaranteed
    2. Price advantage, we have stable supliers, and we have realize scale effect, so our cost ir more lower than some of our competitors and trade company and middle man
    3. Our sales is peofessional and will give your Detailed answers for your concerns, and we have a strong technical team for your special needs,such as OEM and ODM service
    4. Our Tenet: put coustomers in mind, Customer requirements are fundamental to us, we make different solutions accroding different requirements of customers

    5. Up to 60% client referral Rate


    Product advantages:



    Extremely high definition, High brightness, wide viewing angle, high brightness, soft, even and vivid colors.



    1.5mm pixel pitch realizes extremely high definition and provides amazingly good display effects.



    2. High brightness, 6800cd, enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.



    3. It features wide viewing angles, so real and beautiful colors will be shown from all directions.



    4. Uses SMD Led lamps to provide more beautiful and vivider pictures.






    After-sell Service:

    Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours

    we will reponse you in 24 houres if you have any question about the led screen,

    maintenance guidance and problem solution supplied in 48 hours.

    Providing customer with the loading program, so they can use as soon as they install the
    led screen,don't need to debug again

    Free technical training for how to use and handle the software.

    Customer satisfaction tracking report.

    FAQ:

    1. Except this model, are there any other models?
    yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
    For outdoor led screen we have p5 p6 p8 p10

    2. Are you factory? and your warranty?
    yes we are 7 years factory, 2 years warranty and lifetime maintenance

    3. What's the function of your led screen?
    It supports videos, flash, WAV/MIDI, PPT, images and so on

    4. What's your delivery time?
    Wthin 7-21 days after we receiving the deposit

    5. What's your package and shipping way?
    Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
