1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising

China 1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising      supplier
1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising      supplier 1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising      supplier 1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising      supplier

Large Image :  1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising

Product Details:

Place of Origin: Guangdong,China
Brand Name: Kailite
Certification: CE FCC ROHS
Model Number: P5 outdoor

Payment & Shipping Terms:

Minimum Order Quantity: 5SQM
Price: Negotiation
Packaging Details: Flight package and wood package
Delivery Time: ahout 20 days
Payment Terms: L/C, T/T
Supply Ability: 1500SQM/per mouth
Contact Now
Detailed Product Description
Item: PH5 Color: Full-color Real Pixels
Use Environment: Outdoor Pixel Pitch: 5mm
Module Size: 160*160mm Physical Density    : 40000dots/㎡
Pixel Configuration      : 1R1G1B LED Chip: SMD2727
Module Resolution: 32*32 Module Power: 25w
Recommended Viewing Distance: 5-35m Best Viewing Angle    : H: 120°; V:120°
Maximum Power Consumption: 900w Average Power Consumption: 480w
Cabinet Size      : W640×H640mm Standard Cabinet Resolution: 128*128

P5 LED Video Board 160*160mm colorfull 5mm led module 1R1G1B for advertising



Item P5
Color Full-color real pixels
Use environment Outdoor
Pixel pitch 5mm
Module size 160*160mm
Physical density 40000dots/㎡
Pixel configuration 1R1G1B
LED chip SMD2727
Module resolution 32*32
Module power 25w
Recommended viewing distance 5-35m
Best viewing angle H: 120°; V:120°
Maximum power consumption 900w
Average power consumption 480w
Cabinet size W640m×H640mm
Standard cabinet resolution 128*128
Driving method 1/8Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥6800cd
Operating temperature/Humidity -30℃~+45℃
Ingress protection Front:IP 67; Back:IP65
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >5000 hours
Life time >100,000 Hours
The rate <0.0002






Description:

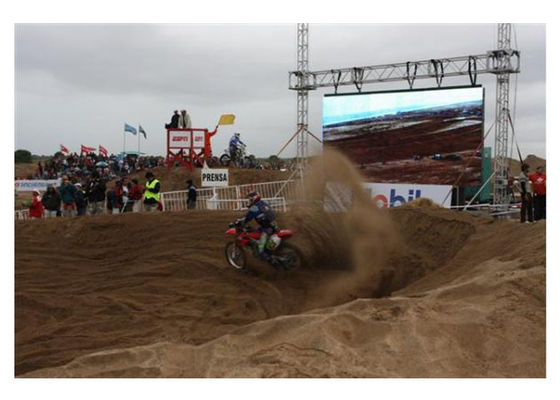

Used by Audio-Video Rentals companies, for service and staging purposes during event and shows of any
kind (eg. concerts, fashion shows, meetings). The Event and Entertainment Led Screens are the final
result of a long cooperation with a leading European Audio-Video Rental company. This equipment puts
together with the superior image quality of Display makes the Event Led Video Walls probably the
fastest assembling and the brightest in the world.



Competitive advantages:

1. We are led screen manufacturer for many years, quality is guaranteed.
2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level.
3. Professional sales and technical team of 15 people to ensure perfect results.
4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers.





1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising

1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising

1R1G1B Colorfull P5 LED Video Board 160 * 160mm For Commercial Advertising







After-sale service

We promise we provide 2 years warranty for free maintain for our products and full life tracking service.

1. During the warranty period, we will repair the equipment free of charge unconditionally if the problem is caused by product quality or production and installation problem.

2. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid.
