RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising

Good quality SMD Led Screen for sales
Good quality SMD Led Screen for sales
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising

China RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising supplier
RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising supplier RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising supplier

Large Image :  RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising

Product Details:

Place of Origin: Shenzhen, China(mainland)
Brand Name: Kailite
Certification: CE,FCC,ROHS ISO9001
Model Number: P10

Payment & Shipping Terms:

Minimum Order Quantity: 2 suqare meter
Price: Negotiation
Packaging Details: wooden case/ flight case packing
Delivery Time: 5--20 working days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 8000sqm per month
Contact Now
Detailed Product Description
Cabinet Material:: Iron IC: MBI5124
Power Supply: AC110-220V Driving Method: 1/2 Scan
Weight Of Cabinet: 30kg Refresh Rate: 2400hz

RGB Full Color SMD P10 LED Frame Display Waterproof Giant Outdoor Advertising LED Display

Product description:

P4,P5/P6/P8/P10 outdoor LED screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.

It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.



Technological Parameters:


Outdoor P10mm SMD3535 LED Display
Pitch/mmP10
Module size/mm160x160mm
Density of pixel/(dots/m2)10000
Pixel composition1R1G1B
Led encapsulationSMD3535
Resolution of module16x16
Optimum viewing distance≥10m
View angle / °140 H,120 V

Average power
consumption/W/M2

350
Max power consumption/W/M2700
Size of cabinet/mm960x960
Resolution of cabinet96x96
Weight of cabinet/kg55
Driving method1/2 scan constant current
Refresh rate Hz/S≥60
Luminance of white balance ≥6500 nits

 Operation of Environmental
Temperature/°C

 below 30 to above 50
 IP rating  Front,IP65;Rear,IP43
 Working vlotage  110-220 VAC/+/- 10%
 Grey scale/color  displaying colors≥16.7M(synchronized)
 Brightness adjustment

 256 levels of each color(manually),
100 levels of each color(automatically)

 Input signal  RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
 Control system  linsn(sending card,receiving cards and Hubs)
 Average of non-failure life  over 50,00h
 Life span  over 100,000h

Functionaless dot ratebelow 0.0001



Our Services


1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.

Product Applications:

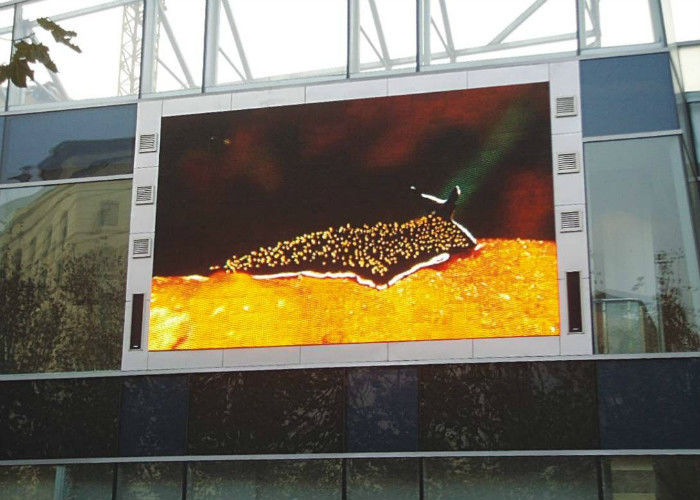

Outdoor Advertising LED Display is widely installed in street, square, shopping center, park, airport, rail way station, bus station, school playground, gymnasiums & stadium.

RGB Full Color SMD P10 LED Frame Screen Display Waterproof for Outdoor Advertising
