P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528

China P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528 supplier
P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528 supplier P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528 supplier P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528 supplier P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528 supplier

Large Image :  P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528

Product Details:

Place of Origin: Shenzhen/Guangdong/China
Brand Name: Kailite
Certification: CE/UL/RoHS/ISO9001
Model Number: P6 indoor fullcolor modules

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: Negotiation
Packaging Details: wooden packing /flightcase packing
Delivery Time: about 15 days
Supply Ability: 3000SQM/Month
Contact Now
Detailed Product Description
Module Size: 192*192mm Module Resolution: 32*32
Cabinet Size: 576*576mm Drive Mode: 1/16scan
Cabinet Resolution: 96*96 Module Weight: 0.304KG
Brightness: 1400cd/㎡ LED Chip: SMD3528

p6 indoor led module pixel pitch 6mm drive duty 1/16 scan module size 192*192mm



6mm pixel pitch,1R1G1B,27778 dots/sqm,P6 Indoor Full Color LED Display Screen creates

comfortable brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P6 Indoor Full Color LED Display Screen in many occasions,likeSports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc



Applications Occasions:



Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping

center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc


Parameters:
Module NO. Item Parameter
1 Module Model SH-P6(Indoor)
2 Pixel pitch 6mm
3 Module dimension 192mm*192mm
4 Module density 27780pixel/sqm
5 Module resolution 32*32dots
6 LED encapsulation SMD 3in1(3528)
7 Pixel configuration 1R1G1B

Cabinet 1 Dimension 576mm*576mm*80mm
2 Physical resolution 96*96dots
3 Module quantity 9PCS
4 Weight 9kg/PCS
5 Material Die-casting aluminum
6 Driving method Constant current+1/16 scan
7 Brightness ≥1200nits
8 Max power consumption 350W/SQM
9 Average consumption 200W/SQM
10 Frame frequency 60HZ
11 Refresh frequency >1200HZ
12 Gray level 1024~16384
13 Input Voltage AC100-120V AC200-240V
14 Power supply 5V/40A 1 PCS
15 Viewing angle(H/V) 120°/ 120°
16 viewing distance 5m-100m
17 Working environment Temperature: -20°C~ 60°C
Humidity:10%~90%RH
18 Control system Synchronous or Asynchronous Control system
19 Display function Videos
20 Certificate CE Certification (SGS)

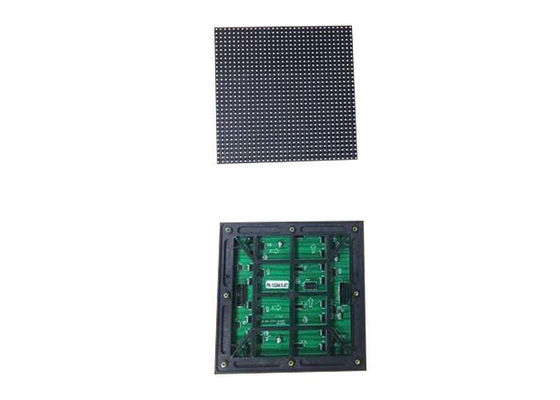

LED Module Picture:



P6 Indoor RGB LED Module Pixel Pitch 6mm Drive Duty 1/16 Scan Drive Mode SMD3528


Trade Terms:
1).Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity.

2).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days.

3).Sample can be deliveried within 3days.

4).Shipping port: Shenzhen, Mainland China.

5).Discounts are offered based on order quantities.

Features:

1.Cabinets are made of die-casting aluminium,can be spliced with no crack.For fixed use iron cabinet.


2.P2.5/P3/P3.91/P4/P5/P6 is optional for you.


3. SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.


4. Work normally without air conditioning for low power consumption.


5.Suitable for indoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.



Service:



Technical training

Our company will train the users based on the manual, system use guide and maintenance guide. The training include system use, system maintenance and equipment protection.



After-sales services modes:



A. Phone service:

Linso after-sales Services Department provides customers with 24 –hour- phone service. When you contact us, please let us know the following information:

1. Your name and phone number

2. Product model

3. Detailed fault information (if the fault could be presented by pictures, please takes pictures and sends them to us as possible as you can)

Our after-sales service engineers will offer technical support and guidance based on your description.



B. Real-time communication service:

Novastar after-sales service engineers could provide customer services through TM & E-mail & Skype, for example, sending the video files of software operation & graphic card setup by TM to show how to operate.



C. Remote control service:

Novasatr can operate the customer’s computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.



D. Post Service:

Under warranty, customers could send the defective components back to Novastar, we will repair them and return to you as soon as we can. Please refer to the time chart of our response to some main components fault.



E. On-site service:

We will send engineer to offer on-site service with your assistance upon your requirement.
