Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P10 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | P10 LED Display Panel Outdoor | Brightness: | ≥6000 Cd/sqm |
---|---|---|---|
LED Type: | SMD3535 | Screen Dimension: | Customized |
Color: | 1R1G1B | Defective Rate: | <0.0002 |
Highlight: | Pole Support LED Display Panel,Pole Support Outdoor Advertising Sign,Roadside LED Display Panel |

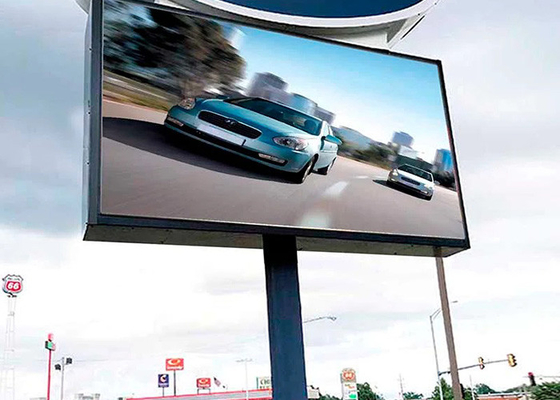

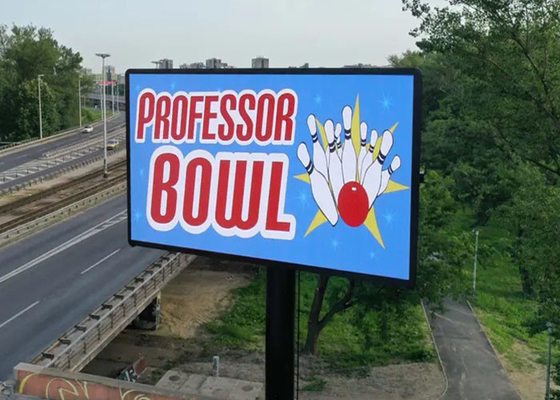

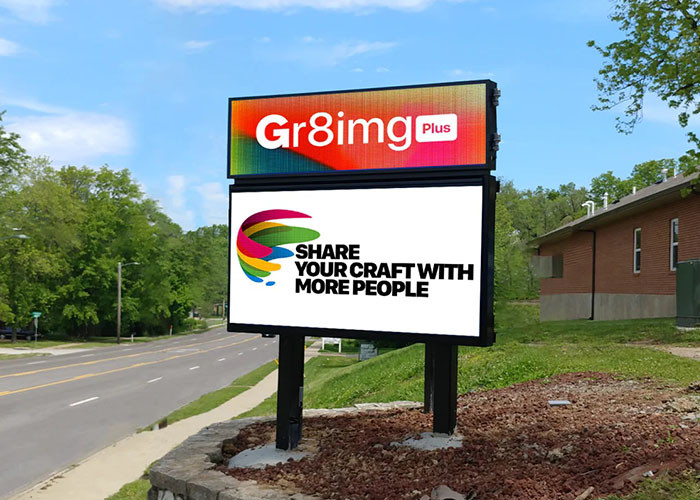

Pole Support P10 LED Display Panel Roadside Outdoor Advertising Sign
Pole Support P10 LED Display Panel Outdoor Advertising Sign Roadside
Quick details of P10 LED Display Panel Outdoor
1. Cabinet size: 960*960mm
2. Cabinet resolution: 96×96
3. Maintenance way: Rear
4. Physical density: 10000 dots/㎡
5. Cabinet material: iron/die-casting aluminum
Product Specification(P5 P10)
Item | P5 | P10 |
Pixel pitch | 5mm | 10mm |
Module size | 320*160mm | 320*160mm |
Module resolution | 64×32 | 32×16 |
Physical density | 40000 dots/㎡ | 10000 dots/㎡ |
LED type | SMD1921 | SMD3535 |
Cabinet size | 960×960mm | 960×960mm |
Cabinet resolution | 192×192 | 96×96 |
Maintenance way | Rear | Rear |
Best viewing distance | ≥5m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/8 Scan | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 |
Features of our P10 LED Display Panel Outdoor
1. IP65 protection, protect from dust and moisture.
2. Wide viewing angle(H: 140°; V:140°).
3. Waterproof design, keep working, reduce the failure rate of running in the rain
4. Long life span(>100,000 Hours).
5. Competitive factory price, with guaranteed quality.
Applications of LED Display Panel Outdoor
LED Display Panel Outdoor are used in various public places, you can find them everywhere, like highway, subway, shopping mall, exterior of stores, commercial center. most of them are used for advertising, signage, background.
After-sell Service:
1. 2 years quality guarantee for all parts.
2. Experienced engineers and technicians provide solutions to all kinds of question.
3. Providing free and spare accessories, such as power and data cables.
4. Free remote control debuggine serice if you need.
5. Installation guidance by experienced technicians.
FAQ:
1. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
2. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.
3. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
4. Are you a manufacturer or trading company?
We are a professional OEM/ODM manufacturer which has specialized in led display industry for more than 11 years.
5. What’s your control system? How is it?
Our most common used system is Novastar, famous brand and good quality.
