Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module

Customer Reviews
I have never seen a company which is so responsible for their customers like KAILITE, they are really care about me and my feelings, do good service Job that you can peace of mind

—— Robby

This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

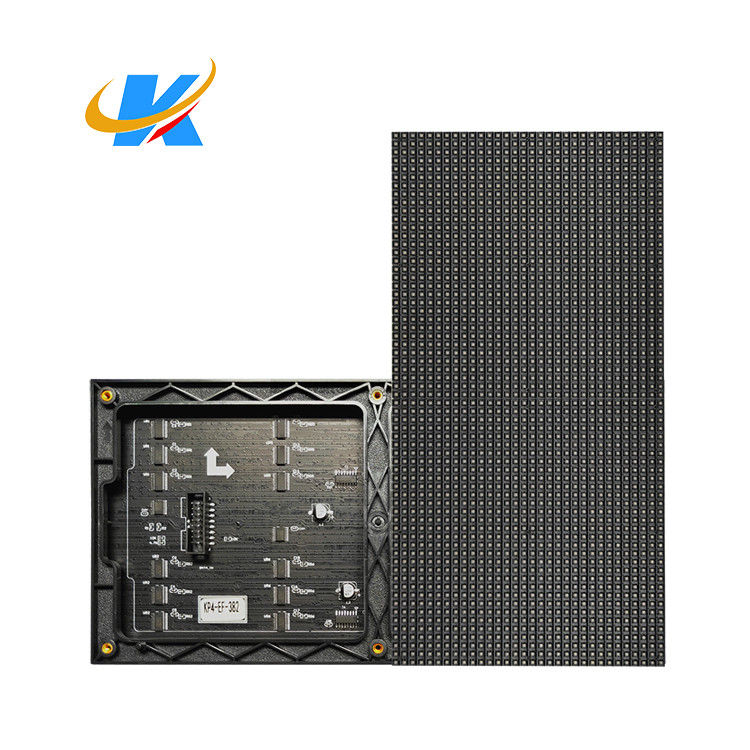

Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module


Large Image :  Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module

Product Details:
Place of Origin: Shenzhen Guangdong,China
Brand Name: Kailite
Certification: CE FCC ROHS
Model Number: P4 indoor led module
Payment & Shipping Terms:
Minimum Order Quantity: 76 pieces/1 carton
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: ahout 5 days
Payment Terms: L/C, T/T
Supply Ability: 2000SQM/per mouth
Detailed Product Description
Color: Full-color Real Pixels Use Environment: Indoor
Pixel Pitch: 4mm Module Size: 256*128mm
Physical Density: 62500dots/㎡ Pixel Configuration: 1R1G1B
LED Chip: SMD2121 Module Resolution: 64*32
Module Power: 25w Recommended Viewing Distance: >4m
Best Viewing Angle: H: 140°; V:140°
High Light:

25w RGB LED Module


SMD2121 RGB LED Module


1R1G1B Led Video Wall Module

P4 indoor full color led video display led module rgb led board panel led screen modules


1.personalized and complete solution for your case
2.factory price and good quality
3.convenient and fast installation ,easy maintenance
4.2 years wanrranty



Competitive advantages:

1. We are led screen manufacturer for many years, quality is guaranteed.
2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level.
3. Professional sales and technical team of 15 people to ensure perfect results.
4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers.


item P4
Color Full-color real pixels
Use environment Indoor
Pixel pitch 4mm
Module size 256*128mm
Physical density 62500 dots/㎡
Pixel configuration 1R1G1B
LED chip SMD2121
Module resolution 64*32
Module power 25w
Recommended viewing distance >4m
Best viewing angle H: 140°; V:140°
Maximum power consumption 800w
Cabinet size W512m×H512mm
Standard cabinet resolution 128*128
Driving method 1/16 Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥1200cd
Operating temperature/Humidity -40℃~+60℃
Ingress protection IP43
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7M(Synchronize)
Brightness control Manual/Automatic
Control system PCTV+DVI video card+control card+fiber
MBTF >5000 hours
Life Time >100,000 Hours
The rate <0.0001


Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module 0Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module 1Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module 2

Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module 3

Full Color 140° P4 1R1G1B SMD2121 25w RGB LED Module 4

After-sale service

We promise we provide 2 years warranty for free maintain for our products and full life tracking service.

1. During the warranty period, we will repair the equipment free of charge unconditionally if the problem is caused by product quality or production and installation problem.

2. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid.


LED display screen: are widely used in Airports, stations, ports, stock exchange halls, financial institutions, sports venues, exhibitions, shopping centers, command and control centers, advertising media, etc.
Expect: We would like to express our desire to establish relationship with you on the basis of quality and mutually benefit.
Company​: Founded in 2009 which is a professional led display screen manufacturer in production, R&D and sales.
Products and advantages: Series full-color LED display products for Indoor/Outdoor/Rental retail, Rental, Advertising, Sports and the Corporate sector, Pixel pitch from P1.2 to P10. Products have passed the relevant certification and sold to all over the world with outstanding quality and price advantage.

We are the China Base LED Displays or Billboards Manufacturer. We providing our customers with the most complete LED product line and the most up-to-date LED sign solutions in the Digital Sign industry.
If you Interested in Our Services Visit www.rgbledscreen.com / request-a-quote/ for details.
