| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4,P5, P8, P10 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Wooden case |
| Delivery Time: | 22-24 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000 square meters per month |
| Pixel Pitch: | 8mm 10mm | Module Size: | 320*160mm |
|---|---|---|---|
| LED Type: | SMD3535 | Cabinet Size: | 960*960mm |
| Cabinet Material: | Die Casting Aluminum | Video Frame Rate : | ≥60 Hz |
| Life Span: | 100000hours | Color: | 1R1G1B |
| High Light: | SMD3535 Outdoor Advertising Led Screen,960*960mm Outdoor Advertising Led Display,SMD3535 Led Billboard Advertising |
||
SMD3535 960*960mm Outdoor Advertising Led Screen P8 P10 Led Billboard
Outdoor HD Advertsing Led Screen SMD3535 960*960MM P8 P10 Full Color Led Billboard
Description of 960*960mm series of outdoor led screen
Outdoor LED display screen is highly waterproof, shockproof and lightning-proof, which can be controlled remotely and run normally even in thunderstorm weather.
Specifications of 960*960mm series of outdoor led screens
| Item | P5 | P8 | P10 |
| Pixel pitch | 5mm | 8mm | 10mm |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 64×32 | 40×20 | 32×16 |
| Physical density | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| LED type | SMD1921 | SMD3535 | SMD3535 |
| Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm |
| Cabinet resolution | 192×192 | 120×120 | 96×96 |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear | Rear |
| Best viewing distance | ≥5m | ≥8m | ≥10m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥6000nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of 960*960mm series outdoor led display
1. High brightness: adopts high brightness LED lamp, can keep bright picture effect in strong sunlight and ensure clear visibility of content.
2. High contrast: adopts high contrast LED lamp, more vivid colors and clearer pictures will be present to you.
3. High stability: Can cope with all kinds of bad weather.
4. High reliability: adopts high-quality LED lamps and efficient luminous driving circuit, which can ensure long-term stable use effect and reduce maintenance and repair costs.

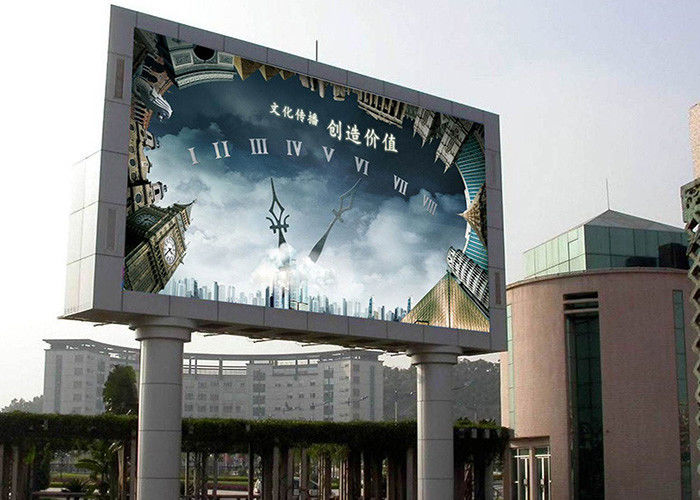

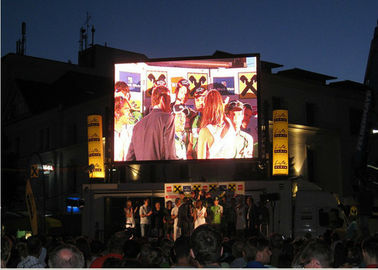

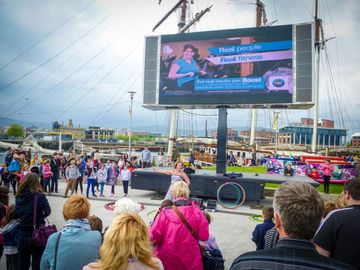

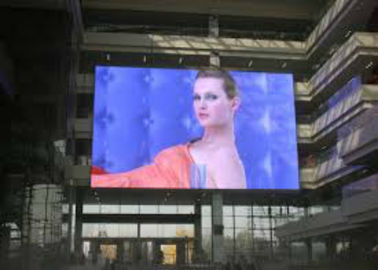

Application of 960*960mm series outdoor led screen
Mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports venues, image publicity, commercial real estate and other fields.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. we insist quality frist.We will check the quality of products in every link of production.
3. Good service.
4. Cost-effective .We will provide you factory direct price.
After-sell Service:
1) A two-year warranty.
2) Under normal use, we will be responsible for any damage.
3) Free remote control debuggine serice if you need
4) Providing customer with the loading program for help installation led screen.
FAQ:
1.Q: I want to have an sample, can you provide?
yes sure.
2.Q: What is the warranty of your led display?
A: 2 years for all parts of led screen.
3:Q: What is your post-sale service?
We will offer instructions to guide you on installation, you can also contact us to have support. we will tune the processor for you before delivery.
4. How can we guarantee quality?
Always product a pre-production sample before mass production and do final inspection before shipment for every order.
5. What's the lead time for mass order?
Normally, it takes about 20-35 days, depends on the order quantity.
